B-114
Procedure of initial setting (Continued)
Step No. Do This
2

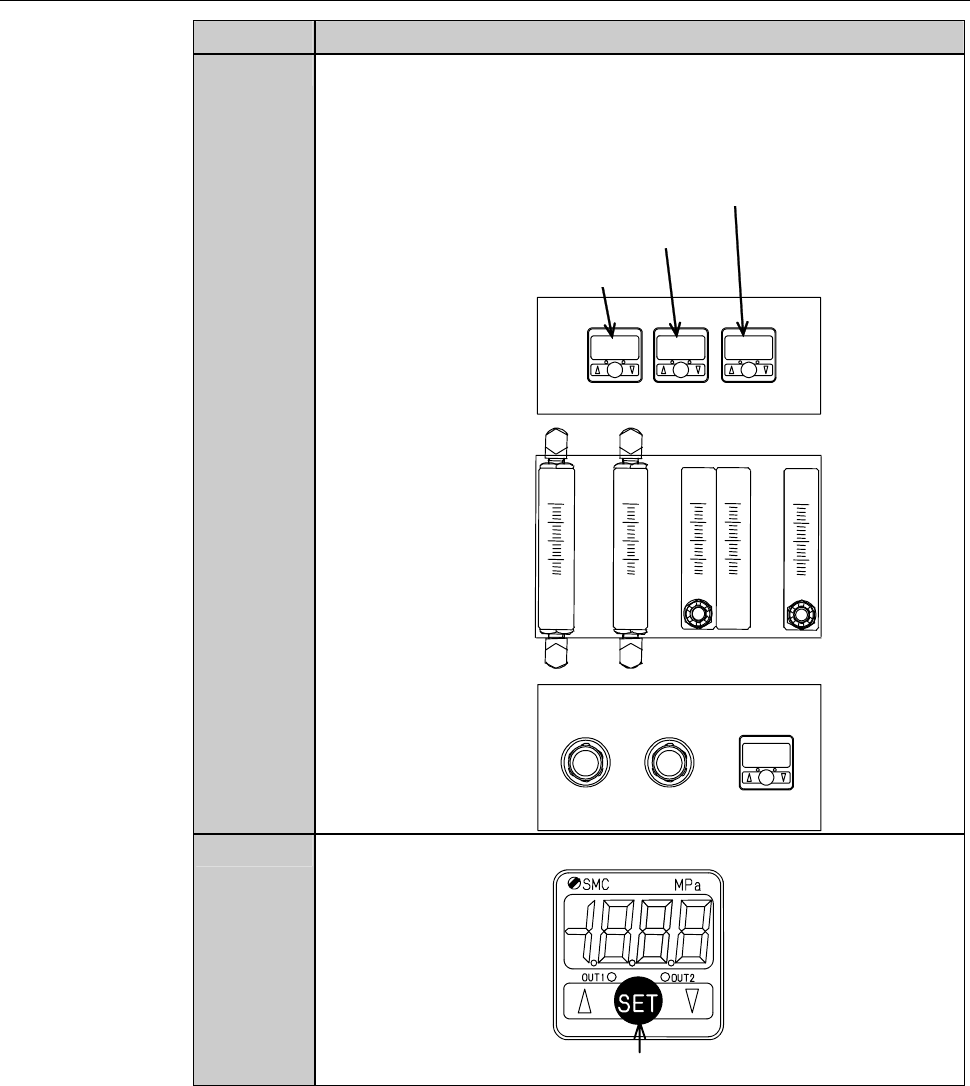

Check the position of the pressure sensor to be adjusted.
- Every pressure sensor is in the "measurement mode".
- Each pressure sensor reads the current supply pressure of
utilities.
ÿ
Air pressure sensor
Clean air pressure sensor
Deionized water pressure sensor
3
Press the SET button for at least two seconds.
SET button
B-115
Procedure of initial setting (Continued)
Step No. Do This
4

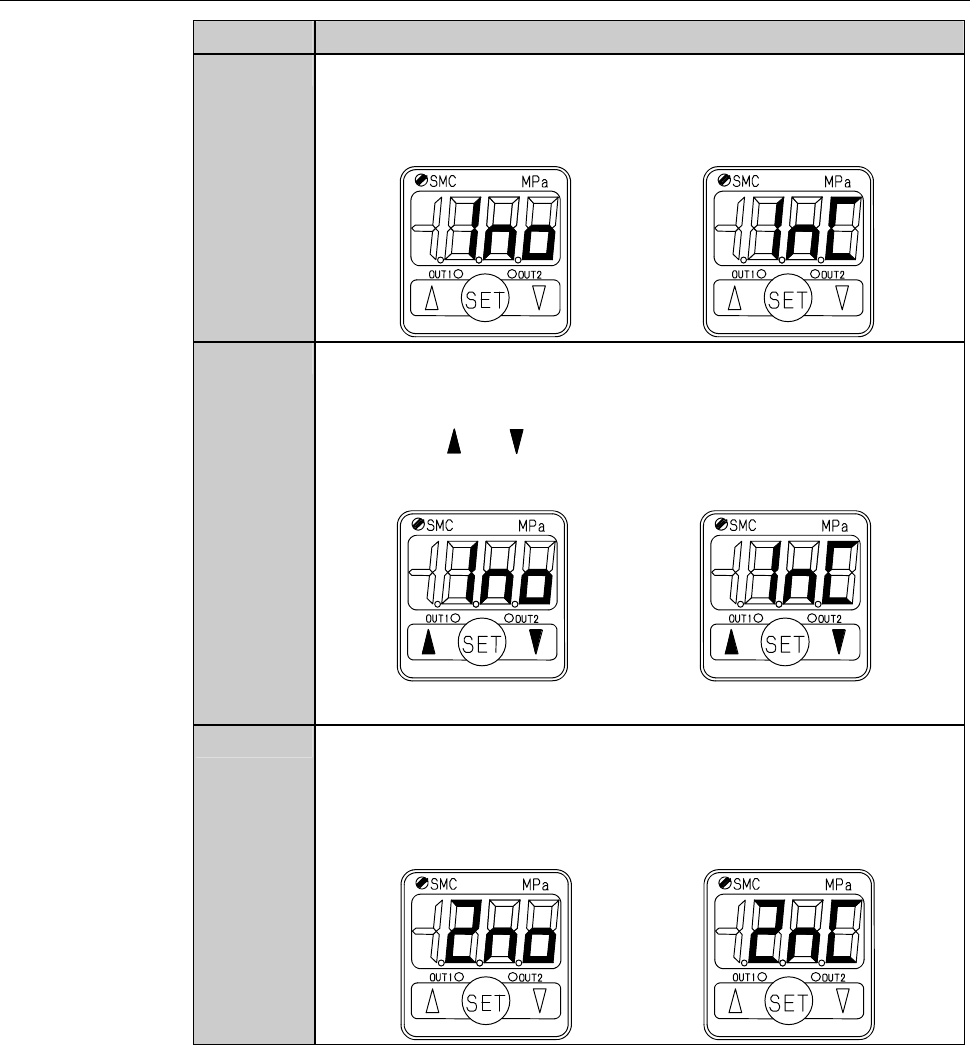

The display of the sensor has changed to the "OUT1 output
pattern setting" mode.
[Positive pressure] [Negative pressure]
5

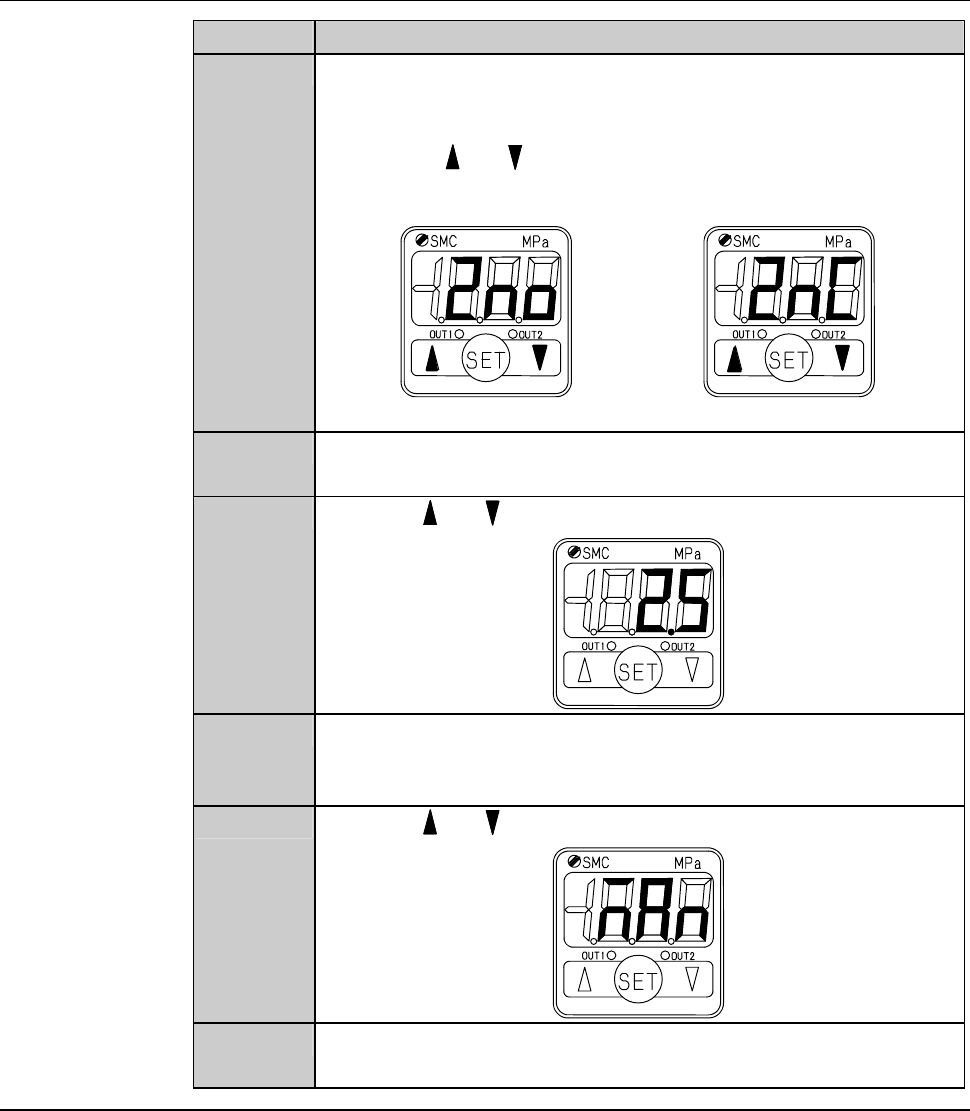

Make sure that the reading is "normal open" for a positive
pressure sensor or "normal close" for a negative pressure sensor.
- When the reading is not proper,
Press the or button to change the reading.
[Positive pressure] [Negative pressure]
Normal open Normal close
6
Press the SET button to finalize the setting.
- The display has changed to the "OUT2 output pattern setting"
mode.
[Positive pressure] [Negative pressure]
B-116
Procedure of initial setting (Continued)
Step No. Do This
7
Make sure that the reading is "normal open" for a positive
pressure sensor or "normal close" for a negative pressure sensor.
- When the reading is not proper,
Press the or button to change the reading.
[Positive pressure] [Negative pressure]
Normal open Normal close
8
Press the SET button to finalize the setting.
- The display has changed to the "response time setting" mode.
9
Press the or button to set the reading at 2.5 ms.
10
Press the SET button to finalize the setting.
- The display has changed to the "automation/manual setting"
mode.
11
Press the or button to set the manual mode.
12
Press the SET button to finalize the setting.
- The display has returned to the "measurement" mode.
Continued in the next section.
