B-124
Procedures for adjusting the air pressure sensor (Continued)
Step No. Do This
2

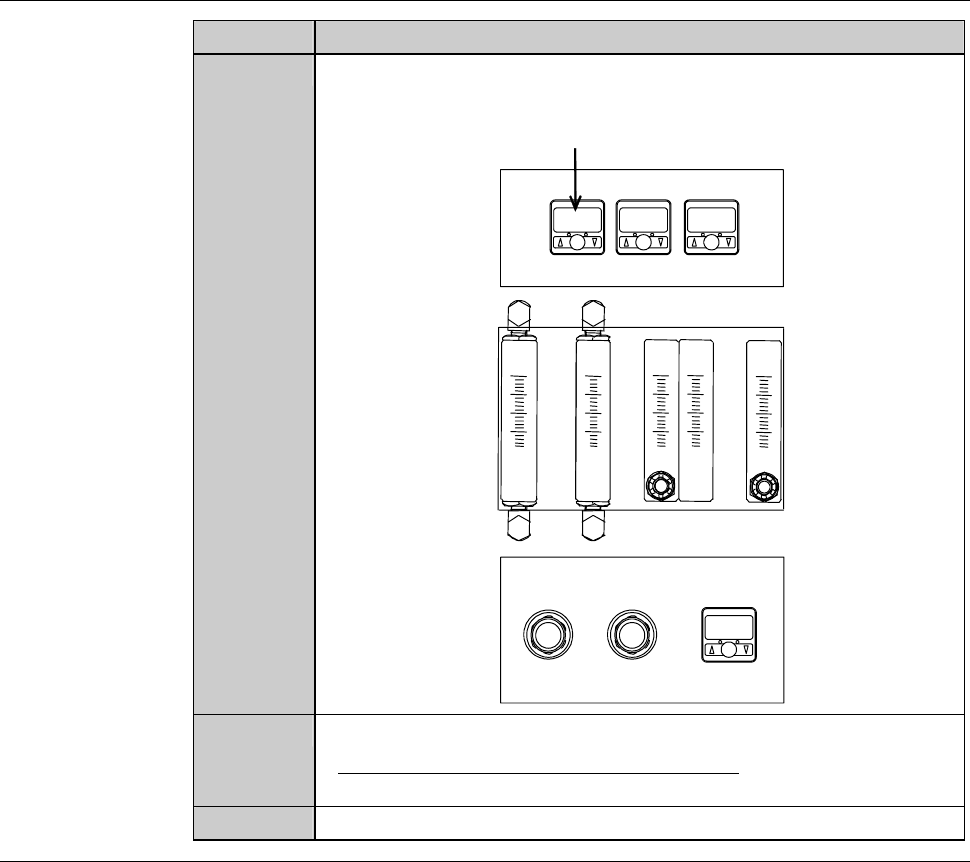

Make sure that the air pressure sensor reading is approximately
0.5MPa as the current supply pressure.
ÿ
Air pressure sensor
3
Adjust the pressure sensor to 0.4MPa.
- For the adjustment of the pressure sensor;
See the section 4-1 of this chapter, [Pressure Sensor].
4
Reinstall the cover [U].
Continued in the next section.
B-125
4-2-2. Checking operation of the air pressure sensor
Procedures for checking operation of the air pressure sensor
CAUTION
When you perform maintenance with the outer cover removed,
observe the following precaution. If you stand the removed outer
cover against the machine, you may receive injury by the cover if it is
toppled by the earthquake or like that.
When you take off the outer cover for maintenance purposes, store it
sufficiently away from the working area.
CAUTION
If the air supply is shut off during spindle rotation, the spindle seizes
up. Therefore, be sure to stop spindle rotation before shutting off the
air supply.
NOTICE

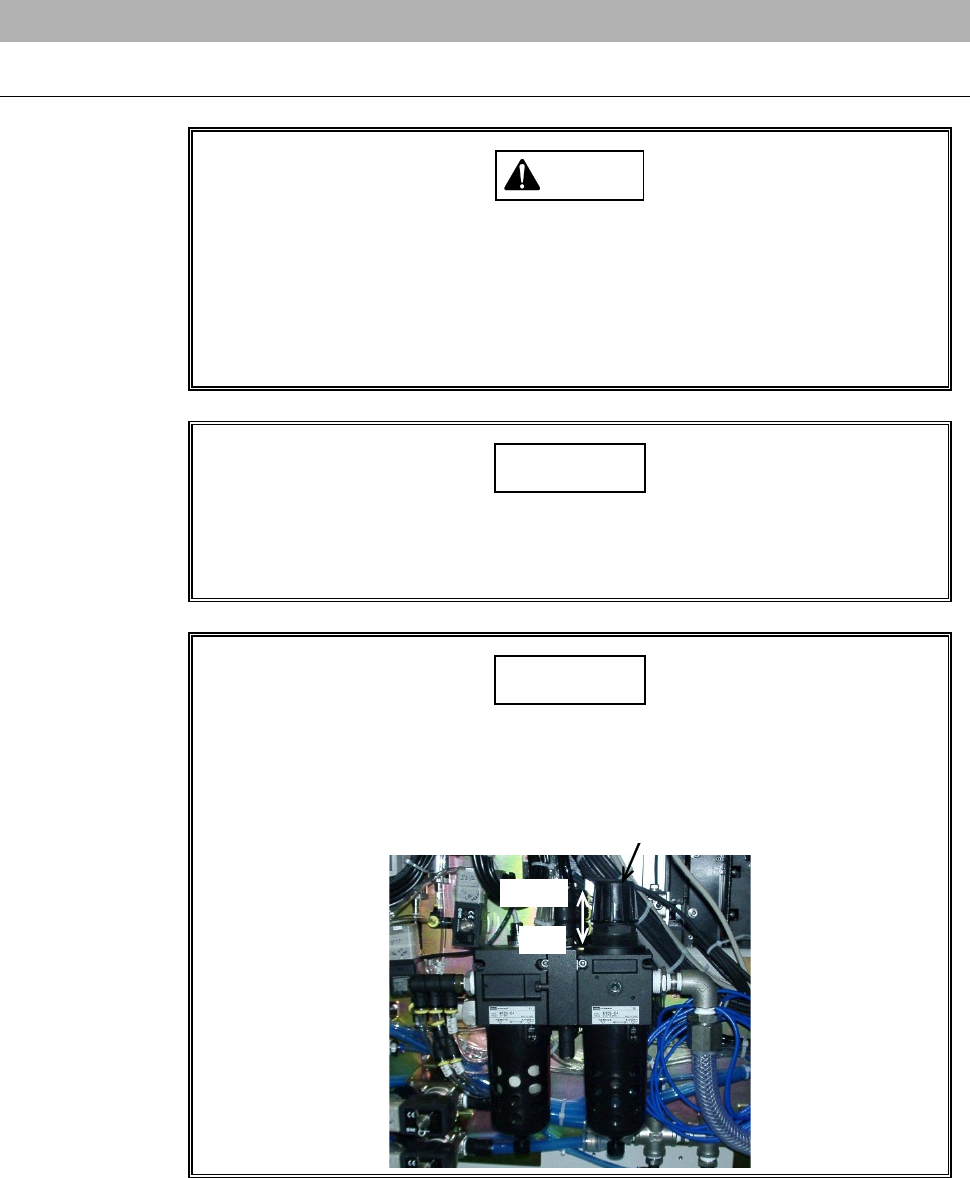

When you rotate the regulator knob, first raise the knob to unlock it.
After you finish necessary work, press down the knob to properly lock
it.
Regulator knob
Unlock
Lock
B-126
Procedures for checking operation of the air pressure sensor (Continued)
Step No. Do This
(Continued from the previous section)
1
Wear the protective gloves.
2
Verify that the spindle is completely stopped.
3

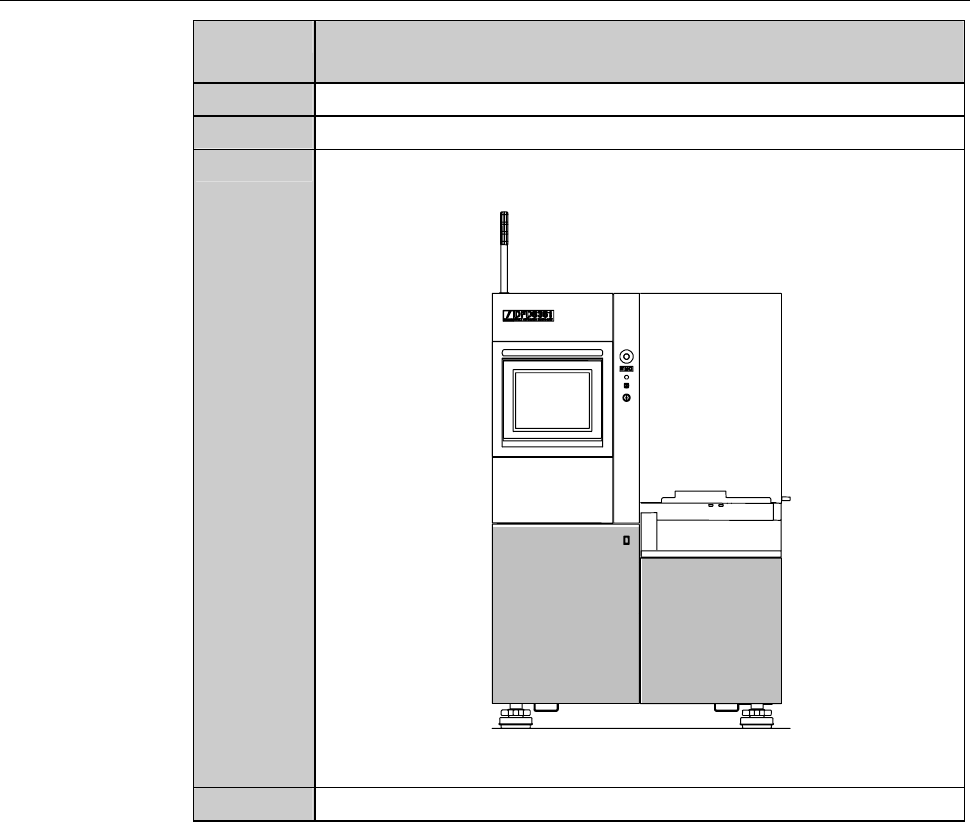

Remove the outer cover [A] and [B].
FRONT SIDE
[B][A]
4
Store the outer cover sufficiently away from the working area.
