4-3. Setting a Monitor Value of Clean Air Pressure
Procedures for setting monitor value of clean air pressure
CAUTION
When you perform maintenance with the outer cover removed,
observe the following precaution. If you stand the removed outer
cover against the machine, you may receive injury by the cover if it is
toppled by the earthquake or like that.
When you take off the outer cover for maintenance purposes, store it
sufficiently away from the working area.
Step No. Do This
1

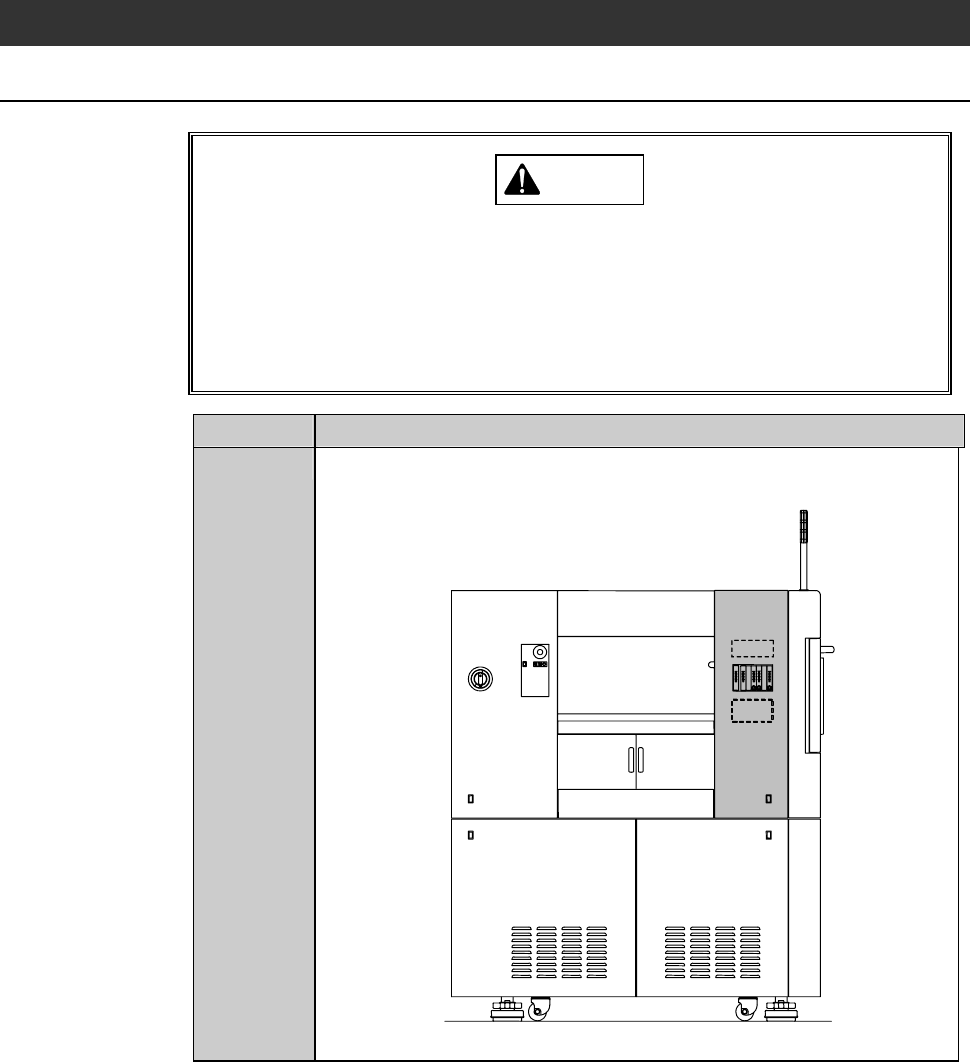

Remove the cover [U]. The store it sufficiently away from the
working area.
[U]
LEFT SIDE
B-129
Procedures for setting monitor value of clean air pressure (Continued)
Step No. Do This
2

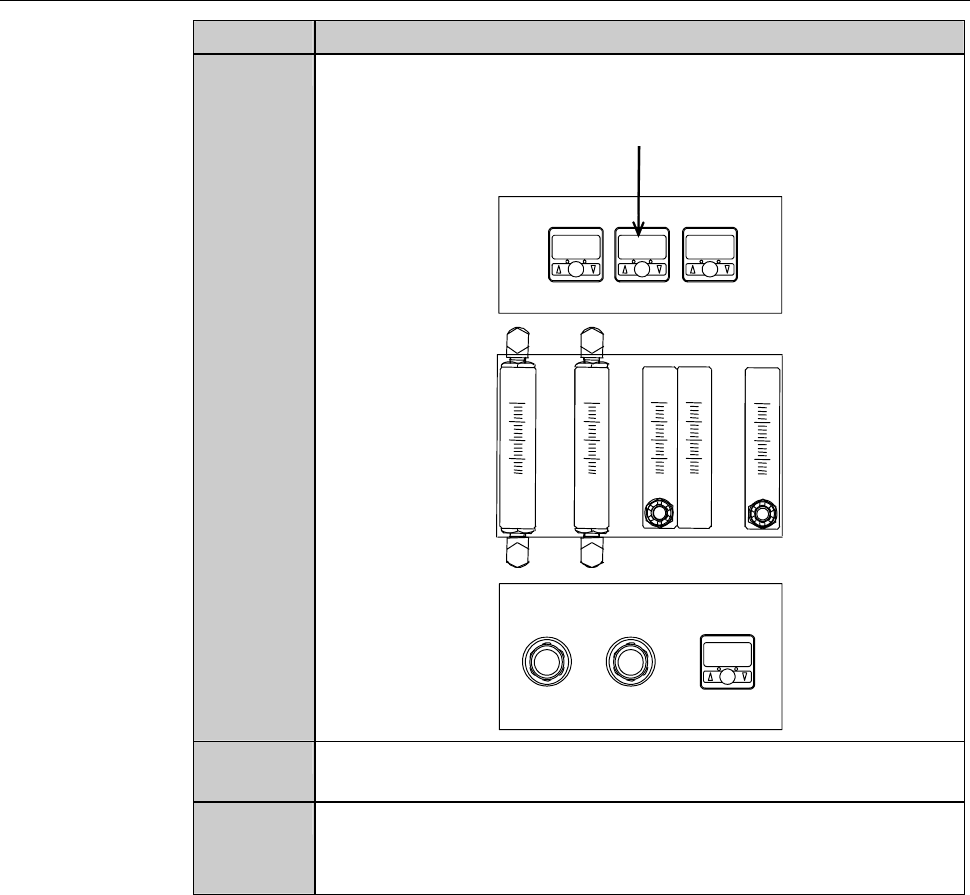

Make sure that the clean air pressure sensor reading is
approximately 0.5MPa as the current supply pressure.
ÿ
Clean air pressure sensor
3
Press the <F6> button on the MAIN MENU screen [screen 0.0].
- PASSWORD screen is called up.
4
Type the user password and press the <ENTER> button.
- The MACHINE MAINTENANCE screen [screen 6.0] is called
up.
B-130
Procedures for setting monitor value of clean air pressure (Continued)
Step No. Do This
5
Press the <F6> button on the MACHINE MAINTENANCE
screen [screen 6.0].

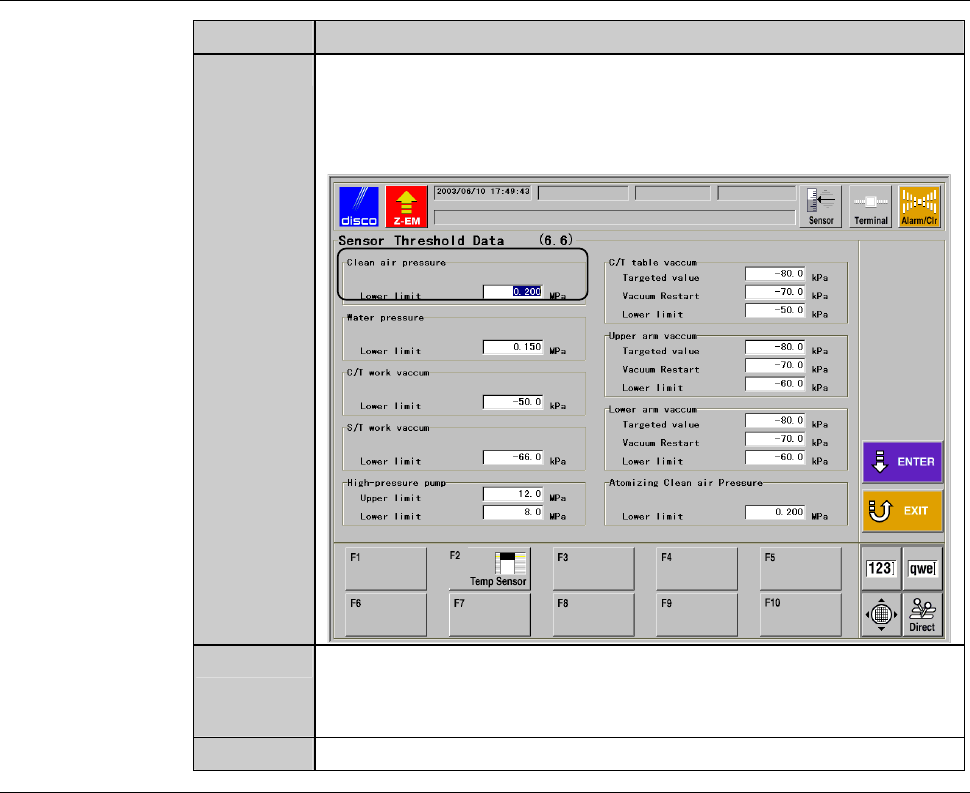

- The SENSOR THRESHOLD DATA screen [screen 6.6] is
called up.
6
Set "0.200MPa" as the lower limit of Clean air pressure, and then
press the <ENTER> button.
- The machine updates the data.
7
Reinstall the cover [U].
