5. Adjusting Utilities for Spinner Atomizing Nozzle
[Optional Accessory]
Summary of this section
This section describes how to adjust the air pressure of clean air and flow rate
of cleaning water of spinner atomizing nozzle in the machines which
incorporates the atomizing nozzle as an optional accessory.
Safety precautions for utility adjustment of spinner atomizing nozzle
WARNING
- In the digital I/O check procedures, touch panel buttons except for
function buttons are inoperative.
The personnel performing digital I/O checkout must bear this in
mind and exercise due care to ensure safety.
- In the digital I/O check procedures, the operation command for
solenoid valves and etc. can be forcibly turned ON and OFF by the
function buttons. In some cases, therefore, a cylinder may be
invoked to operate.
Ensure that no person other than the maintenance personnel
touches the machine during this procedure.
- If any touch panel control is inadvertently activated during
maintenance or inspection, unexpected machine operation may
cause death or serious injury.
While you don't use the touch panel, press the Disco's logo button
located at the upper left of the screen in order to lock up and
deactivate the touch panel.
CAUTION
When you perform maintenance with the outer cover removed,
observe the following precaution. If you stand the removed outer
cover against the machine, you may receive injury by the cover if it is
toppled by the earthquake or like that.
When you take off the outer cover for maintenance purposes, store it
sufficiently away from the working area.
B-138
Procedures for adjusting utilities of spinner atomizing nozzle
Step No. Do This
1
Remove the cover [U]. The store it sufficiently away from the
working area.
[U]
LEFT SIDE
2
Using the I/O CHECK screen, discharge the mixed fluid of clean
air and cleaning water from the spinner atomizing nozzle.
- For I/O CHECK screen;
See the section C-4-1, [I/O Check].
B-139
Procedures for adjusting utilities of spinner atomizing nozzle (Continued)
Step No. Do This
3

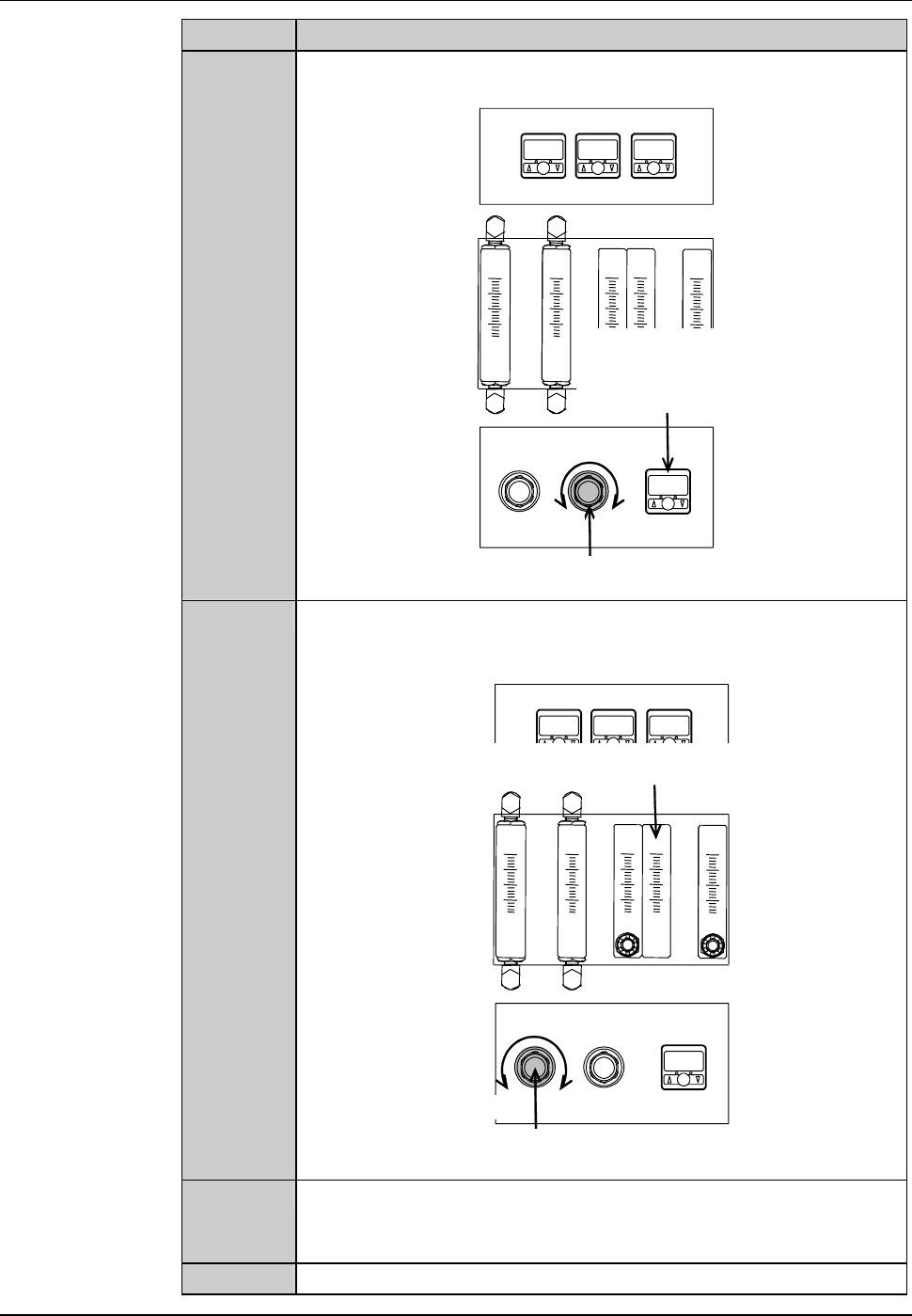

While checking the puressure gauge of clean air, turn the
adjustment knob to adjust the pressure to approximately 0.4MPa.
ÿ
Increase
Decrease
Air pressure adjustment knob for spinner atomizing
nozzle clean air [Optional accessory]
Air pressure sensor for
spinner atomizing nozzle
clean air
[Optional accessory]
4
While checking the flowmeter of cleaning water, turn the
adjustment knob to adjust the flow rate to approximately
200 ml/min.
Increase
Decrease
Spinner atomizing nozzle cleaning water
flowmeter [Optional accessory]
Spinner atomizing nozzle cleaning water
adjustment knob [Optional accessory]
5
Using the I/O CHECK screen, stop discharge of the mixed fluid
of clean air and cleaning water from the spinner atomizing
nozzle.
6
Reinstall the cover [U].
