C-12 2-2-2. Verif ying FLANGE DRESSING screen data Procedures for verify ing FLANGE DRESSIN G screen data W ARNING If the <F1> but ton is pr essed from the ENGIN EERING MAINTENANCE scr een [screen 7. 0], the chuck …
C-11
2-2-1. Replacing the chuck table
Procedures for replacing the chuck table
For conditioning purposes, replace the currently installed chuck table with the
chuck table for dressing.
Step No. Do This
1
Carry out the setup operation.
- For the setup operation;
See the section B-7, [Setup] of the Operation Manual.
2
Call up the MACHINE MAINTENANCE screen [screen 6.0].
3
From the MACHINE MAINTENANCE screen [screen 6.0],
press the <F1> button to call up the CHANGE FRAME SIZE
screen [screen 6.1].
4
Make sure that the spindle rotation and all axes stop.
5
If the wheel coolant water is ON, press the <Cutting Water>
buttontoturnitOFF.
6
From the CHANGE FRAME SIZE screen [screen 6.1], press the
<F3> button to turn OFF the vacuum of chuck table.
7
Open the front arm section cover.
8
Remove the chuck table.
9
Set the chuck table for dressing on the table base.
10
Verify the chuck table position.
11
Turn ON the vacuum system by pressing the <F3> button to
secure the chuck table.
- For the chuck table replacement procedure;
See the section B-1, [Chuck Table Replacement].
- For the MACHINE MAINTENANCE screen [screen 6.0];
See the section B-6-1 of the Data Maintenance Manual.
12
Close the front arm section cover.
13
Press the <System Initial> button to effect system initialization.
14
If any blade is installed over the Z1- and Z2-axis, remove them.
- For the blade removal procedure;
See the section B-6, [Blade Maintenance] of the Operation
Manual.
Continued in the next section.
C-12

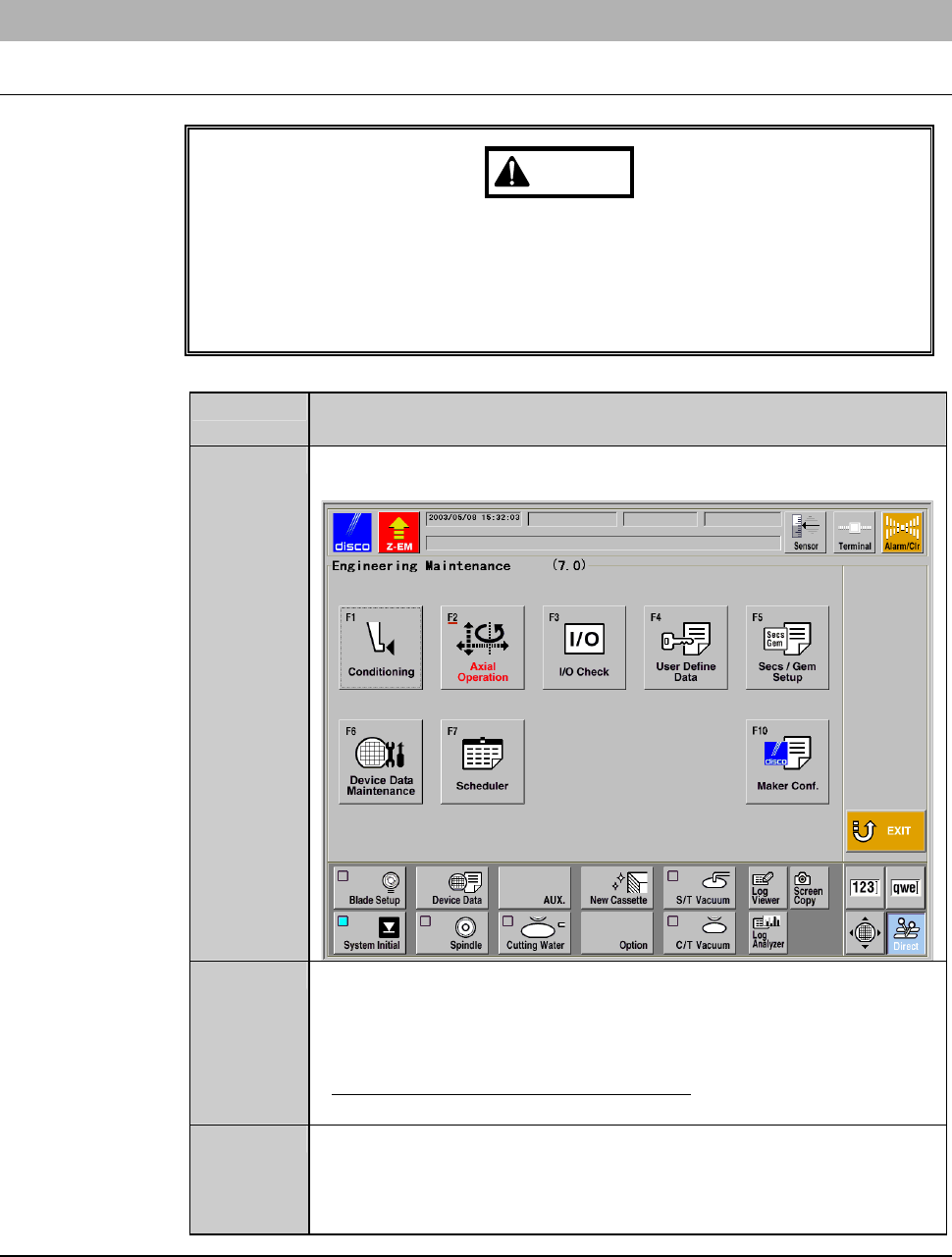

2-2-2. Verifying FLANGE DRESSING screen data
Procedures for verifying FLANGE DRESSING screen data
WARNING
If the <F1> button is pressed from the ENGINEERING
MAINTENANCE screen [screen 7.0], the chuck table for dressing
automatically moves to under the spindle. If you place your fingers or
hands in the drive section, they may be caught or cut off.
Do not position your fingers and hands in the drive section.
Step No. Do This
(Continued from the previous section)
1
Call up the ENGINEERING MAINTENANCE screen
[screen 7.0].
2
Press the <F1> button.
- The chuck table then moves to under the spindle.
- The wheel cover opens.
- The FLANGE DRESSING screen [screen 7.1] is displayed.
- For the FLANGE DRESSING screen;
See FLANGE DRESSING screen [screen 7.1] in the next page.
3
Confirm the data displayed on the FLANGE DRESSING screen
[screen 7.1].
- To change the data setup, enter desired data with numeric
buttons and then press the <ENTER> button.
Continued in the next section.
C-13
When you abort the verifying procedures
WARNING
If the <EXIT> button is pressed from the FLANGE DRESSING
screen [screen 7.1], the chuck table automatically moves to the origin
position (right). If you place your fingers or hands in the drive section,
they may be caught or cut off.
Do not insert your fingers or hands in the drive section.
To abort the procedures of verifying screen data, press the <EXIT> button.
- Pressing the <EXIT> button cancels any edits on the data setup and causes
the chuck table (X-axis) to return to the origin (zero-point position).
- The display returns to the ENGINEERING MAINTENANCE screen
[screen 7.0].

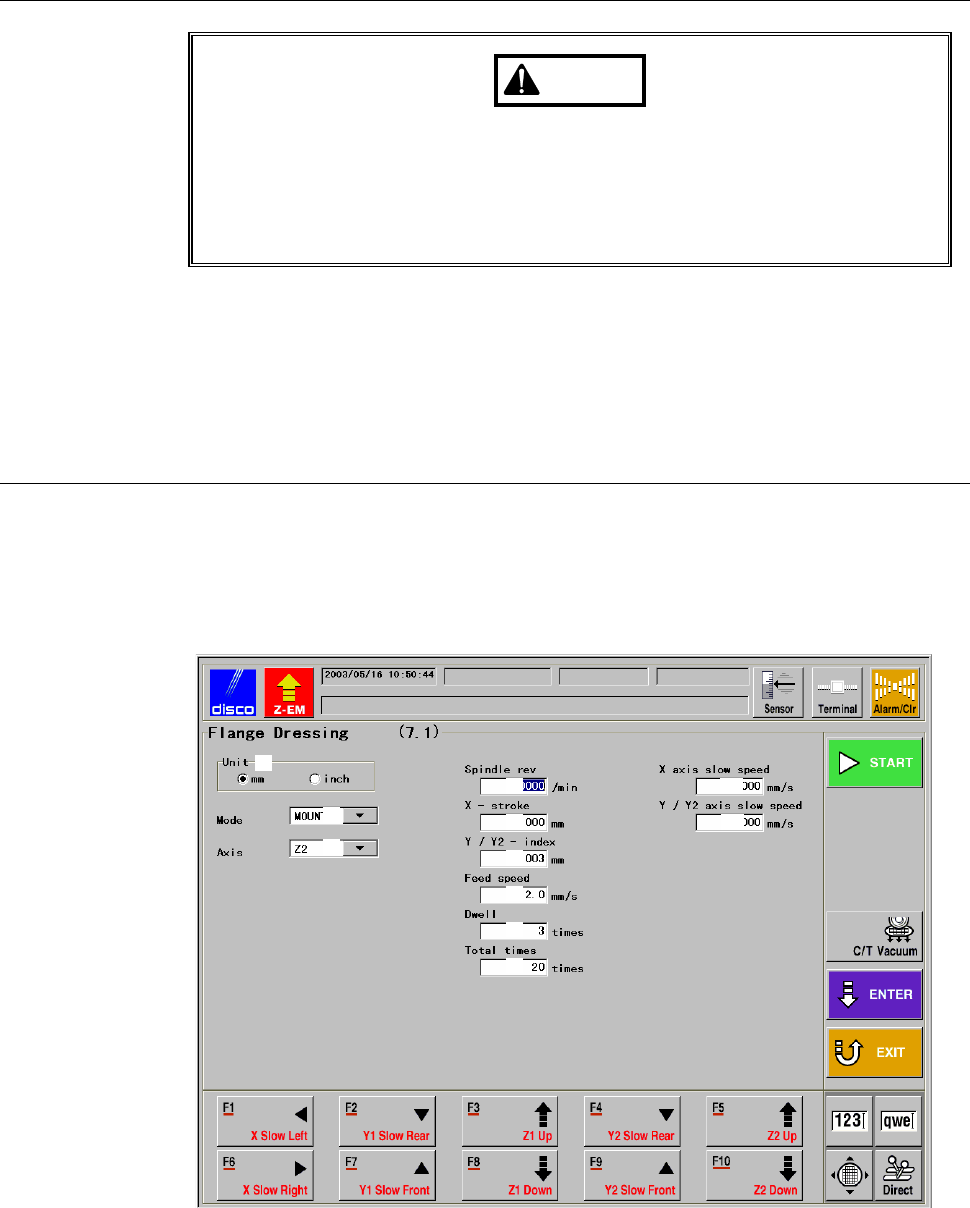

FLANGE DRESSING screen [screen 7.1]
This screen is used to setup data for performing flange/wheel mount
conditioning and execute conditioning operation.
The screen below is an example data setup.
[Screen]
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10]
[11]
