A-24 Cassette stage [Standard speci fication cassett e] On the casse tte stage, there are the cassette blocks which pre vent the cassette from moving off the setting position. Each cassette block corr esponds to differen…
A-23
2-7. Elevator Section
Elevator section component names
The elevator section consists of the following components.
Linear guide
Ball-bearing leadscrew
FRONT
AC servomotor
Cassette stage
Elevator section mechanism
The elevator section is structured as follows:
Driving source An AC servomotor and ball-bearing leadscrew
combination moves the cassette stage up and down.
Workpieces in the cassette are loaded or unloaded by
the push-pull arm.
A-24
Cassette stage
[Standard specification cassette]
On the cassette stage, there are the cassette blocks which prevent the cassette
from moving off the setting position.
Each cassette block corresponds to different cassette type.
The illustration below shows the relationship between the cassette blocks and
cassette types.
2-6-1 cassette
2-8 cassette
2-6 cassette
2-5-1 cassette
Cassette stage top surface
2-8 cassette
300 mm 13slot standard cassette
[DFD6351] [DFD6361]
A-25
Cassette stage (Continued)
[Kinematic specification cassette (only supported by DFD6361)]

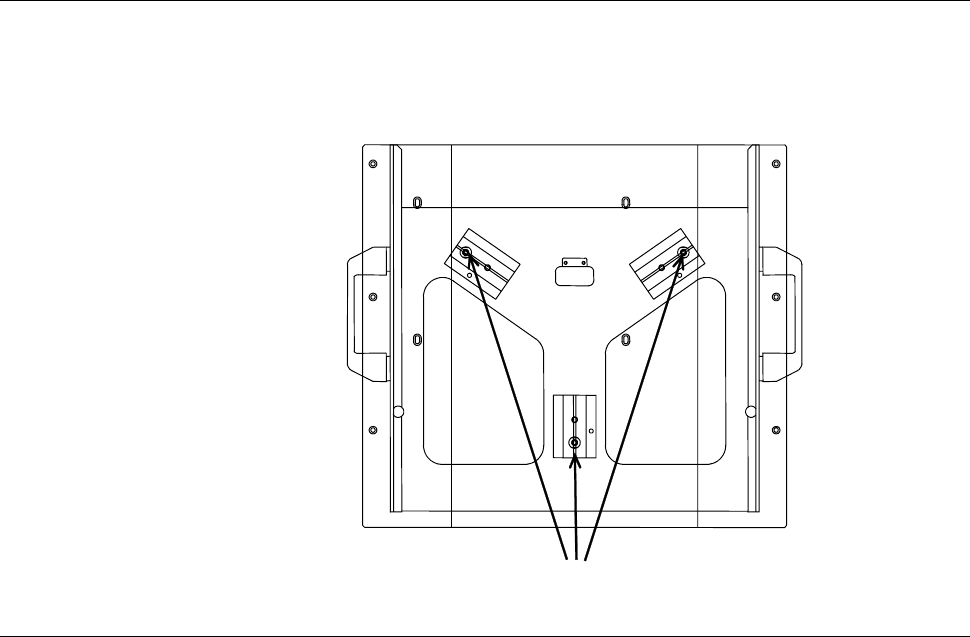

On the cassette stage, there are the kinema pins which prevent the cassette
from moving off the setting position.
ÿ
Kinema pin
