1-1. Cleaning the Non-Contact Setup Sensor
(Detection Surface) [Optional Accessory]
Operation flow
The procedure for cleaning the non-contact setup sensor (detection surface)
consists of the following steps.
1-1-1 Calling up the NCS SENSOR CLEANING screen [screen 4.8]
1-1-2 Cleaning the non-contact setup sensor
1-1-3 Cleaning the non-contact setup sensor with abrasives
[Optional accessory]
1-1-4 Adjusting the non-contact setup amplifier
1-1-5 Completion of cleaning the non-contact setup sensor
E-5
Safety items for cleaning the non-contact setup sensor (detection surface)
WARNING
If any touch panel control is inadvertently activated during
maintenance or inspection, unexpected machine operation may
cause death or serious injury.
While you don't use the touch panel, press the Disco's logo button
located at the upper left of the screen in order to lock up and
deactivate the touch panel.
NOTICE
Neither safety goggles, protective gloves, stepstools, flashlights nor
alcohol, all of which are necessary for maintenance work, are not
supplied with the machine. Use what are furnished in your factory or
what comply with your factory's standards.
Before cleaning
Have on hand the following items for cleaning the non-contact setup sensor.
Cotton swab
Alcohol
E-6
1-1-1. Calling up the NCS SENSOR CLEANING screen
[screen 4.8]
Procedures for calling up the NCS SENSOR CLEANING screen [screen 4.8]
Step No. Do This
1
Stop the spindle rotation.
2
Turn OFF the wheel coolant water supply.
3

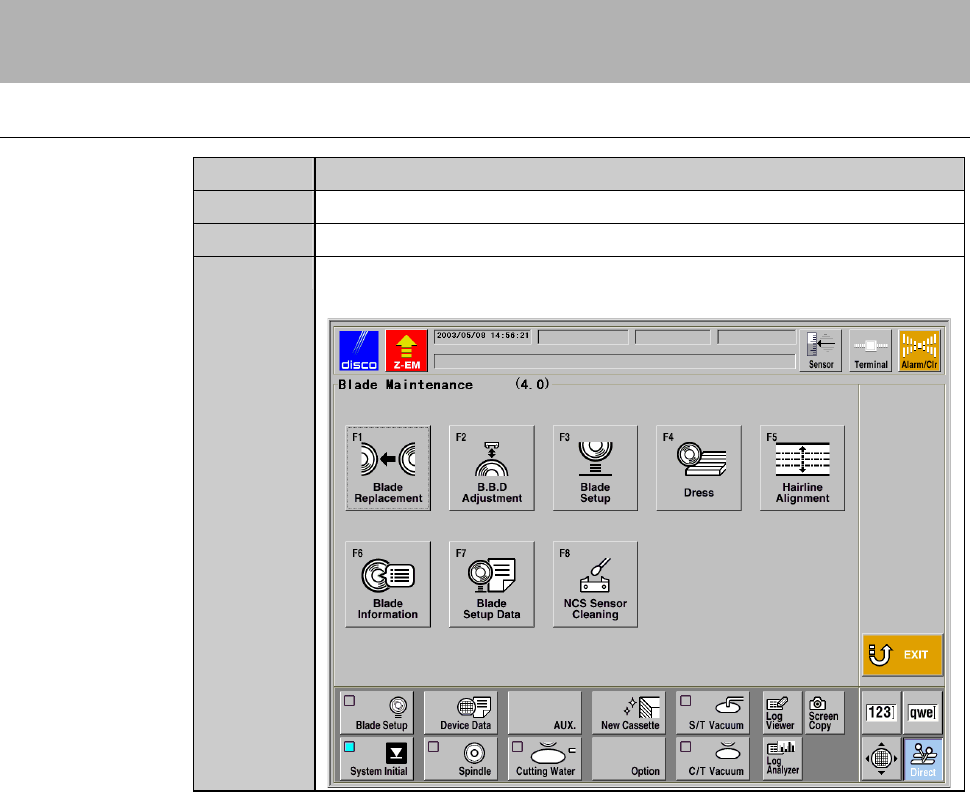

Press the <F4> button on the MAIN MENU screen [screen 0.0]
to call up BLADE MAINTENANCE screen [screen 4.0].
