Procedures for cleaning the water case interior (Continued)
Step No. Do This
4
Remove the wastes strainer which is located at the rear left side
of the water case.

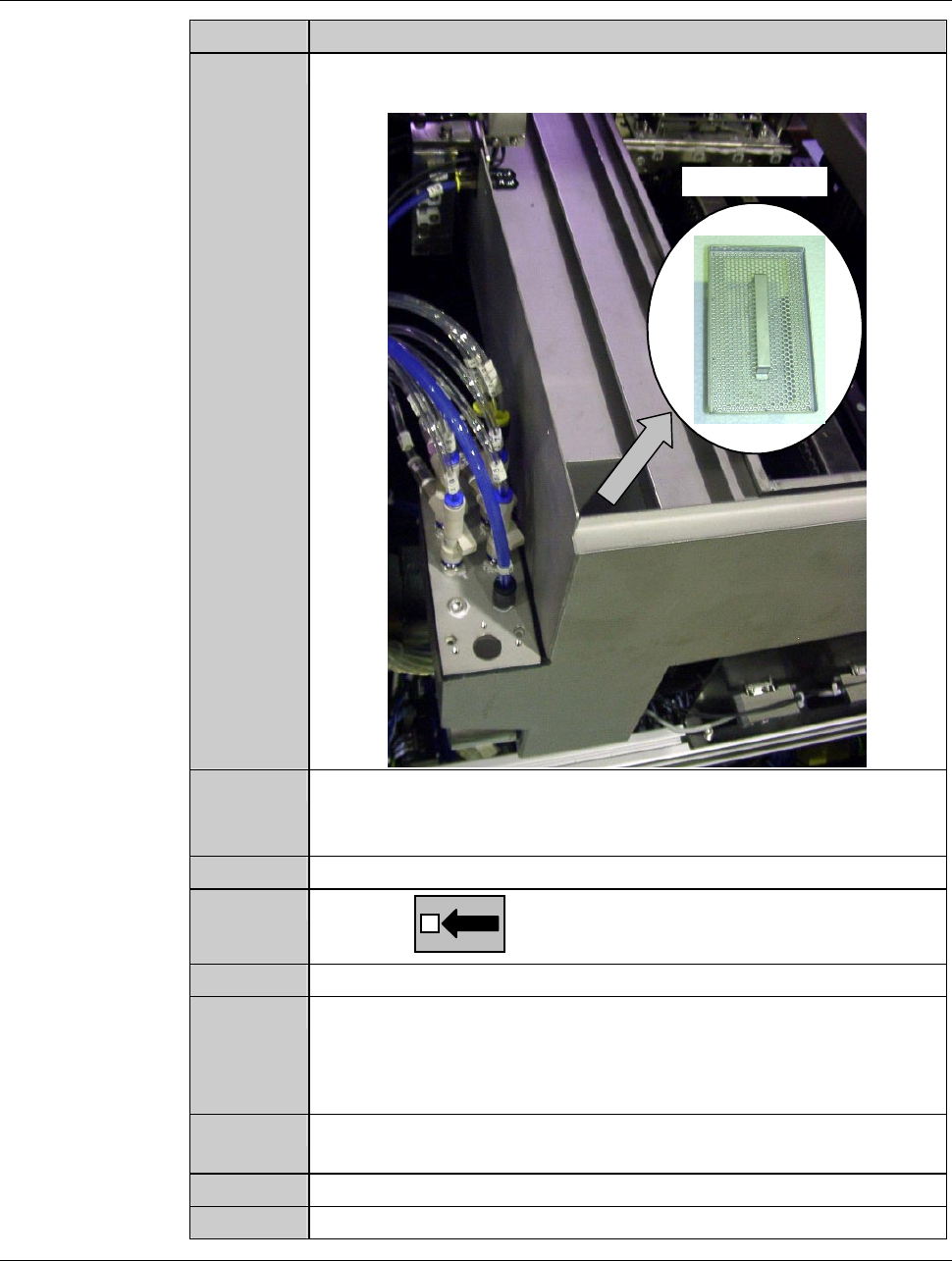

Wastes strainer
5
Positioning away from the machine, brush dirt and broken
workpiece away from the strainer. Reinstall the strainer in its
original position.
6
Close the splash cover.
7
With the button, move the X-axis to its leftmost end.
8
Open the arm section cover.
9
With a soft brush, clean the right-hand bellows.
- When any workpiece is stuck in the bellows, remove it with
tweezers, clean the affected area with alcohol, and attach
waterproofing tape to it for touch-up purposes.
10
When there is a piece of broken workpiece within the right side
of the water case, remove it with tweezers.
11
Close the arm section cover.
12
Press the <System Initial> button to effect system initialization.
E-51
4. Maintenance to Be Performed at 30-Day
(Recommended) Intervals
Summary of this section
This section describes the maintenance to be done at 30-day intervals.
Section No. Title Contents
4-1 Conditioning the Flange - Procedures for conditioning the
flange
4-1. Conditioning the Flange
Procedures for conditioning the flange
For the procedures to perform the flange conditioning, see the section C-2,
[Wheel Mount/Flange Conditioning] of the Maintenance Manual.
E-52
5. Maintenance to Be Performed at 183-Day
(Recommended) Intervals
Summary of this section
This section describes the maintenance to be done at 183-day intervals.
Section No. Title Contents
5-1 Conditioning the Hub
Mount
- Procedures for conditioning the
hub mount
5-2 Greasing the Elevator
Axis
- Procedures for greasing the
elevator axis
5-3 Greasing the Frame
Centering Axis
- Procedures for greasing the
frame centering axis
5-4 Cleaning the Spindle
Coolant Water Path
- Procedures for cleaning the
spindle coolant water path
5-1. Conditioning the Hub Mount
Procedures for conditioning the hub mount
For the procedures to perform the hub mount conditioning,
see the section C-2, [Hub Mount/Flange Conditioning].
