2-10. Microscope Section
Microscope section component names
The microscope section consists of the following components.

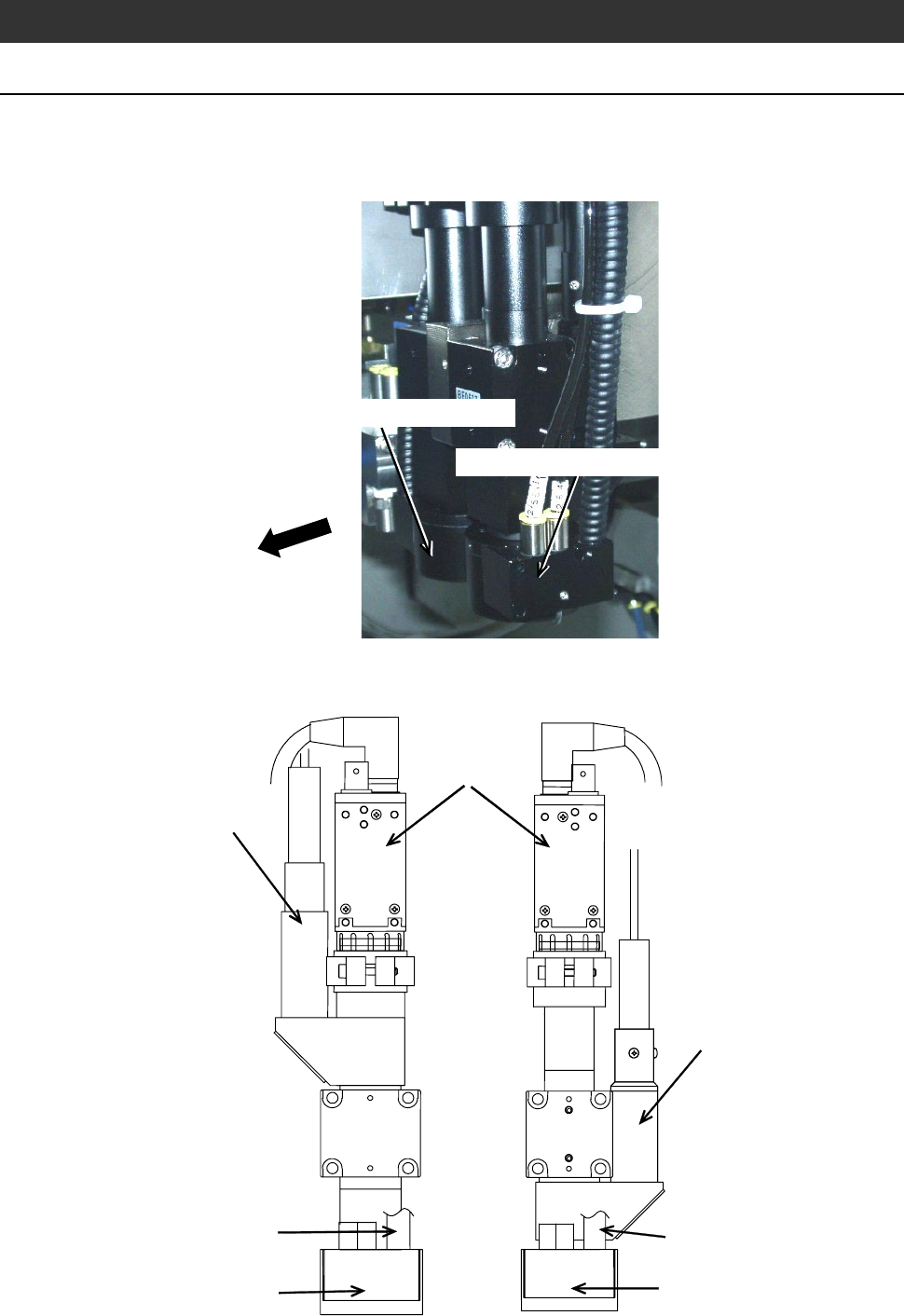

[1-axis]
FRONT
High magnification microscope
Low magnification microscope
CCD camera
[High magnification microscope] [Low magnification microscope]
Low magnification (
×
0.75)
High magnification (
×
7.5)
Macro direct light
source (LED)
Micro direct light
source (LED)
Fiber of macro
oblique light source
Fiber of micro
oblique light source
A-33
Microscope section component names (Continued)

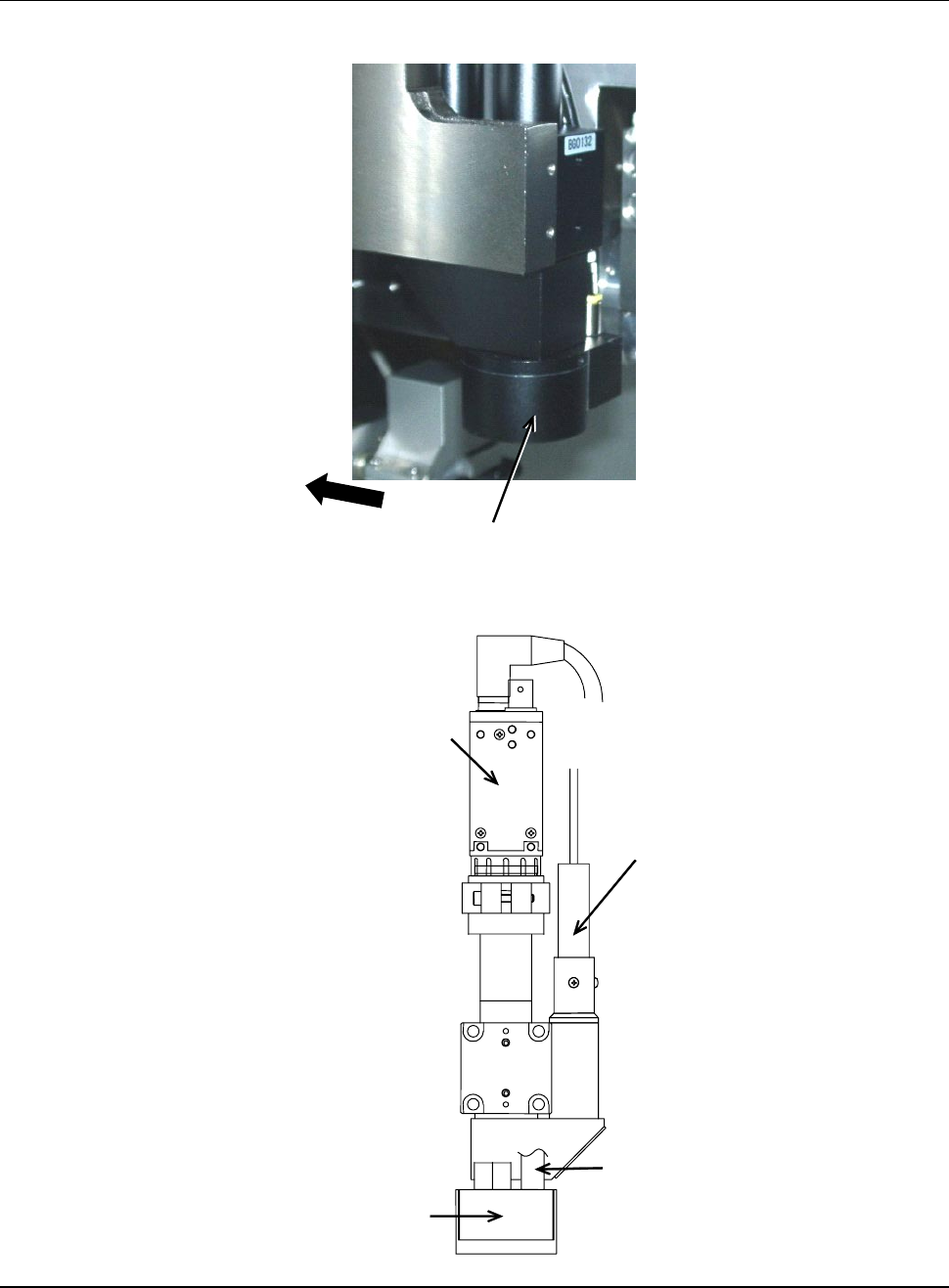

[2-axis]
FRONT
High magnification microscope
CCD camera
[High magnification microscope]
High magnification (
×
7.5)
Micro direct light
source (LED)
Fiber of micro
oblique light source
A-34
Microscope section mechanism
The microscope section is structured as follows:
Function The workpiece front side image is magnified by the
microscope and displayed on the monitor screen.
Feature - Automatic focusing is done with an auto focus
function.
- Switch between high and low magnifications.
Illumination
adjustment
The microscope illumination level can be adjusted with
the LIGHTING ADJUSTMENT screen.
