E-85
6-2-3. Cleaning the left-hand X-axis and its periphery
Procedures for cleaning the left-hand X-axis and its periphery
CAUTION
When you perform maintenance with the outer cover removed,
observe the following precaution. If you stand the removed outer
cover against the machine, you may receive injury by the cover if it is
toppled by the earthquake or like that.
After taking off the outer cover for maintenance purposes, store it
sufficiently away from the working area.
Step No. Do This
(Continued from the previous section)

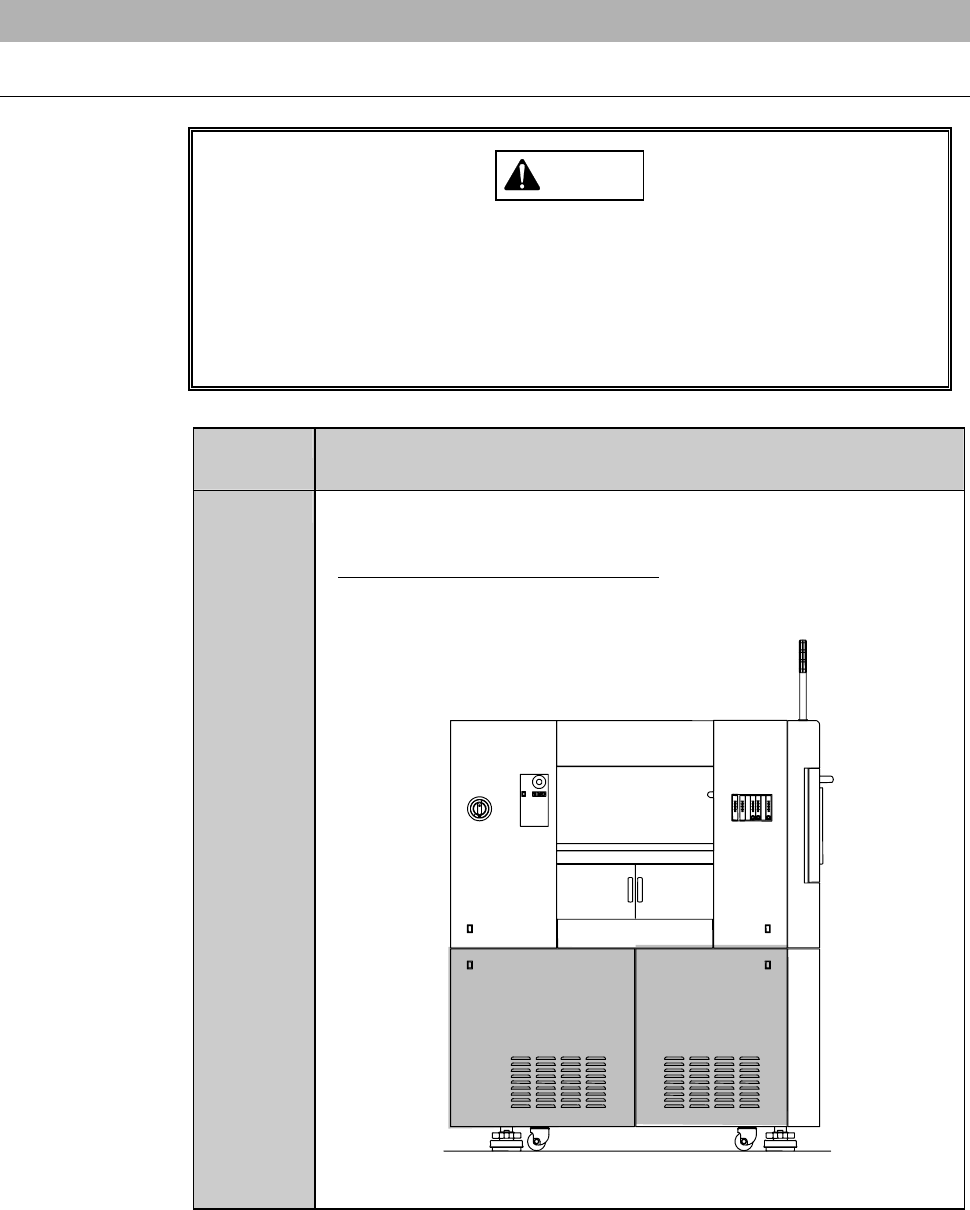

1
Remove the covers [H] and [I]. Then store them sufficiently
away from the working area.
- For the cover removal procedure;
See the section B-2-2, [Removing the Machine Outer Cover and
Status Indicator] of the Installation Manual.
ÿ
[H]
[I]
LEFT SIDE
E-86
Procedures for cleaning the left-hand X-axis and its periphery (Continued)
Step No. Do This
2
Remove the left-hand bellows.
- For the removal procedure of the bellows;
See the section F-3-1, [Replacement of Bellows].
3
With a lint-free cloth, wipe off any soiled grease on the rails and
ball-bearing leadscrew of the X-axis linear guide.
Rail
Ball-bearing leadscrew
Machine front
4
With a lint-free cloth, wipe off contamination adhered to the
periphery of the X-axis.
Continued in the next section.
E-87
6-2-4. Greasing the X-axis
Procedures for greasing the X-axis
Step No. Do This
(Continued from the previous section)
1
Insert the grease gun into grease nipples at the left side of the X-
axis base and inject grease. Note that there are three grease
nipples.
Grease nipples
Grease gun
Slider
Slider
2
With a lint-free cloth, wipe off any grease that protrudes from the
slider.
3
Reinstall the left-hand bellows in its original position.
4
Close the splash cover.
5
Reinstall the covers [H] and [I].
Continued in the next section.
