E-87 6-2-4. Greasi ng the X-axis Procedur es for greasin g the X- axis Step No. Do This (Continued from the previous section) 1 Insert the grease gun into gr ease nipples at the left side of the X- axis base and inject g…
E-86
Procedures for cleaning the left-hand X-axis and its periphery (Continued)
Step No. Do This
2
Remove the left-hand bellows.
- For the removal procedure of the bellows;
See the section F-3-1, [Replacement of Bellows].
3

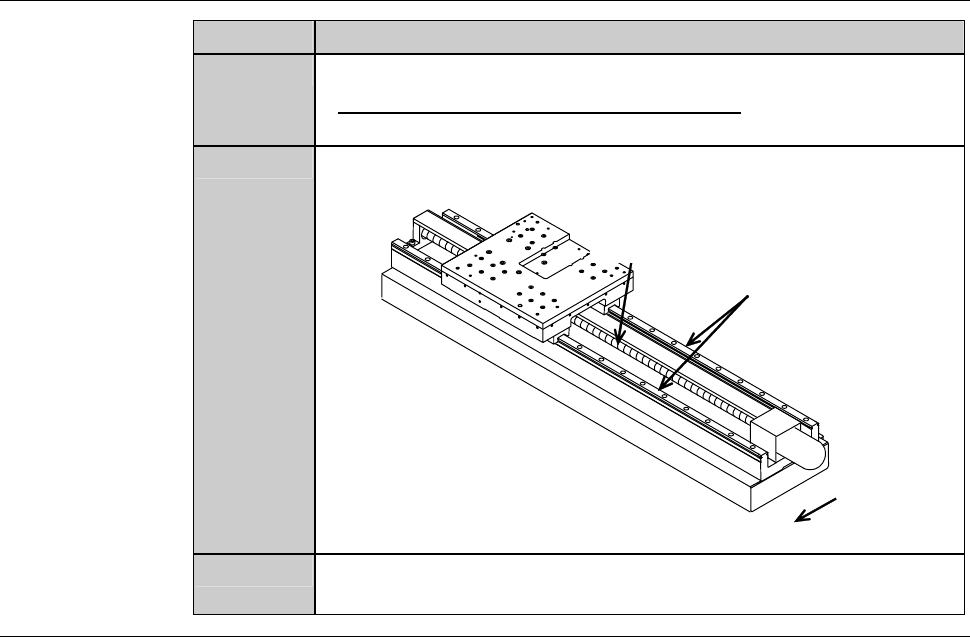

With a lint-free cloth, wipe off any soiled grease on the rails and
ball-bearing leadscrew of the X-axis linear guide.
Rail
Ball-bearing leadscrew
Machine front
4
With a lint-free cloth, wipe off contamination adhered to the
periphery of the X-axis.
Continued in the next section.
E-87
6-2-4. Greasing the X-axis
Procedures for greasing the X-axis
Step No. Do This
(Continued from the previous section)
1

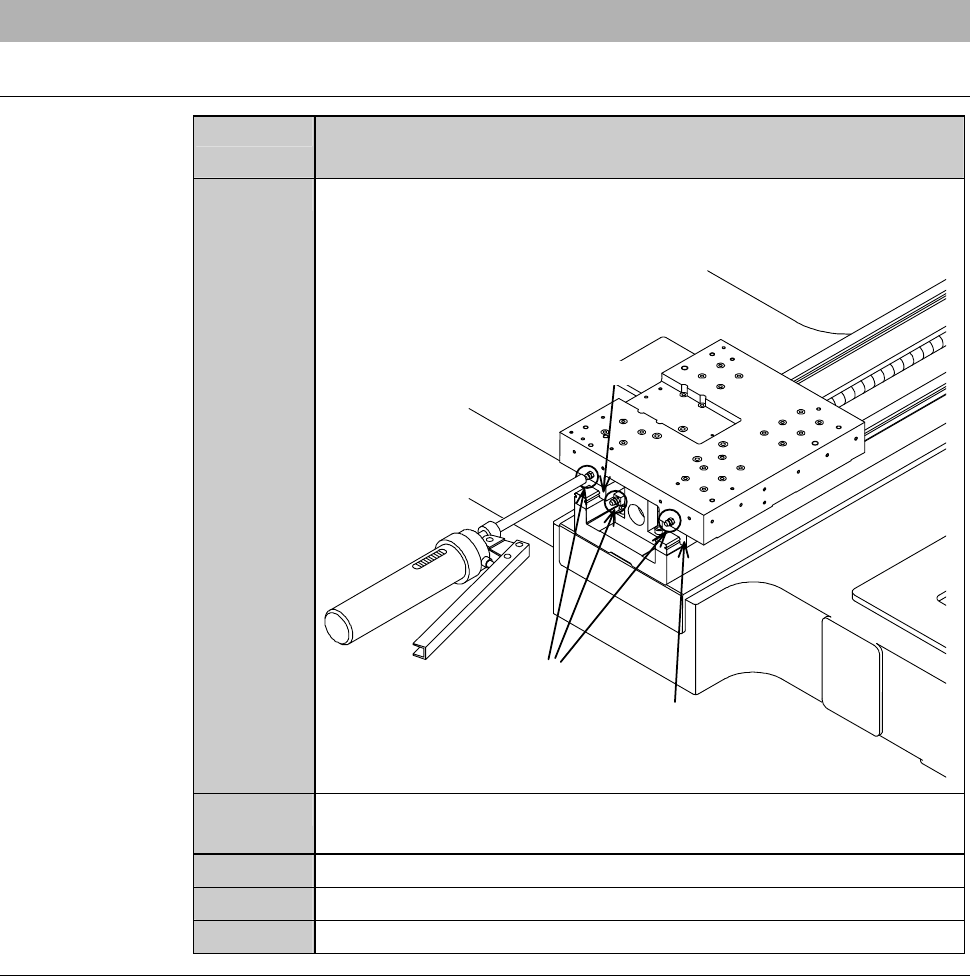

Insert the grease gun into grease nipples at the left side of the X-
axis base and inject grease. Note that there are three grease
nipples.
Grease nipples
Grease gun
Slider
Slider
2
With a lint-free cloth, wipe off any grease that protrudes from the
slider.
3
Reinstall the left-hand bellows in its original position.
4
Close the splash cover.
5
Reinstall the covers [H] and [I].
Continued in the next section.
E-88
6-2-5. Completion of greasing the X-axis
Procedures for completion of greasing the X-axis
Step No. Do This
(Continued from the previous section)
1
Turn ON the facility power source.
2
Open the circuit breaker lever lockout and then turn ON the
circuit breaker.
3
Insert the key into the main switch and then turn ON the main
switch.
4
With the and buttons, shuttle the X-axis
between the right and left end at least three times to apply the
grease uniformly to the entire axis.
