F-6

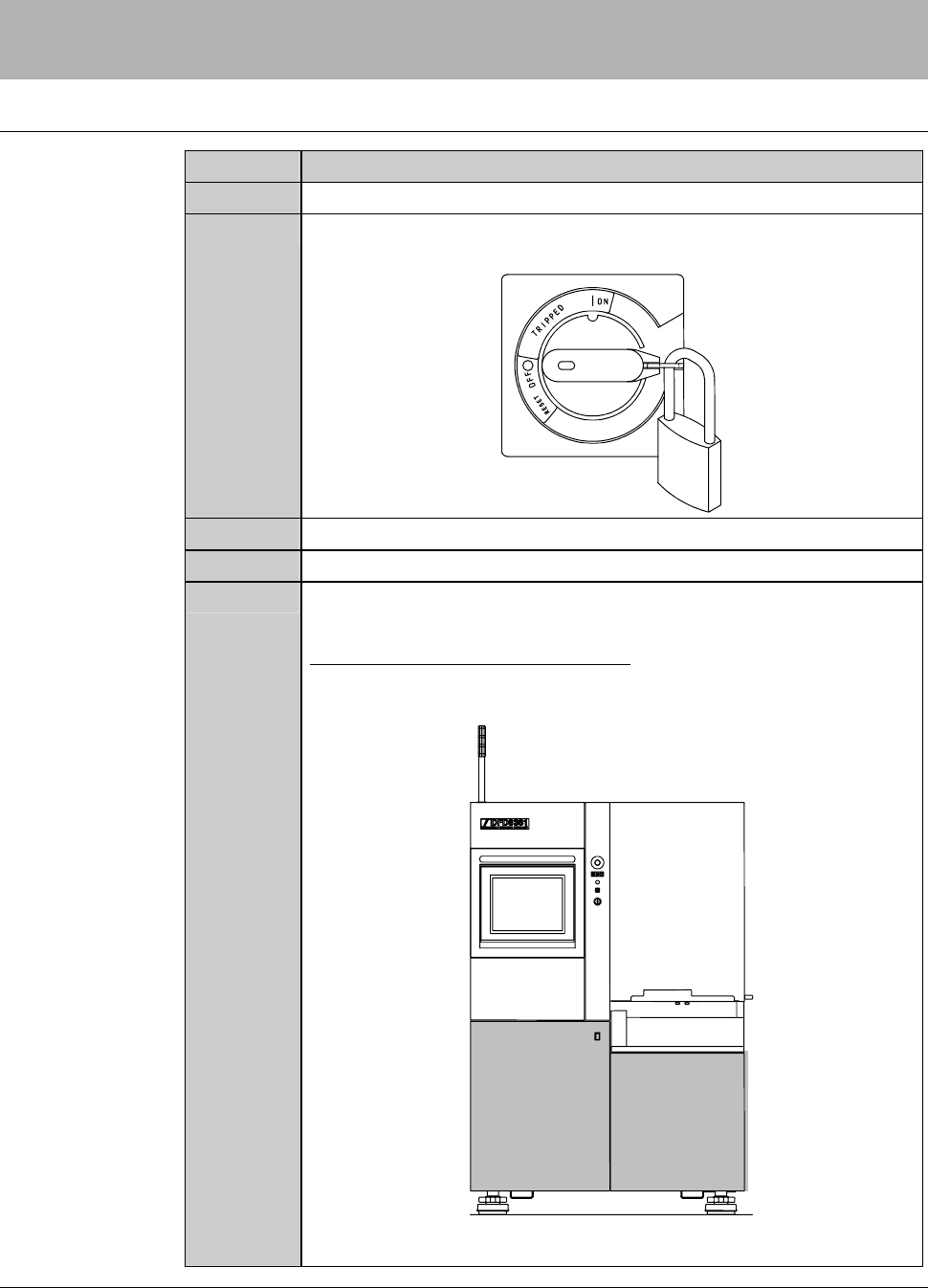

1-1-1. Preparation of replacing the air clean unit
consumable parts
Procedures for preparation of replacing the air clean unit consumable parts
Step No. Do This
1
Turn OFF the main switch and then pull out the key.
2
Turn OFF the circuit breaker at the left of the machine. Lock out
the circuit breaker lever with a padlock or the like.
3
Shut off the facility power supply.
4
Close the facility main valve of air.
5
Remove the cover [A] and [B]. Then store it sufficiently away
from the working area.
- For the cover removal procedure;
See the section B-2-2, [Removing the Machine Outer Cover
and Status Indicator] of Installation Manual.
[A]
[B]
FRONT SIDE
Continued in the next section.
F-7

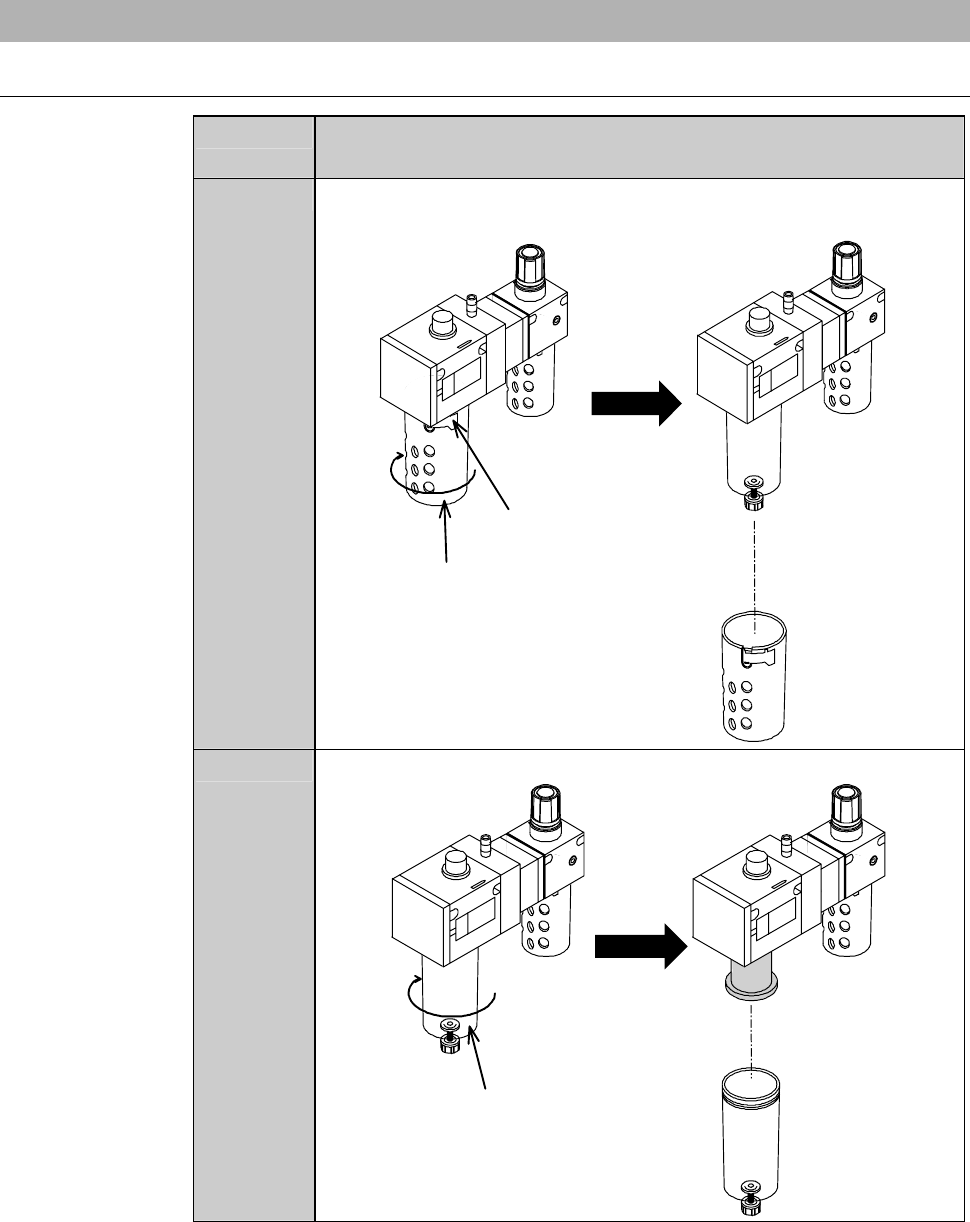

1-1-2. Replacing the mist separator element
Procedures for replacing the mist separator element
Step No. Do This
(Continued from the previous section.)
1
While pressing the lock lever, unscrew the case by turning it
clockwise.
Lock lever
Case
2
Unscrew the bowl by turning it clockwise.
Bowl
F-8

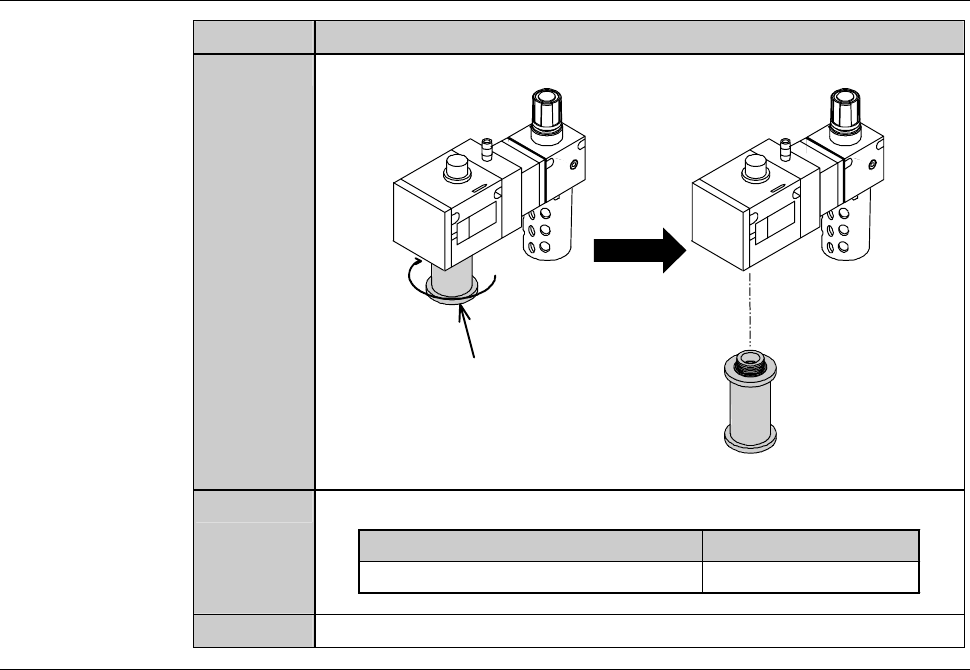

Procedures for replacing the mist separator element (Continued)
Step No. Do This
3
Unscrew the mist separator element by turning it clockwise.
Mist separator element
4
Replace the mist separator element with a new one.
Part Name Part No.
Mist separator element MOHEH04252A
5
Reassemble the mist separator element.
Continued in the next section.
