F-48 1-8-2. Re placing t he Y-axis se ction roll c over Procedur es for replaci ng the Y-axi s section rol l cover Step No. Do This (Continued from the previous section.) 1 Open the splash cover. 2 Loose four retaining s…
F-47

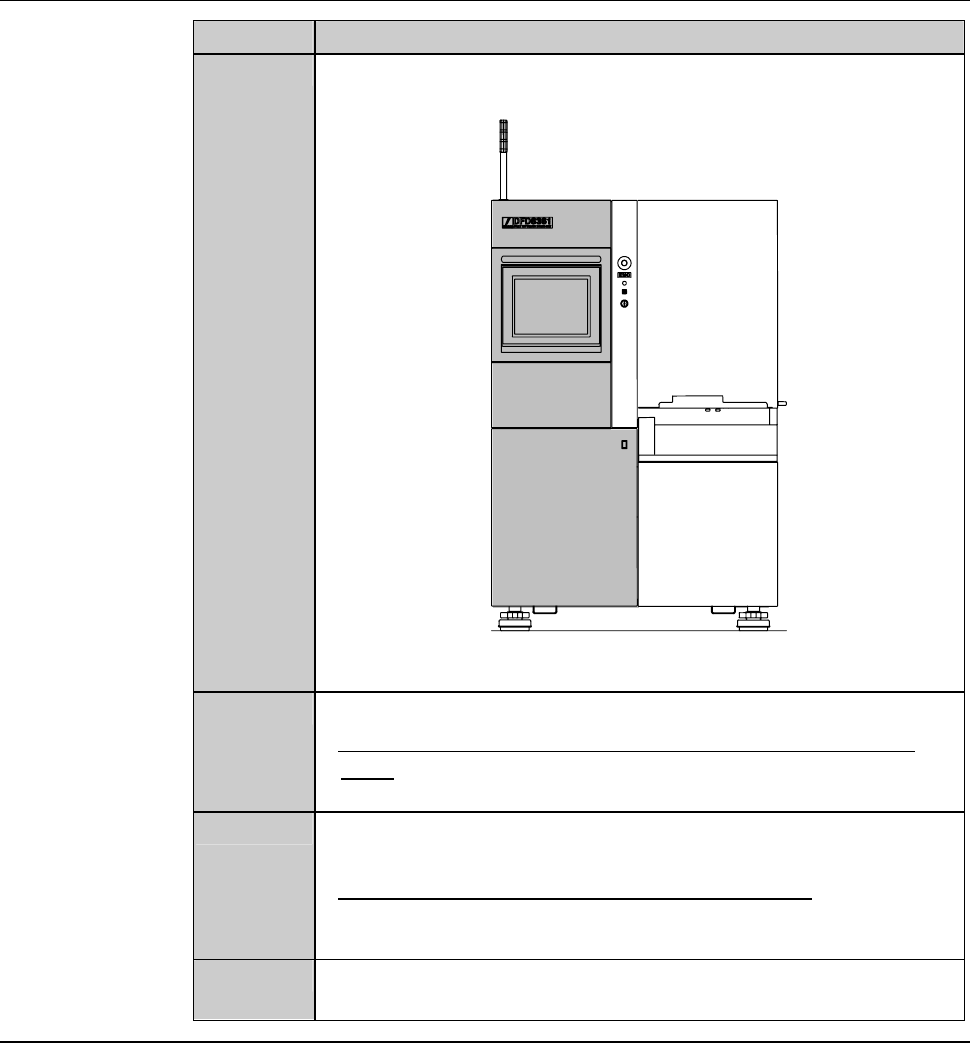

Procedures for preparation of replacing the Y-axis section roll cover (Continued)
Step No. Do This
8
Remove the cover [A].
[P]
[A]
FRONT SIDE
9
Open the cover [P].
- For the opening procedures of the touch panel section outer
cover
See section A-1, [Machine Outer Cover].
10
Remove the partition (left). Then store it sufficiently away from
the working area.
- For the removal procedures of the partition (left);
See the section 1-2-3-2 of this chapter, [Removing the partition
(left)].
11
Store the removed covers and partition sufficiently away from
the working area.
Continued in the next section.
F-48
1-8-2. Replacing the Y-axis section roll cover
Procedures for replacing the Y-axis section roll cover
Step No. Do This
(Continued from the previous section.)
1
Open the splash cover.
2
Loose four retaining screws (M3) of the roll cover at the center of
the Y-axis section. Do not remove them.
Retaining screws (M3)
Roll cover
3
Replace the roll cover with the new one.
- You can mount the center roll cover in any direction.
Name Part No.
Sheet bellows MOKFY016
4
Firmly screw down four retaining screws (M3).
F-49
Procedures for replacing the Y-axis section roll cover (Continued)
Step No. Do This
5 [When there is maintenance space provided at the rear
side of the machine]
From the rear side of the machine, loosen four retaining screws
(M3) of the roll cover at the spindle 1 axis tail section. Do not
remove them.
Retaining screws (M3)
[When there is no maintenance space provided at the rear
side of the machine]
From the left side of the machine, loosen four retaining screws
(M3) of the roll cover at the spindle 1 axis tail section. Do not
remove them.
Retaining screws (M3)
