A-46

4-1. Personnel Protection

Summary of this section

The cutting section of the machine is covered with the splash cover. And the

transport and wash section of the machine are covered with the arm section

cover.

A safety switch is provided for the splash cover so as to determine whether the

cover is open or closed. To provide human protection, the employed lock

cylinder prevents the cover from opening during spindle rotation.

Section No. Title Contents

4-1-1 Safety switch/lock

cylinder of the splash

cover

- Location and structure of the

safety switch of the splash cover

- Location and structure of the

lock cylinder of the splash cover

4-1-2 Safety switch/lock

cylinder of the arm

section cover

- Location and structure of the

safety switch of the arm section

cover

- Location and structure of the

lock cylinder of the arm section

cover

A-47

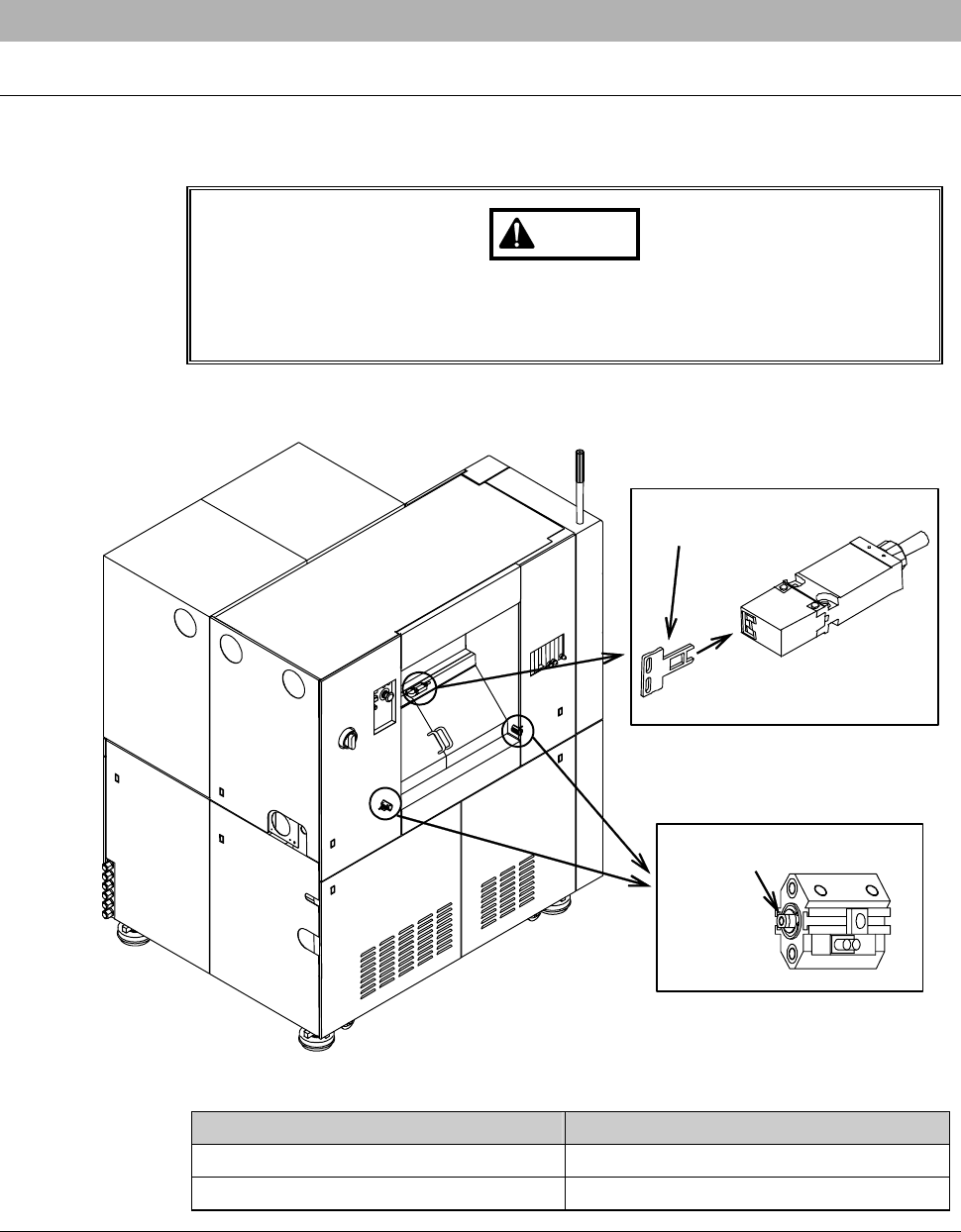

4-1-1. Safety switch/lock cylinder of the splash cover

Location and structure of the safety switch and lock cylinder

The figure below shows the location and structure of the safety switch and

lock cylinder.

WARNING

Ensure to install the safety switch and lock cylinder under the

condition in which they function normally. Also, be sure to use the

safety switch and lock cylinder specified by DISCO.

Lock cylinder

Cylinder rod

Lock key

Safety switch

Part Name Part No.

Safety switch BAZY1DSS4055

Lock cylinder MOKBH025

A-48

4-1-2. Safety switch/lock cylinder of the arm section cover

Location and structure of the safety switch and lock cylinder

The figure below shows the location and structure of the safety switch and

lock cylinder.

WARNING

Ensure to install the safety switch and lock cylinder under the

condition in which they function normally. Also, be sure to use the

safety switch and lock cylinder specified by DISCO.

Lock cylinder

Cylinder rod

Lock key

Safety switch

Part Name Part No.

Safety switch BAZY1DSS4045

Lock cylinder MOJKLB45
