F-80
3-2-3. Replacing the waterproof cover/O-ring/V-ring
Procedures for replacing the waterproof cover/O-ring/V-ring
WARNING
- If you operate the machine while the machine interior or floor is wet
with water, you may receive electric shock that could result in
serious injury or death.
If the machine or floor is wet with water, do not turn ON the facility
power source until it dries.
- Upon the completion of replacement, operate the machine to verify
that there is no water leakage. If water leakage occurs, shut off the
facility power supply and turn OFF the machine. And then reinstall
waterproof cover, O-ring and V-ring properly.
CAUTION
When you remove the waterproof cover, exercise care so that no
remaining water, dirt or other foreign matter enters the direct-drive
motor. Also, clean the waterproof cover mounting surface with a lint-
free cloth.
F-81
Procedures for replacing the waterproof cover/O-ring/V-ring (Continued)
Step No. Do This
(Continued from the previous section)
1
Wear protective gloves.
2
Remove the mounting screw (cross-shaped recess screw) of the
waterproof cover.
3

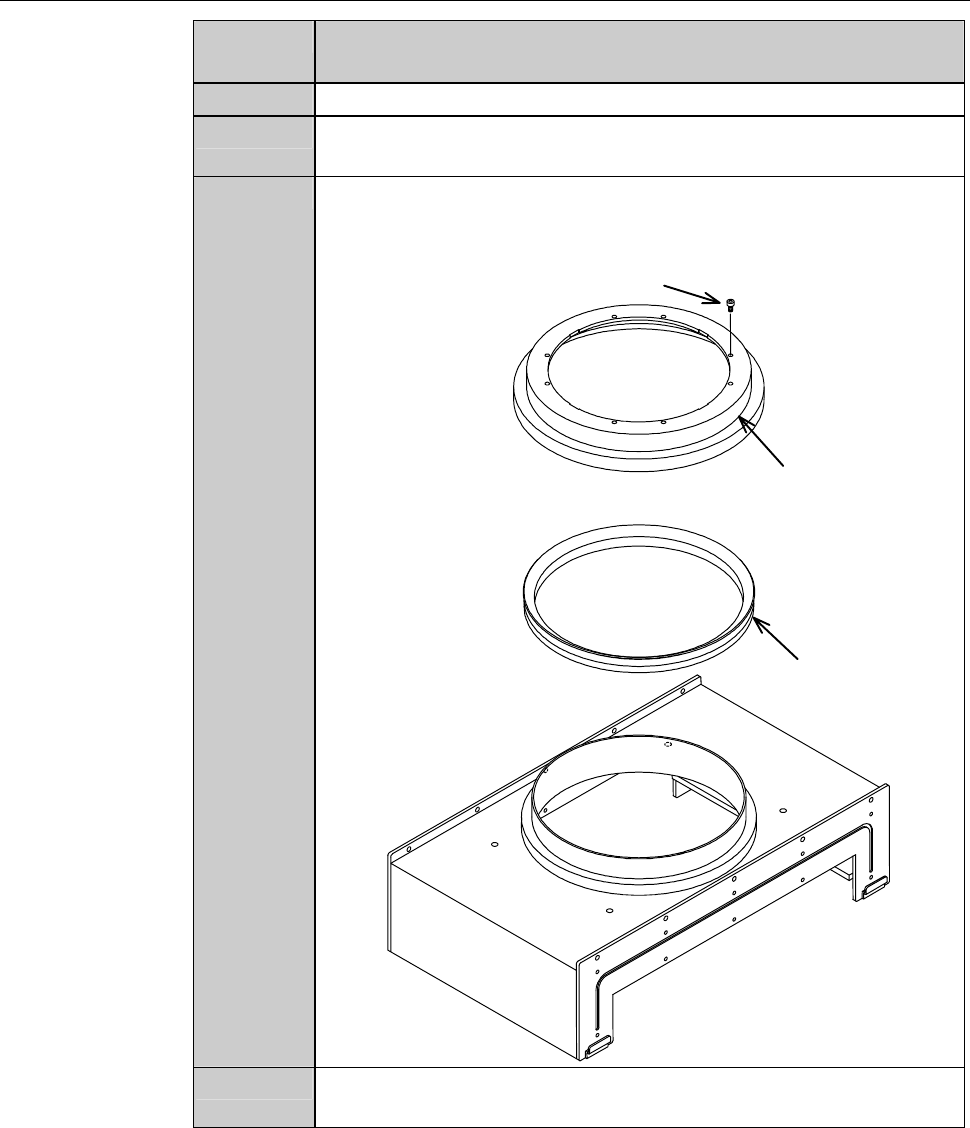

Remove the waterproof cover.
Waterproof cover
V-ring
Mounting screw
(cross-shaped recess screw)
4
With a lint-free cloth moistened with alcohol, clean the
waterproof cover mounting surface.
F-82
Procedures for replacing the waterproof cover/O-ring/V-ring (Continued)
Step No. Do This
(Continued from the previous section)
5

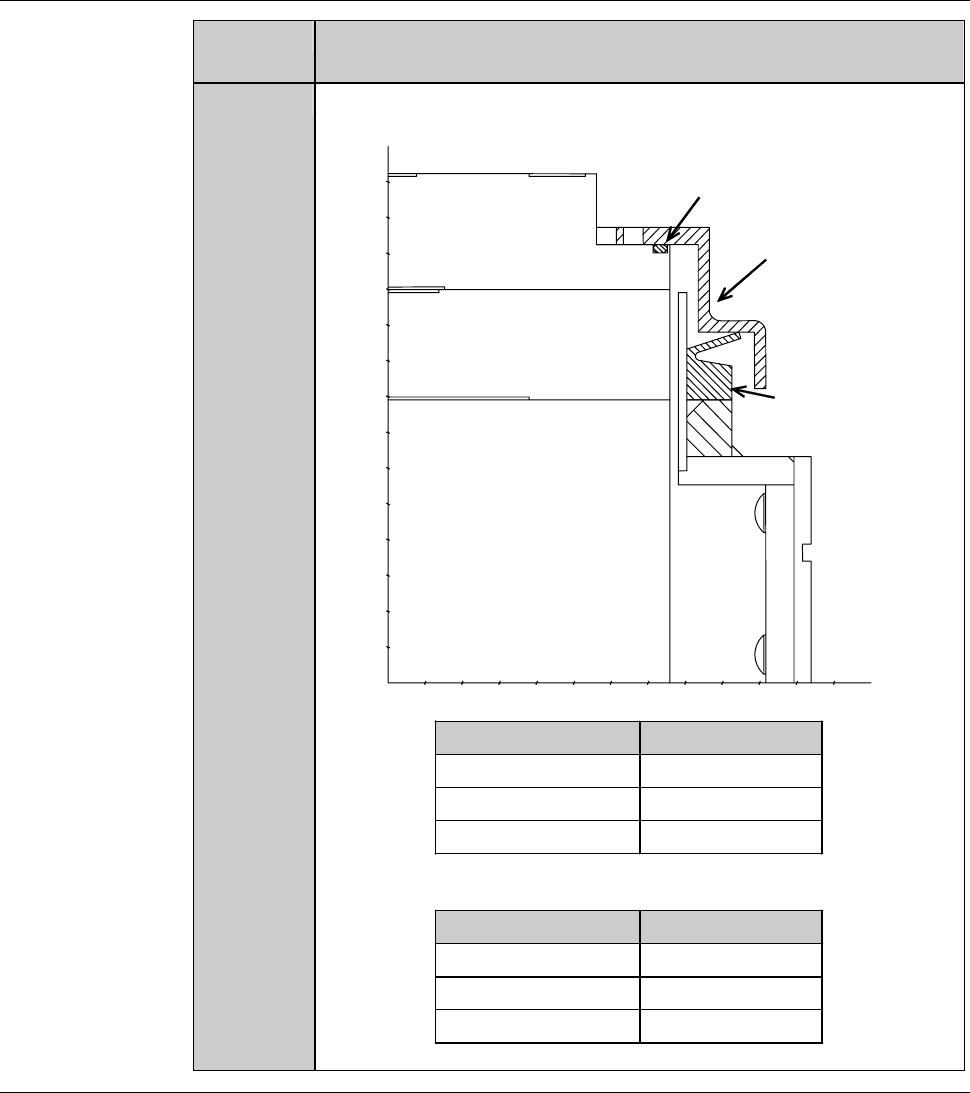

Replace the waterproof cover, O-ring and V-ring with the new
ones.
Table base
Direct drive motor
Waterproof cover
O-ring
V-ring
[DFD6351]
Part Name Part No.
Waterproof cover MOHLRB09--C
V-ring MOHLRB87--A
O-ring MOELR022
[DFD6361]
Part Name Part No.
Waterproof cover MOJKRA27
V-ring MOJKRA26
O-ring MOJER024
Continued in the next section.
