F-83 3-2-4. Com pletion of replaci ng the waterproof cover/O- ring/V-ring Procedur es for compl etion of r eplacing the waterpr oof cover /O-ring/V- ring W ARNING - If you operate the m achine whi le the machin e interio…
F-82
Procedures for replacing the waterproof cover/O-ring/V-ring (Continued)
Step No. Do This
(Continued from the previous section)
5
Replace the waterproof cover, O-ring and V-ring with the new
ones.
Table base
Direct drive motor
Waterproof cover
O-ring
V-ring
[DFD6351]
Part Name Part No.
Waterproof cover MOHLRB09--C
V-ring MOHLRB87--A
O-ring MOELR022
[DFD6361]
Part Name Part No.
Waterproof cover MOJKRA27
V-ring MOJKRA26
O-ring MOJER024
Continued in the next section.
F-83
3-2-4. Completion of replacing the waterproof cover/O-
ring/V-ring
Procedures for completion of replacing the waterproof cover/O-ring/V-ring
WARNING
- If you operate the machine while the machine interior or floor is wet
with water, you may receive electric shock that could result in
serious injury or death.
If the machine or floor is wet with water, do not turn ON the facility
power source until it dries.
- Upon the completion of replacement, operate the machine to verify
that there is no water leakage. If water leakage occurs, shut off the
facility power supply and turn OFF the machine. And then reinstall
waterproof cover, O-ring and V-ring properly.
If you operate the machine while the machine interior or floor is wet
with water, you may receive electric shock that could result in
serious injury or death.
F-84
Procedures for completion of replacing the waterproof cover/O-ring/V-ring (Continued)
Step No. Do This
(Continued from the previous section)
1
Make sure that there is no water leakage inside the machine.
2

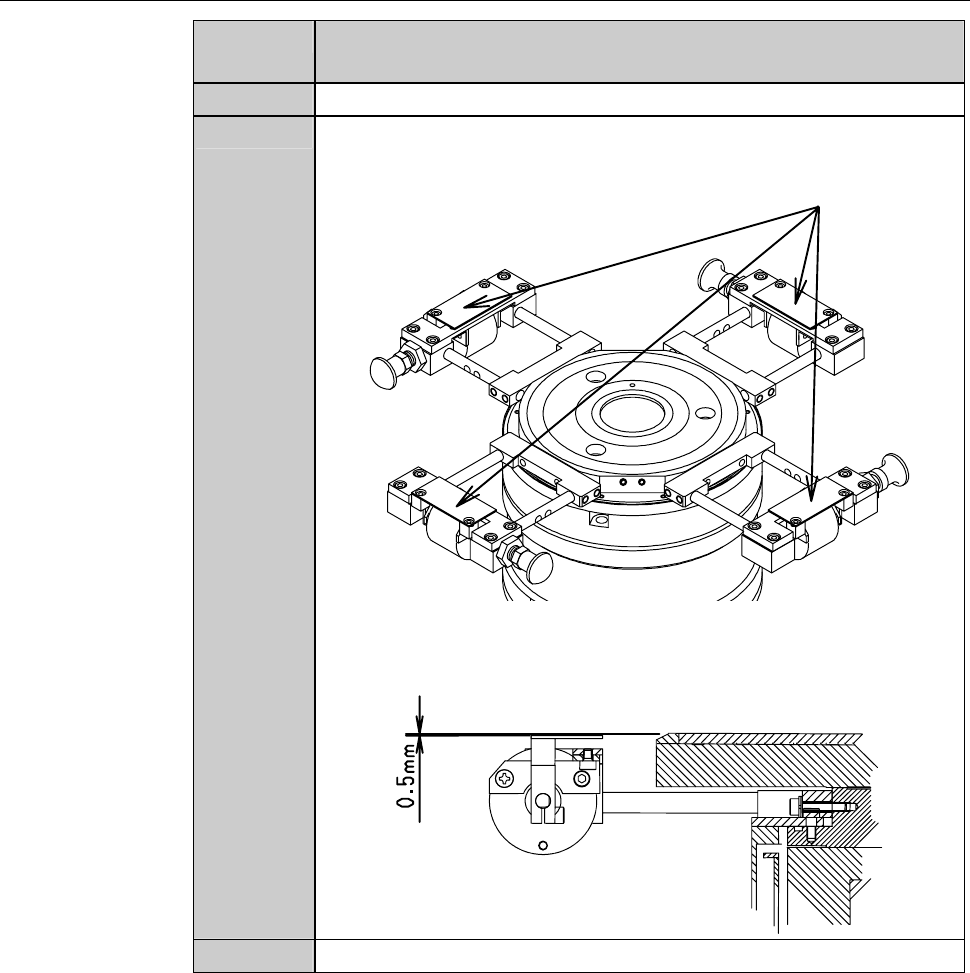

Reinstall the frame clumps, being careful with their original
positions.
Frame clump
- Mount the frame clump so that its top surface comes 0.5mm
lower than the chuck table top surface.
Chuck table
3
Reinstall the parallel joints to their original positions.
