3-3. Replacing the Chuck Table Center Ring
Procedures for replacing the chuck table center ring
Step No. Do This
1
From outside of the splash cover, visually make sure that the
spindle is completely stopped.
2
Make sure that there is no water in the water case.
If there is any water in the water case, allow it to thoroughly dry.
Also, water in the bellows section must be wiped away with a lint-
free cloth.
3
Remove the chuck table.
- For the chuck table removal procedure;
See the section B-1, [Chuck Table Replacement].
4

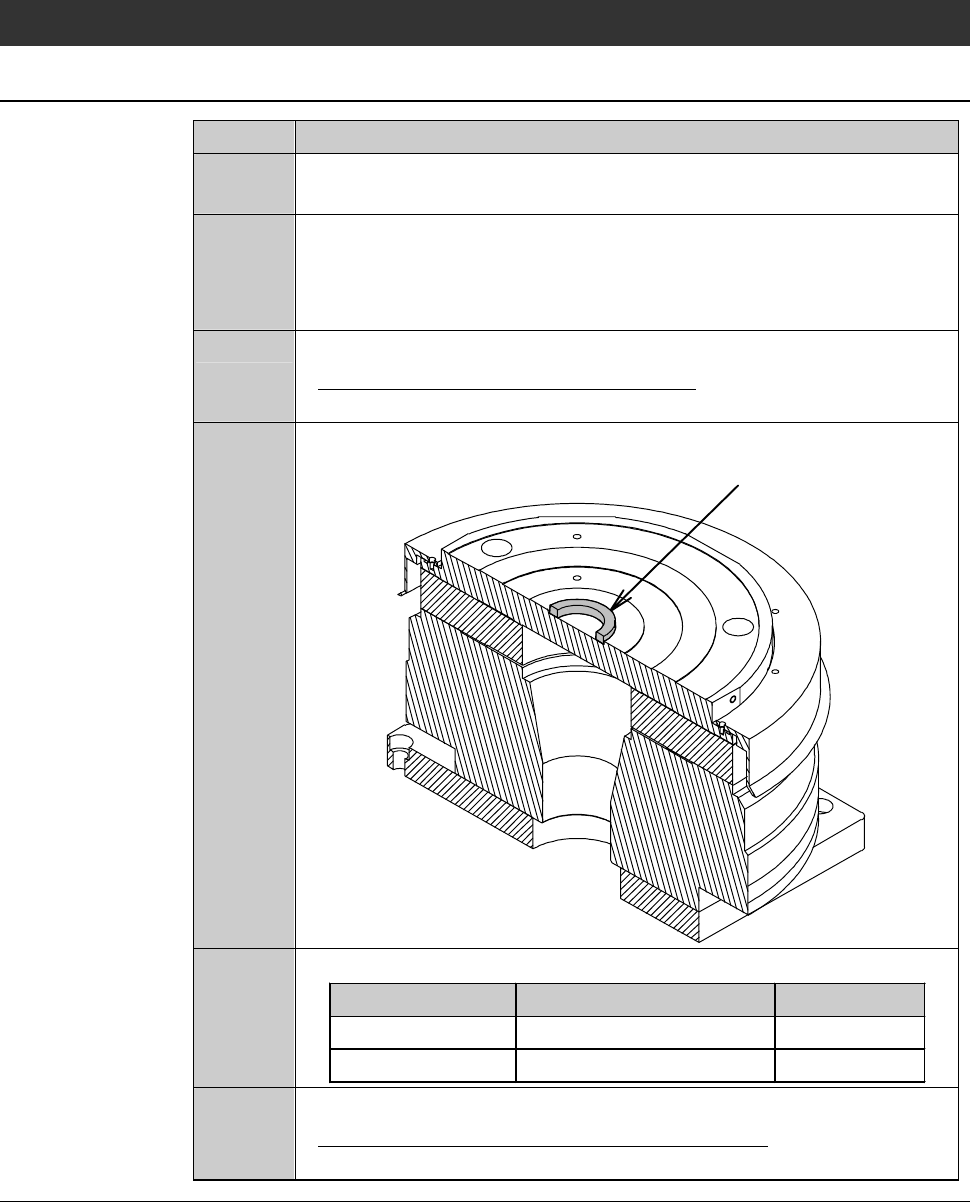

Remove the center ring.
Center ring
5
Install a new center ring.
Model Part Name Part No.
DFD6351 Chuck table center ring MODDX146
DFD6361 Chuck table center ring MOJER029
6
Set the chuck table on the table base.
- For the procedure for securing the chuck table;
See the section B-1, [Chuck Table Replacement].
F-87
3-4. Replacing the Spinner Table O-ring
Operation flow
The procedure for replacing the spinner table O-ring consists of the following
steps.
3-4-1 Removing the spinner table
3-4-2 Replacing the O-ring
Before replacement
Have on hand the following items for replacing the O-ring.
- Lint-free cloth
F-88
3-4-1. Removing the spinner table
Procedures for removing the spinner table
Step No. Do This
1
Make sure that there is no water in the spinner cleaning section.
- If there is any water in the spinner cleaning section, wipe it
away with a lint-free cloth and dry thoroughly.
2

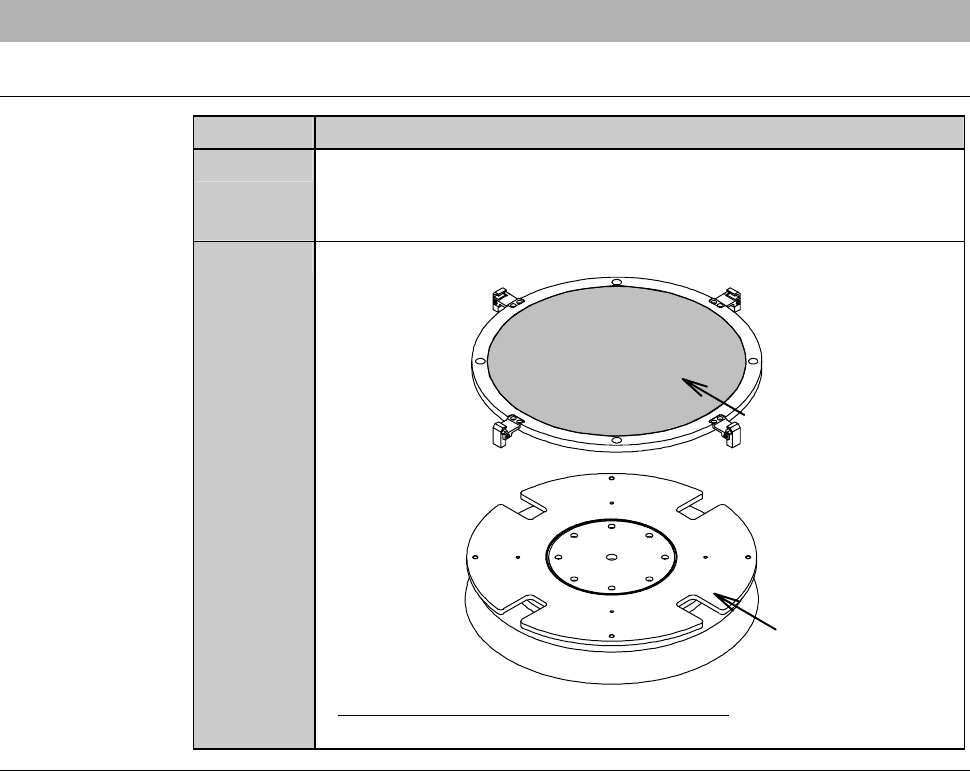

Remove the spinner table from the table base.
Spinner table
Table base
- For the spinner table removal procedure;
See the section B-3-4, [Replacing the Spinner Table].
Continued in the next section.
