F-92

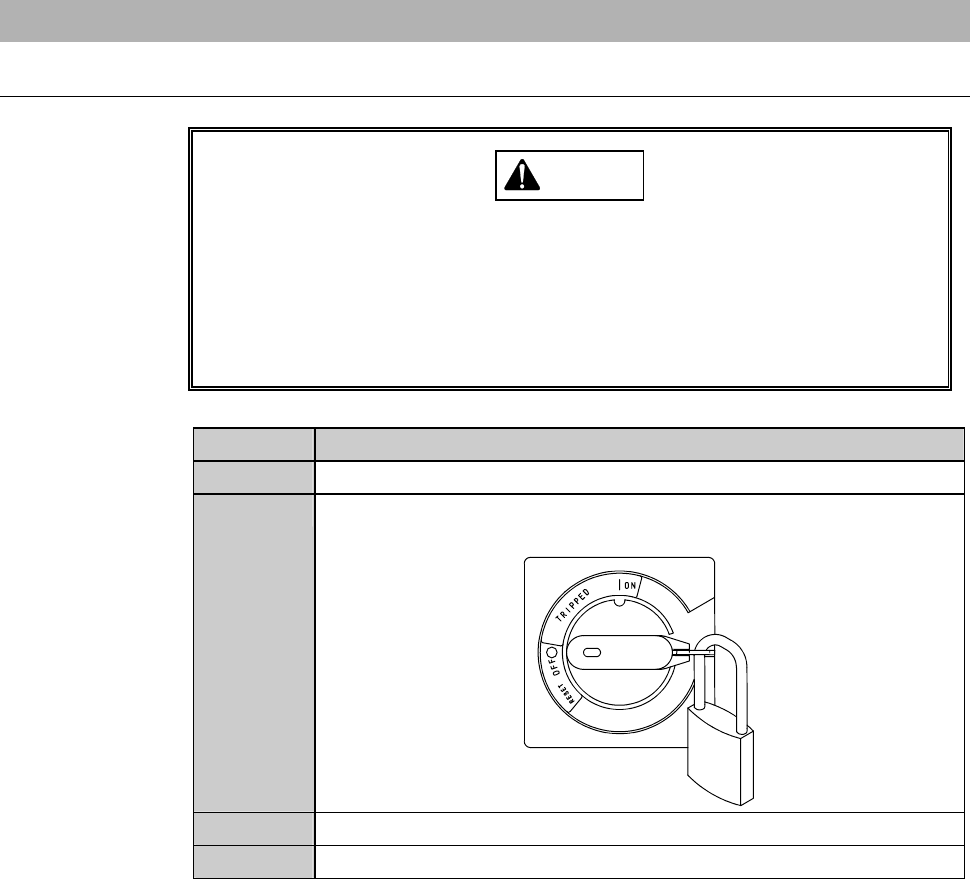

4-1-1. Removing the machine outer cover
Procedures for removing the machine outer cover
CAUTION
When you perform maintenance with the outer cover removed,
observe the following precaution. If you stand the removed outer
cover against the machine, you may receive injury by the cover if it is
toppled by the earthquake or like that.
After taking off the outer cover for maintenance purposes, store it
sufficiently away from the working area.
Step No. Do This
1
Turn OFF the main switch and then pull out the key.
2
Turn OFF the circuit breaker at the left of the machine. Lock out
the circuit breaker lever with a padlock or the like.
3
Shut off the facility power supply.
4
Close the facility main valve of the wheel coolant water.
F-93
Procedures for removing the machine outer cover (Continued)
Step No. Do This
5
Remove the cover [U]. Then store it sufficiently away from the
working area.
- For the cover removal procedure;
See the section B-2-2, [Removing the Machine Outer Cover,
Monitor and Status Indicator] of Installation Manual.
ÿ
[U]
LEFT SIDE
Continued in the next section.
F-94

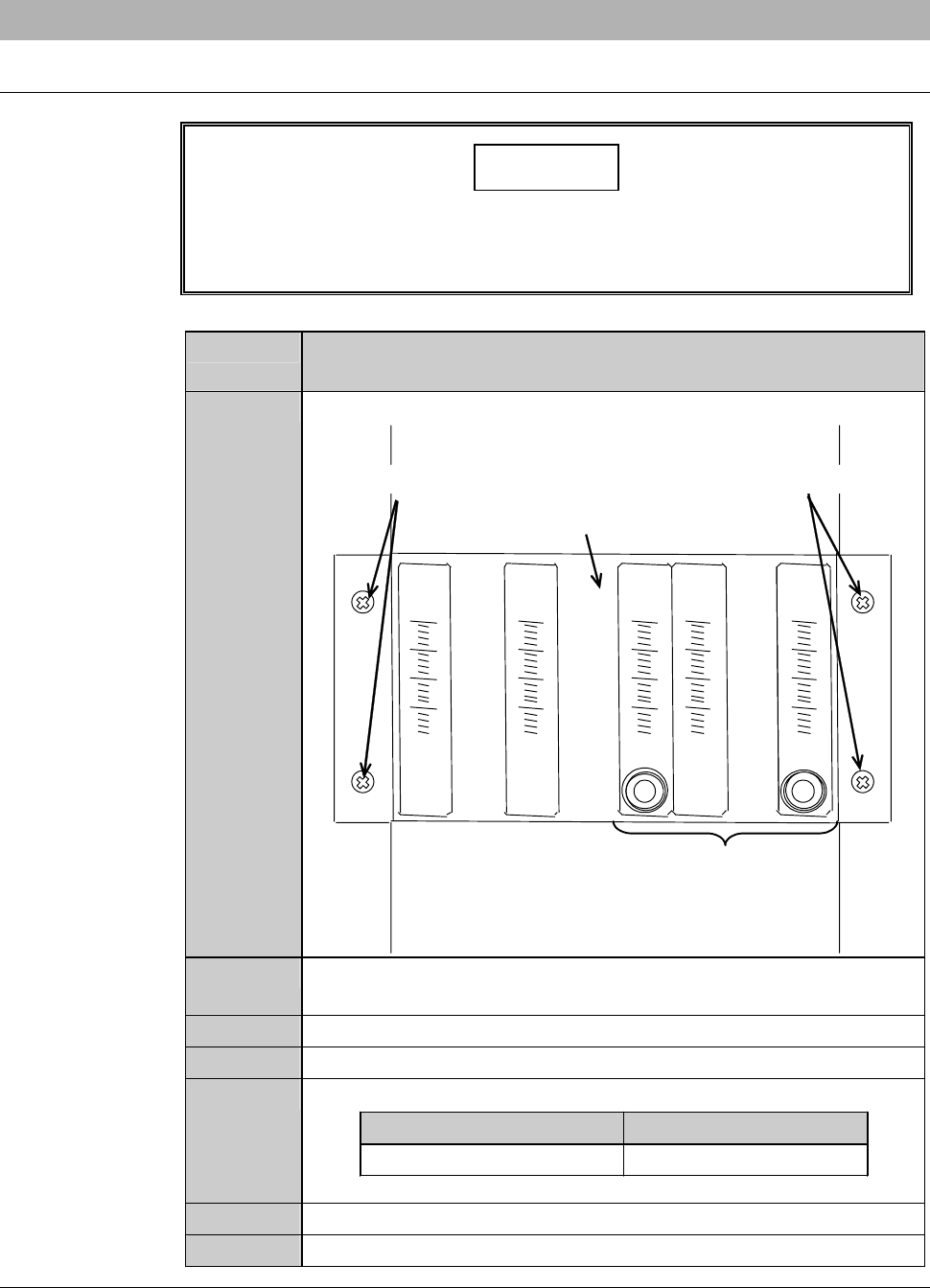

4-1-2. Replacing the flowmeter
Procedures for replacing the flowmeter
CAUTION
The bracket contains pipes for the flowmeter and switch harnesses.
In the removal of the bracket, exercise care not to pull it strongly with
undue force.
Step No. Do This
(Continued from the previous section)
1
Unscrew the retaining screws of the bracket.
Retaining screws Retaining screws
Bracket
Flowmeter
2
Remove the bracket slowly, being careful not to unplug the
junctions at the backside of the bracket.
3
Disconnect the piping and joints of the flowmeter..
4
Remove the flowmeter.
5
Mount the new flowmeter to the bracket.
Part Name Part No.
Flowmeter MOHEH056--C
6
Connect the removed piping to the new flowmeter.
7
Reinstall the bracket in its original position.
Continued in the next section.
