F-111 Procedur es for prep aration of re placing th e fluoresce nt lamp ( Continue d) Step No. Do This 6 Remove the retaining screws (cross-shaped recess screws) o f the cover. Cover Retaining scr ews (Cross-s haped rece…
F-110
5-2-1. Preparation of replacing the fluorescent lamp
Procedures for preparation of replacing the fluorescent lamp
Step No.
Do This
1
Press the <System Initial> button to effect system initialization.
2
Turn OFF the main switch and then pull out the key.
3
Turn OFF the circuit breaker. Lock out the circuit breaker lever
with a padlock or the like.
4
Shut off the facility power supply.
5
Remove the covers [S] and [U]. Then store them sufficiently away
from the working area.
- For the cover removal procedure;
See the section B-2-2, [Removing the Machine Outer Cover and
Status Indicator] of the Installation Manual.
ÿ
[U][S]
Cover
LEFT SIDE
F-111
Procedures for preparation of replacing the fluorescent lamp (Continued)
Step No.
Do This

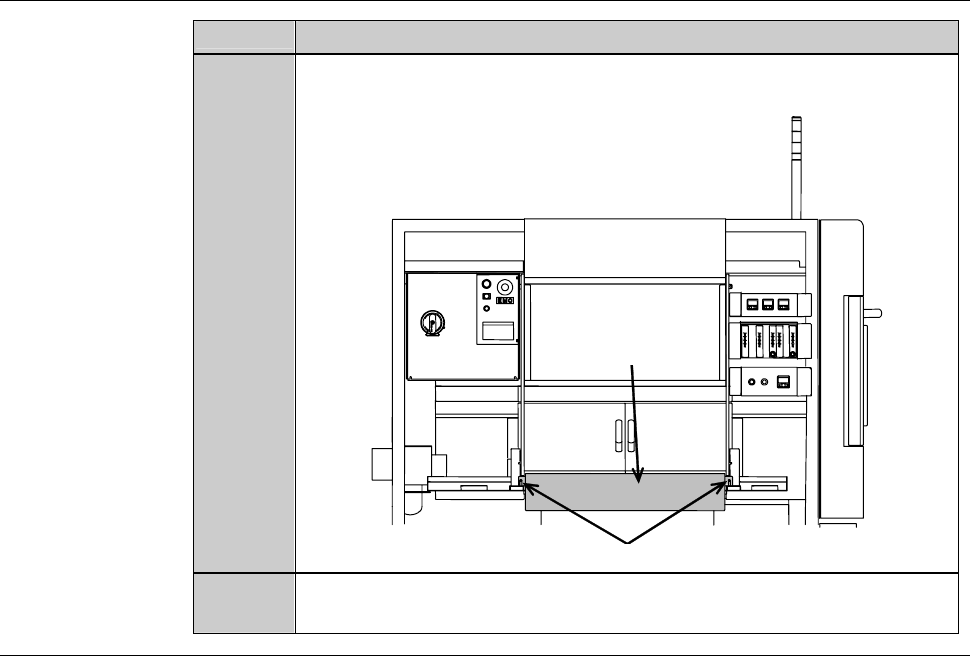

6
Remove the retaining screws (cross-shaped recess screws) of the
cover.
Cover
Retaining screws (Cross-shaped recess screws)
7
Remove the cover. Then store it sufficiently away from the
working area.
Continued in the next section.
F-112
5-2-2. Replacing the fluorescent lamp
Procedures for replacing the fluorescent lamp
Step No.
Do This
(Continued from the previous section)
1
Rotate and remove the fluorescent lamp.
Removing the fluorescent lamp
Lamp sockets
Part Name Qty. Part No.
Fluorescent lamp 1 AQFHF16EX-N
2
Replace the fluorescent lamp with a new one.
Continued in the next section.
