F-118

5-3-3. Replacing the UV irradiation lamp

Procedures for replacing the UV irradiation lamp

Step No. Do This

(Continued from the previous section)

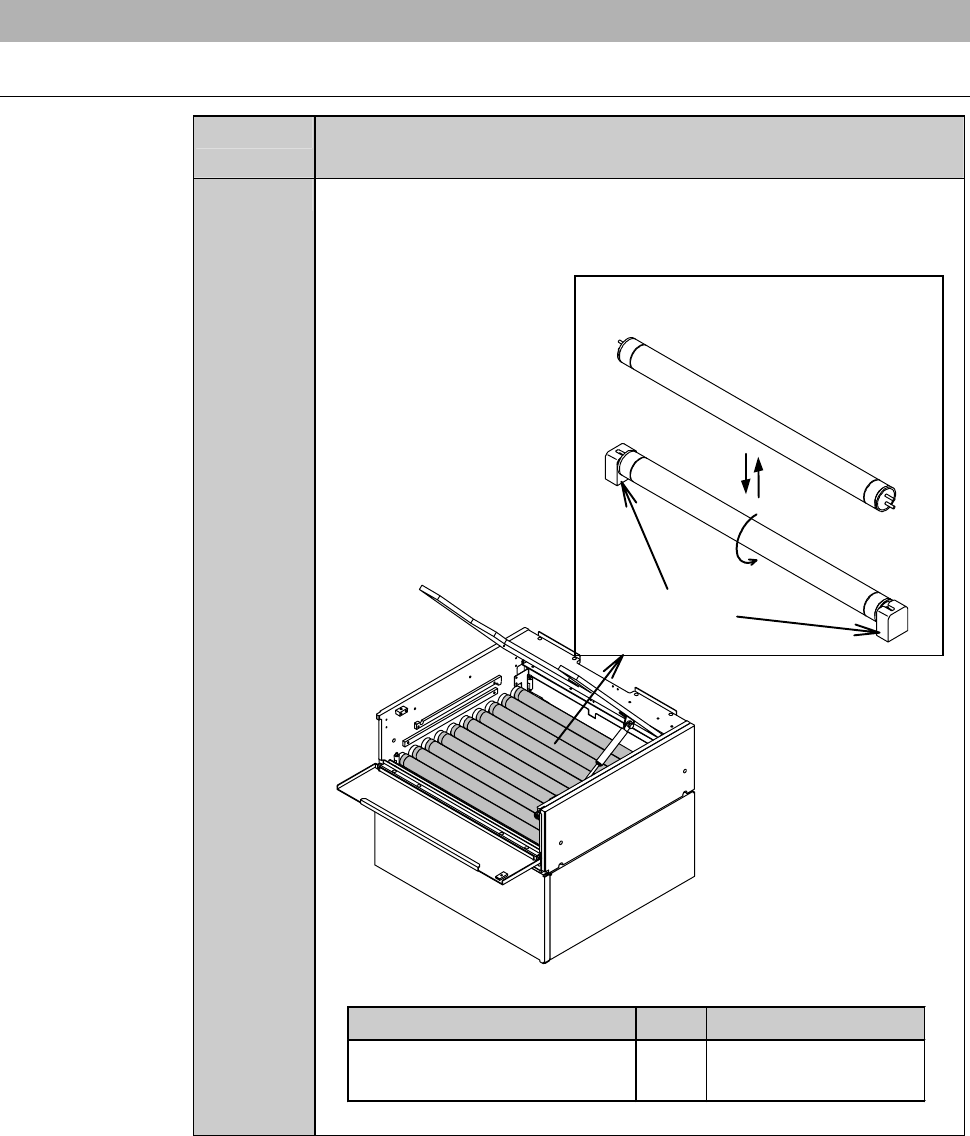

Unscrew the UV irradiation lamp.

- The ten of UV irradiation lamps are mounted in the UV

irradiation unit.

Removing the UV lamp

UV irradiation lamp assembly

Lamp sockets

Part Name Qty Part No.

Black light

(fluorescent lamp)

1 AQFL15BL-B

F-119

Procedures for replacing the UV irradiation lamp (Continued)

Step No. Do This

Mount the new UV irradiation lamps (10 for all).

- Mount the UV lamp so that the imprint of the lamp comes left

and faces down.

Wrong

Correct

Imprint

Continued in the next section.

F-120

5-3-4. Completion of UV irradiation lamp replacement

Procedures for completion of UV irradiation lamp replacement

Step No. Do This

(Continued from the previous section)

Reinstall the glass plate to its original position.

1) Align the U-shape notches located at the back corners of the

glass plate with the pen cylinders in the back.

Pen cylinder

2) Align the U-shape notches located at the front corners of the

glass plate with the front pen cylinders.

Pen cylinder
