Procedures for replacing the UV irradiation lamp (Continued)
Step No. Do This
2

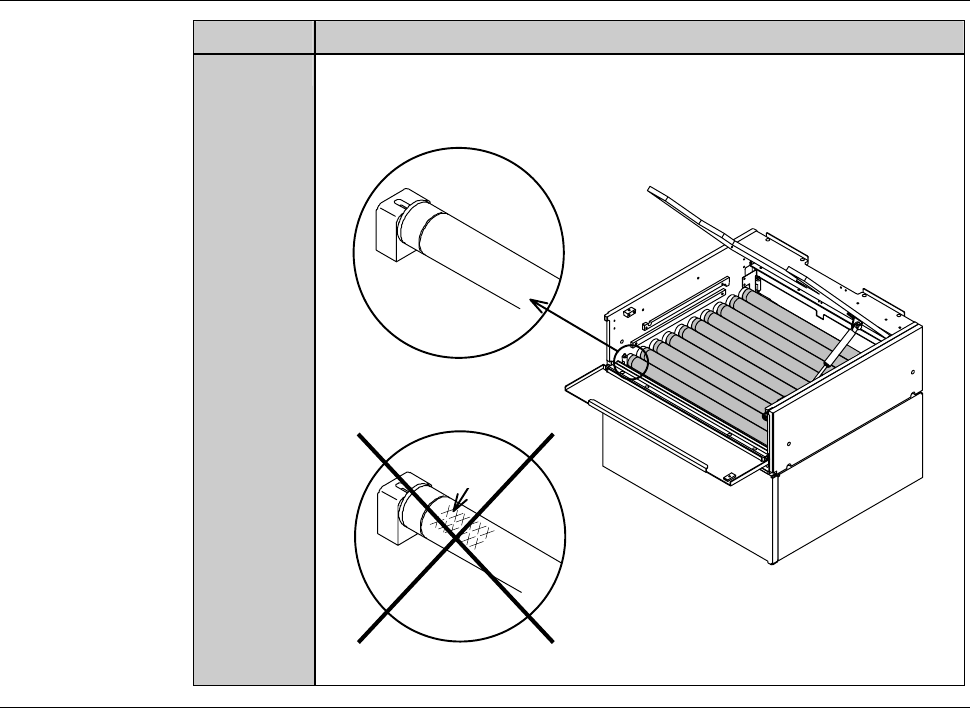

Mount the new UV irradiation lamps (10 for all).
- Mount the UV lamp so that the imprint of the lamp comes left
and faces down.
Wrong
Correct
Imprint
Continued in the next section.
F-120
5-3-4. Completion of UV irradiation lamp replacement
Procedures for completion of UV irradiation lamp replacement
Step No. Do This
(Continued from the previous section)
1
Reinstall the glass plate to its original position.
1) Align the U-shape notches located at the back corners of the
glass plate with the pen cylinders in the back.
Pen cylinder
2) Align the U-shape notches located at the front corners of the
glass plate with the front pen cylinders.
Pen cylinder
F-121
Procedures for completion of UV irradiation lamp replacement (Continued)
Step No. Do This
2
Reinstall the irradiation shield plate to its original position.
3
Reinstall the inspection plate to its original position.
4
Close the inspection cover.
5
Close the cassette stage.
6
Tighten the retaining screw on the cassette stage.
7
Turn ON the facility power source.
8
Open the circuit breaker lockout and turn ON the breaker.
9
Insert the key into the main switch and turn ON the main switch.
