B-5 Procedur es for re moving the c huck table (Conti nued) Step No. Do This 4 Press the <F6> button t o call up MACHINE MAINTENANCE screen [scr een 6.0]. - User password input is required to c all up this screen. …
B-4
1-1. Removing the chuck table
Procedures for removing the chuck table
Step No. Do This
1
Execute setup.
- For the setup procedure;
See the section B-7, [Setup] of the Operation Manual.
2
Press the <System Initial> button to effect system initialization.
3
Call up the MAIN MENU screen [screen 0.0].
B-5
Procedures for removing the chuck table (Continued)
Step No. Do This
4
Press the <F6> button to call up MACHINE MAINTENANCE
screen [screen 6.0].
- User password input is required to call up this screen.
- For the MACHINE MAINTENANCE screen,
see the section B-6-1 of the Data Maintenance Manual.
5
Make sure that both the spindle rotation and the wheel coolant
water come to a complete stop.
- If the spindle still rotates,
press the <Spindle> button to stop its rotation.
- If the wheel coolant water is still supplied,
press the <Cut Water> button to stop is supply.
B-6
Procedures for removing the chuck table (Continued)
Step No. Do This
6

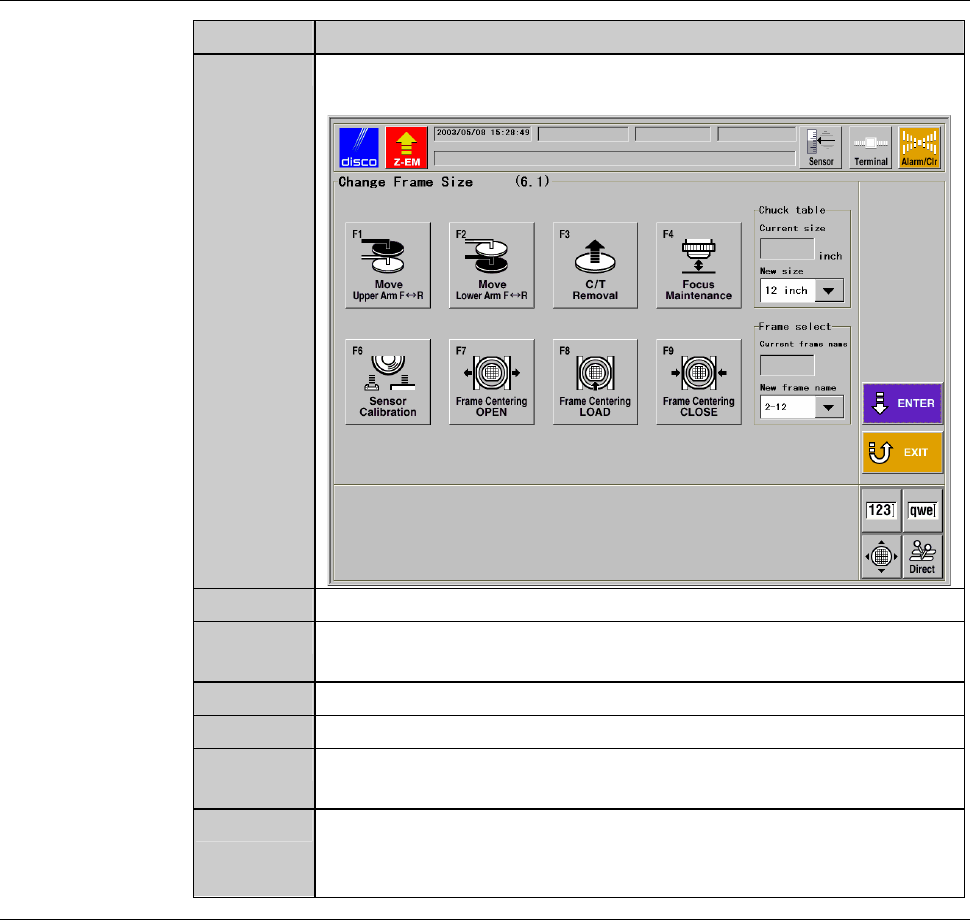

Press the <F1> button to call up CHANGE FRAME SIZE screen
[screen 6.1].
ÿ
G0102 PressENTERtowritedata.
8
2-8-1
7
Press the <F3> button to turn OFF the chuck table vacuum.
8
Press the Disco's logo button at the upper left corner of the screen
in order to lock up the touch panel.
9
Open the front arm section cover.
10
Remove the chuck table.
11
With a lint-free cloth moistened with alcohol, clean the removed
chuck table.
12
Enclose the cleaned chuck table in the packing material which
was supplied at the time of machine delivery, and then store the
chuck table.
Continued in the next section.
