B-13 Flange A remov ing ji g (1.2 k W S pindle) It is used to remove the flange A. [1.2 k W S pindle: R-ty pe Flange] Jig Name Part No. Removing jig (flange) MOKBN007
B-12
Torque wrench set (1.2 kW Spindle)
It is used to remove the lock bolt.
Torque wrench
Bit
Jig Name Part No.
Bit (S4) MOKBN005
Torque wrench MOKBN010
Nut demounting jig (1.2 kW Spindle)
It is used to remove or mount the flange B lock nut.
Jig Name Part No.
Nut demounting jig MAKBN003--A
B-13

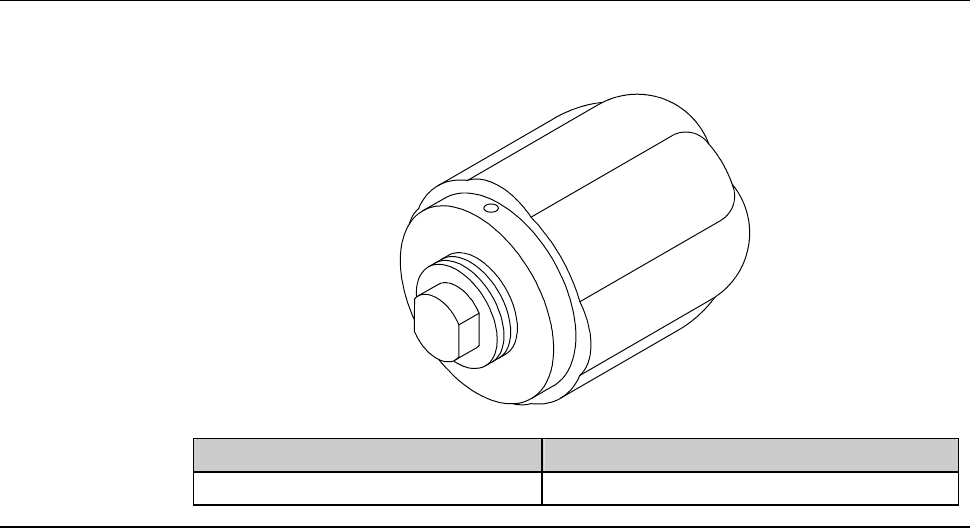

FlangeA removing jig (1.2 kW Spindle)
It is used to remove the flangeA.
[1.2 kW Spindle: R-type Flange]
Jig Name Part No.
Removing jig (flange) MOKBN007
B-14
2-1-1. Removing the flange (1.2 kW spindle)
Safety precautions for removing the flange (1.2 kW spindle)
WARNING
In the flange removal operation, you have to touch the spindle-axis
section and axis operating section directly by your hands. If the
spindle is not stopped, your hands or fingers may be caught or cut
off.
- Before opening the splash cover, visually make sure from outside
of the cover that the spindle is completely stopped.
- Ensure that no other person touches the machine during operation.
- While you don't use the touch panel, press the Disco's logo
button located at the upper left of the screen in order to lock up
and deactivate the touch panel.
CAUTION
In flange removal/installation, observe the following precautions to
protect the spindle from damage.
- Before starting replacement, call up and display the BLADE
REPLACEMENT screen [screen 4.1].
- Make sure that air is supplied to the spindle.
- Be sure to apply force only in the direction of cocentral of spindle
axis (Y-axis direction).
