B-24 2-2. Hu b Mount Replacement (1.2 kW S pindle) Operation flow The hub mount replacement procedu re consists of the following steps. 2-2-1 Removing the hub mount (1.2 kW spindle) 2-2-2 Mounting the hub mount (1.2 kW s…
B-23
Procedures for mounting the flange (1.2 kW spindle) (Continued)
Step No. Do This
(Continued from the previous section)
8
Press the <Close> button to release lock of the touch panel.
9
Press the <EXIT> button to call up the MAIN MENU
[screen 0.0].
10
Turn ON the spindle.
- Maximum rotating speed for 2-inch blade:
60,000 min
-1
(60,000 rpm)
11
Turn OFF the spindle.
12
Call up the BLADE REPLACEMENT screen [screen 4.1].
- The Y-axis moves to its origin position.
13
Press the Disco's logo button located at the upper left of the
screen to lock up the touch panel.
14
Open the splash cover.
15
Torque the lock bolt to 4.0 N·m again.
16
Press the <Close> button to release lock of the touch panel.
17
Perform a conditioning operation.
- For the conditioning procedures;
See the section C-2, [Hub Mount/Flange Conditioning].
18
Install the blade.
- For the blade installation procedure;
See the section B-6, [Blade Maintenance] of the Operation
Manual.
19
Close the splash cover.
20
Press the <System Initial> button to effect system initialization.
B-24
2-2. Hub Mount Replacement (1.2 kW Spindle)
Operation flow
The hub mount replacement procedure consists of the following steps.
2-2-1 Removing the hub mount (1.2 kW spindle)
2-2-2 Mounting the hub mount (1.2 kW spindle)
Type of the spindle and hub mount
Spindle Name
1.2 kW spindle Hub mount
Before operation
Have on hand the following jigs for hub mount replacement.
Jig Name Function
Bit
Torque wrench
Used to remove or mount the lock bolt.
Nut demounting jig Used to remove or mount the lock nut for
hub.
Hub mount removing jig set Used to remove the hub mount.
[Other]
Alcohol / Lint-free waste
B-25

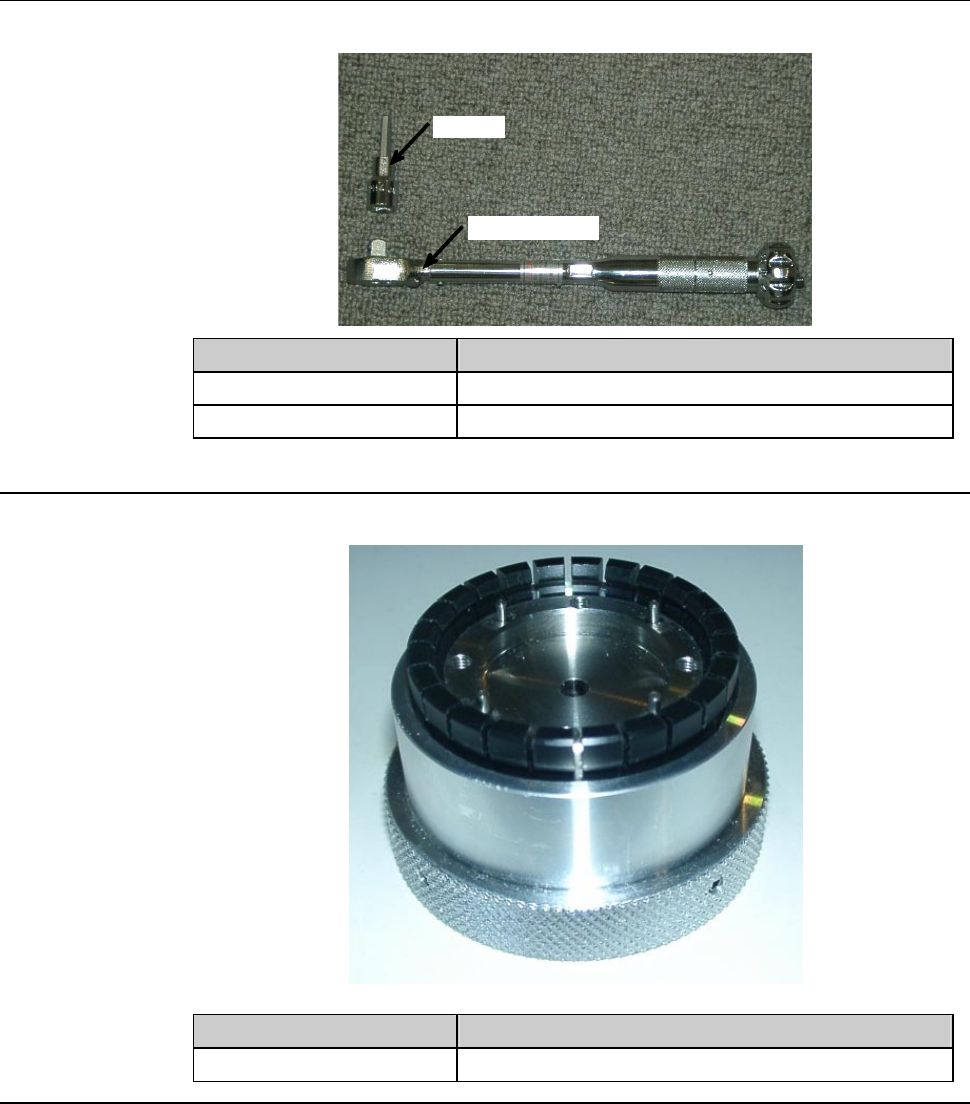

Torque wrench set (1.2 kW Spindle)
It is used to remove the lock bolt.
Torque wrench
Bit
Jig Name Part No.
Bit (S4) MOKBN005
Torque wrench MOKBN010
Nut demounting jig (1.2 kW Spindle)
It is used to remove or mount the lock nut for hub.
Jig Name Part No.
Nut demounting jig MAKBN003--A
