AT A GLANCE
Device Support for Flash
memories, Microcontrollers,
NAND & EEPROM
FlashPAK II™ Features
• FlashPAK II™ 4-site
programmer
• Networked operation
• Load from master or data file
• Ganged socket actuation
• Small, lightweight, portable
design
• Auto-start programming
• TaskLink Software
• Keypad, LCD display, and
Status LEDs
• PCMCIA card reader/writer
Actuator
• Unique actuating bar opens
sockets for easy insertion and
removal of devices
• Reduces parts damage and
socket wear
• Reduces operator fatigue
• Improves overall throughput
TaskLink™ Software
• Manage programming process
• Create programming tasks & kits
• Run yield and operator statistics
• Remote supervisor monitoring
via network
Networked
Programming System
Customer Benefits
Expanded Device Support
In addition to supporting a wealth of Flash memory devices, the FlashPAK II
architecture has been expanded to support the latest Flash microcontrollers.
Easy to Use
FlashPAK II’s unique actuator handle opens and closes multiple sockets
without stressing the device or the operator. User friendly features include
status LEDs, LCD display, control keypad and a grounding connector.
Easy Transition to Production – Your Connected Solution
The FlashPAK II is ideal for first article builds and NPI applications. As your
product moves to higher volume production, the programming tasks can be
easily transferred to Data I/O’s automated FlashCore programming systems
without altering the programming itself.
Additional Application Software
Also available is a broad portfolio of application specific software including
Data Mapper (for merging multiple files into a single image), Version Control
(for traceability and configuration management), Serial Number Server, and
multiple bad block schemes for NAND devices.
Worldwide Support – Asia, Europe and Americas
Data I/O is the only programming solutions company with direct operations
worldwide (engineering, sales, service and support) built on our 35-year
history of designing quality programming solutions.
www.dataio.com
The FlashPAK II™ Networked Programming System supports the latest high-
density Flash memory, NAND Flash, Microcontroller and EEPROM devices at
maximum programming speeds and highest quality per device. FlashPAK II is the
second generation programming architecture extending Data I/O’s unique design
for high-speed Flash support.
Optimized for High Speed
Flash Device Programming
High Performance
FlashPAK II™ programs devices at
theoretical speeds as specified by the
semiconductor manufactures.
Data I/O offers the most comprehensive
device research center on the Internet,
including accurate programming times
verified by customers.
Device Support
FLASH Memory
Supports devices from all major
semiconductor vendors:
AMD Atmel Fujuitsu
Hynix Hyundai Integrated Silicon
Intel M-Systems Macronix
Micron Mitsubishi NanoAmp
Renesas SST ST Micro
Samsung Sharp Spansion
Toshiba Winbond …and more!
NAND Bad Block Handling
• Skip-block technique included
• Add-on package of manufacturer
approved NAND Flash bad block handling
methods available
Microcontrollers
Atmel Freescale Fujitsu
Hitachi Intel Microchip
Mitsubishi Motorola NEC
Philips Renesas TI…and more!
Supports All Popular Packages:
TSOP TSOP2 CSP SOIC SSOP
BGA FBGA µBGA EBGA TFBGA
QFP TQFP PLCC
Program Read Verify
Blank Check Illegal Bit Check Erase
Secure Pin Continuity
Optional Data I/O Software
NAND Bad Block Schemes
Serial Number Server
Data Mapper
Version Control
FlashPAK II™ Specifications
Network Interface
• RJ45 connector
• Requires IP address
Electrical Requirements
• Operating Voltage: 110 to 240 VAC
• Power Consumption: 100 watts
• Frequency Range: 50 to 60 Hz
Physical Specifications
• Width: 23.5cm (9 1/4“)
• Depth: 34cm (13 3/8“)
• Height: 15cm (5 9/16“)
• Weight: 3kg (6 lbs. 9 oz.)
Environmental
• Normal office environment/power
Temperature
• Operating: 0°to +50°C (+32°to 122°F)
• Transportation: -4°to +70°C (+40°to
158°F)
• Storage: 0°to +70°C (+32°to 158°F)
Humidity
• Operating: up to 70% non-condensing
• Storage: up to 80% non-condensing
Services
• One year warranty
• One year renewable subscription to new
programming algorithms and TaskLink
software updates.
TaskLink PC Workstation
Requirements
• Personal Computer with Microsoft®
Windows 95, 98, NT or XP operating
system
• Hard disk space: 90 MB minimum plus
space for device data
• PCMCIA card slot (For job cards,
optional)
• Network interface (optional)
• CD ROM drive
• Serial or bus mouse
North America:
Data I/O Corporation
Redmond, Washington, USA
Web site: www.dataio.com
e-mail: SalesDIOAmerica@dataio.com
Europe:
Data I/O GMBH
Graefelfing, Germany
Web site: http://www.dataio.de
e-mail: EuropeSales@dataio.com
China:
Data I/O Electronics (Shanghai) Co. Ltd
Shanghai, China, PRC
Web site: www.dataio.cn
e-mail: ChinaSales@dataio.com
Other Regions:
To Contact Local Data I/O Representatives
Visit our Web site: www.dataio.com/contact
FlashPAK
II

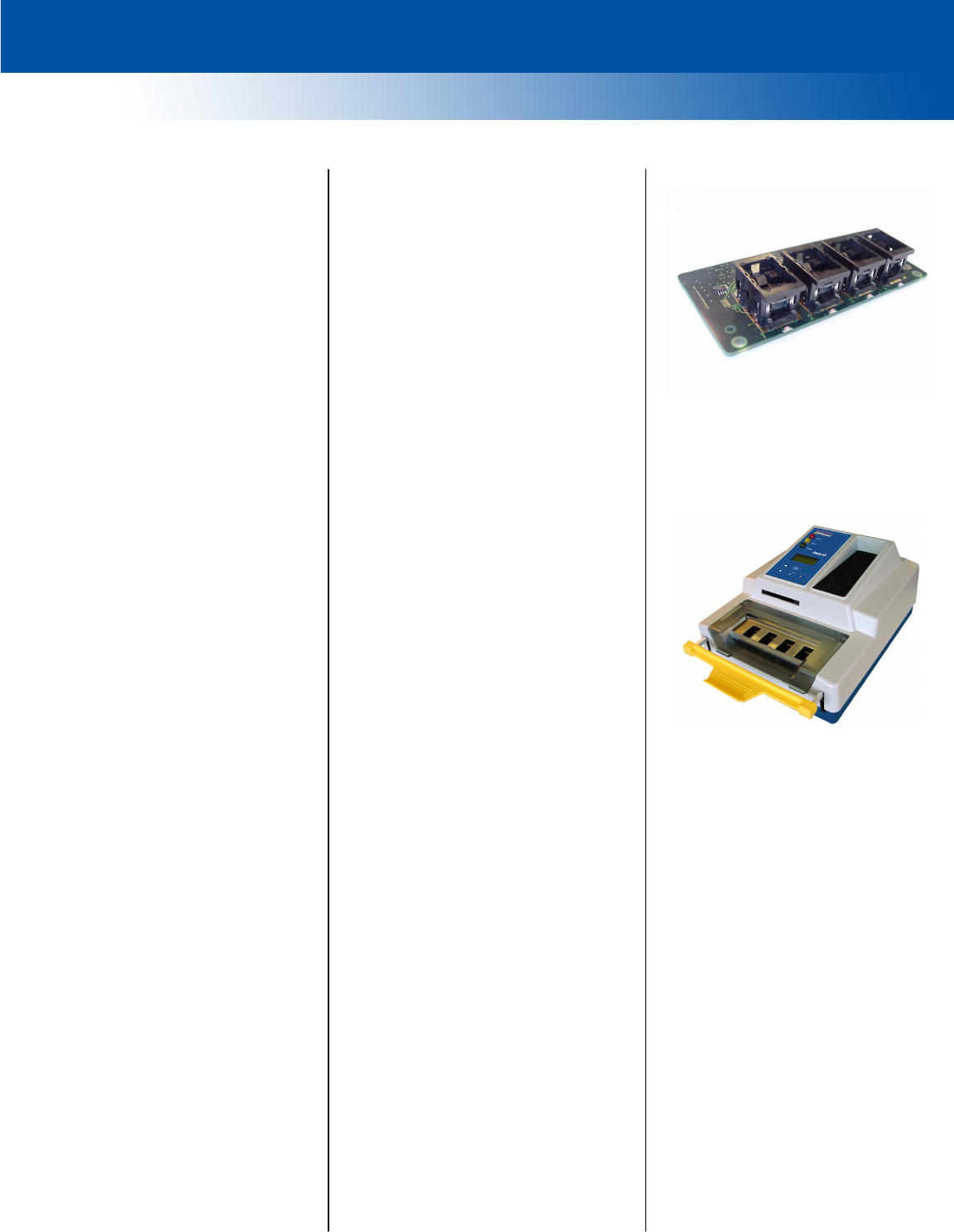

FlashPAK II supports both
standard socket modules and
High Performance (longer life)
Socket modules
Compact, portable desktop
system
