Installation of retaining clamp for lifting axis/alignment of spindle/check of gear fixing for spindle, MTC2
06/2004 Edition
26
: Remove the metal rail on both sides.
2
2
: Remove the two lower cover plates on both sides.
2
Metal rail
Lower cover plates
Installation of retaining clamp for lifting axis/alignment of spindle/check of gear fixing for spindle, MTC2
06/2004 Edition
27
2
2
2
2
2
2
2
2
2

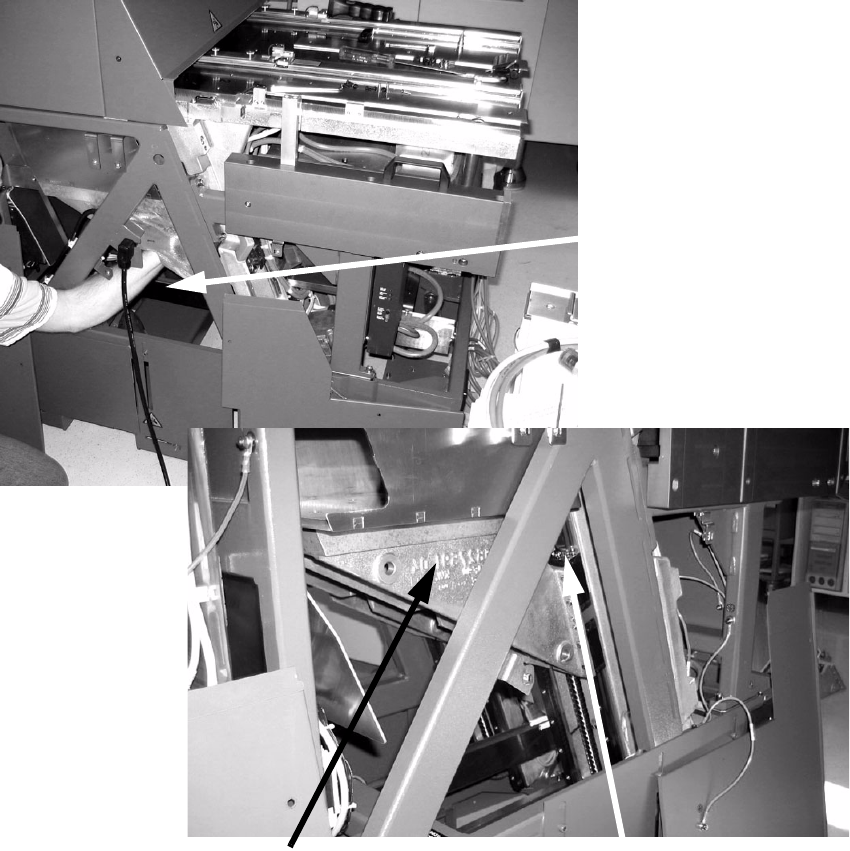

Position of the ball bearing on the supporting bracket
Supporting bracket
Reach through
this opening
Installation of retaining clamp for lifting axis/alignment of spindle/check of gear fixing for spindle, MTC2
06/2004 Edition
28
: Check the location of the grub screw. If there are grub screws in both holes, the retaining
clamps do not have to be retrofitted.
If a grub screw is missing from one of the two holes, the retaining clamps will have to be retro-
fitted, and the assembly steps are different for each clamp (see image).
2
: Continue from the next section or the section after that, depending on the location of the hole.
2.4.1 Inserting the retaining clamp if the hole is at the back
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
The following photographs were taken with the supporting bracket removed for greater clarity. 2
2

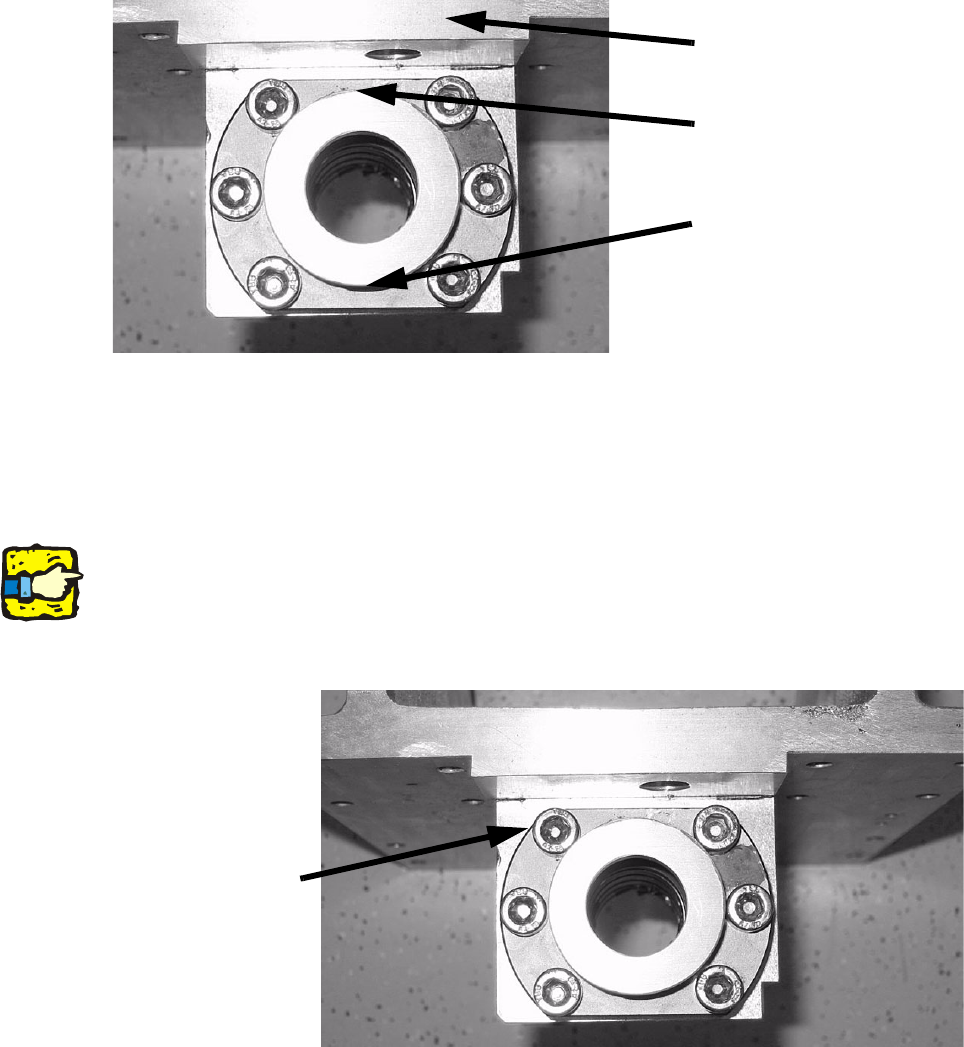

: Remove the size 4 hexagon socket head screw and keep on one side.
2
Assembly for hole at back
Assembly for hole at front
Cassette holder
Remove this screw
(small ratchet screw-
driver with size
4 hexagon head)
