Ref No. Remark s R 1 Q'ty 141-E 塗布ヘ ッド :NP M DI SP ENS ER HE AD :NP M ｲﾗｽﾄ No. Part No. 品 名 品番 数量 R 2 パーツリスト Kit N o . キット品 番 Kit Name キット名称 N610083014AA Part Name 備 考 ｾｸｼｮﾝNo. PARTS LIST Section No. R 3 HOLDER 2 1 …
141-E
塗布ヘッド:NPM
DISPENSER HEAD:NPM

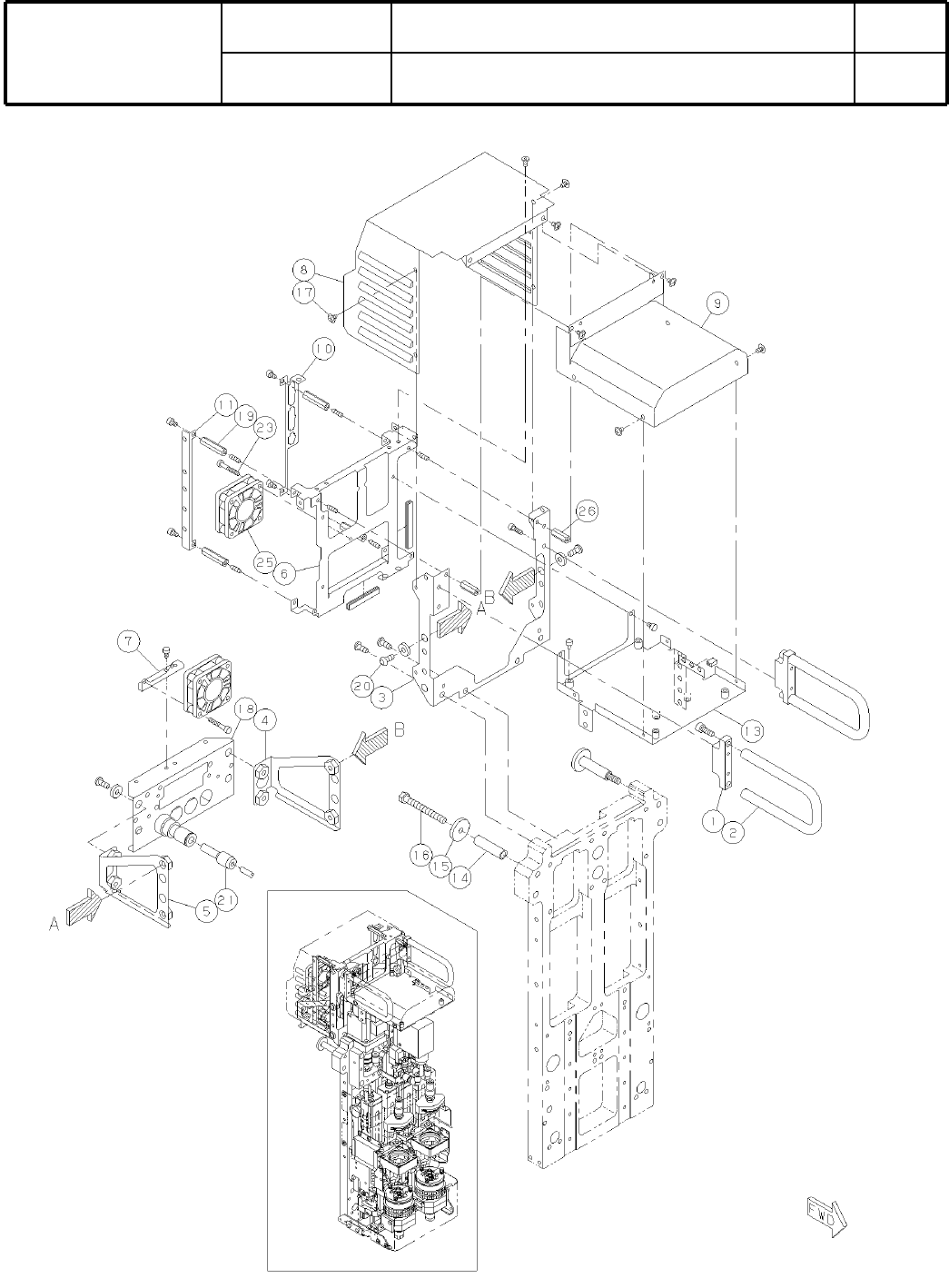

パーツレイアウト
Ki
t
N
o
.
キット
品番
Kit Name
キット名称
N610083014AA
ｾｸｼｮﾝNo.
PARTS LAYOUT
Section No.
--
O459
( KN610083014AA-24-5 )
Ref
No.
Remarks
R
1
Q'ty
141-E
塗布ヘッド:NPM
DISPENSER HEAD:NPM
ｲﾗｽﾄ
No.
Part No.
品 名品番 数量
R
2
パーツリスト
Kit N
o
.
キット品
番
Kit Name
キット名称
N610083014AA
Part Name
備 考
ｾｸｼｮﾝNo.
PARTS LIST
Section No.
R
3
HOLDER
2
1 N210108825AD
COLLAR
2
3 N210136910AC
HOLDER
2
4 N210151941AB
PIN
6
5 N210151938AB
SPRING
6
6 N210153222AA
HOLDER
2
8 N210159204AB
ADAPTER-HEAD
2
9 KXFB03LMA00
HOUSING
2
10 N210136912AD
DOG
2
13 N210135671AC
PLATE
1
14 N210136917AB
PLATE
1
16 N210136919AB
NOZZLE HOLDER
2
17 N610138872AA
OUTER SHAFT
1
18 N610138873AA
CAP
1
19 N210163600AC
COLLAR
1
20 N210135664AA
HOLDER
1
21 N210161716AB
SHAFT
1
22 N210161717AA
CAP
1
23 N210135668AB
SPRING
1
24 N210135669AA
SCREW
2
25 N510018353AA
Hexagon socket set screw Cup point M2X2-45H A2J (Trivalent)
PIN
1
26 KXF0DAAAA00 1615101-16040
O-RING
1
27 N554C00502P3 CO0502P3
BOLT
6
28 N510023201AA SSH-M3X6-EL
BEARING
4
29 N510004338AA 6803ZZCM NS7
NUT
2
30 N510003048AA FU03SUS
BEARING
4
31 KXF0DYKZA00 6704LLF
PIN
4
32 N510020581AA MMS2.5-6
PLUNGER
4
33 N510022876AA 87PFSSN4
RING
2
34 0864C582221
Bancord Round Belts (#480-PHI3) (Drawing available)
O-RING
2
35 N5541AP18 P18 1-type A
JOINT
2
36 N510048080AA KSH04-01S
BOLT
4
38 N510017261AA
Hexagon socket head cap screw M2X8-10.9 A2J (Trivalent)
S-RING
2
39 KXF0ASFAA00 ISTW-18
WASHER
2
41 N510048084AA 87FWSSB-D20.0-V17.0-T1.5
GEAR
2
42 N210151950AA
GEAR
2
43 N210136899AA
PLATE
2
46 N210151940AA
HOLDER
2
47 N210151939AA
COLLAR
4
48 N210136214AB
COLLAR
2
49 N210135665AA
O-RING
1
50 N554C03835N0 CO3835N0
HOLDER
2
51 N210151954AA
WASHER
2
52 N210136909AA
WASHER
2
53 N210136908AA
SCREW
14
55 N510018225AA
Cross recessed Truss head machine screw M2.5X4-4.8 A2J (Trivalent)
WASHER
6
56 N510052725AA 87FWSSM-D6.0-V3.0-T1.0
SCREW
4
57 N510018251AA
Cross recessed Truss head machine screw M3X5-4.8 A2J (Trivalent)
COVER
2
58 N210151953AA
