2 Safety 2.3 Safety instructions for transporting the machine Instruction manual ASM ProcessLens 03/2021 31 2.2.5 Other Labels 2.2.5.1 Label - External grounding point External grounding point Please observe chapter 2.8 …
2 Safety
2.2 Warning labels
30 Instruction manual ASM ProcessLens 03/2021

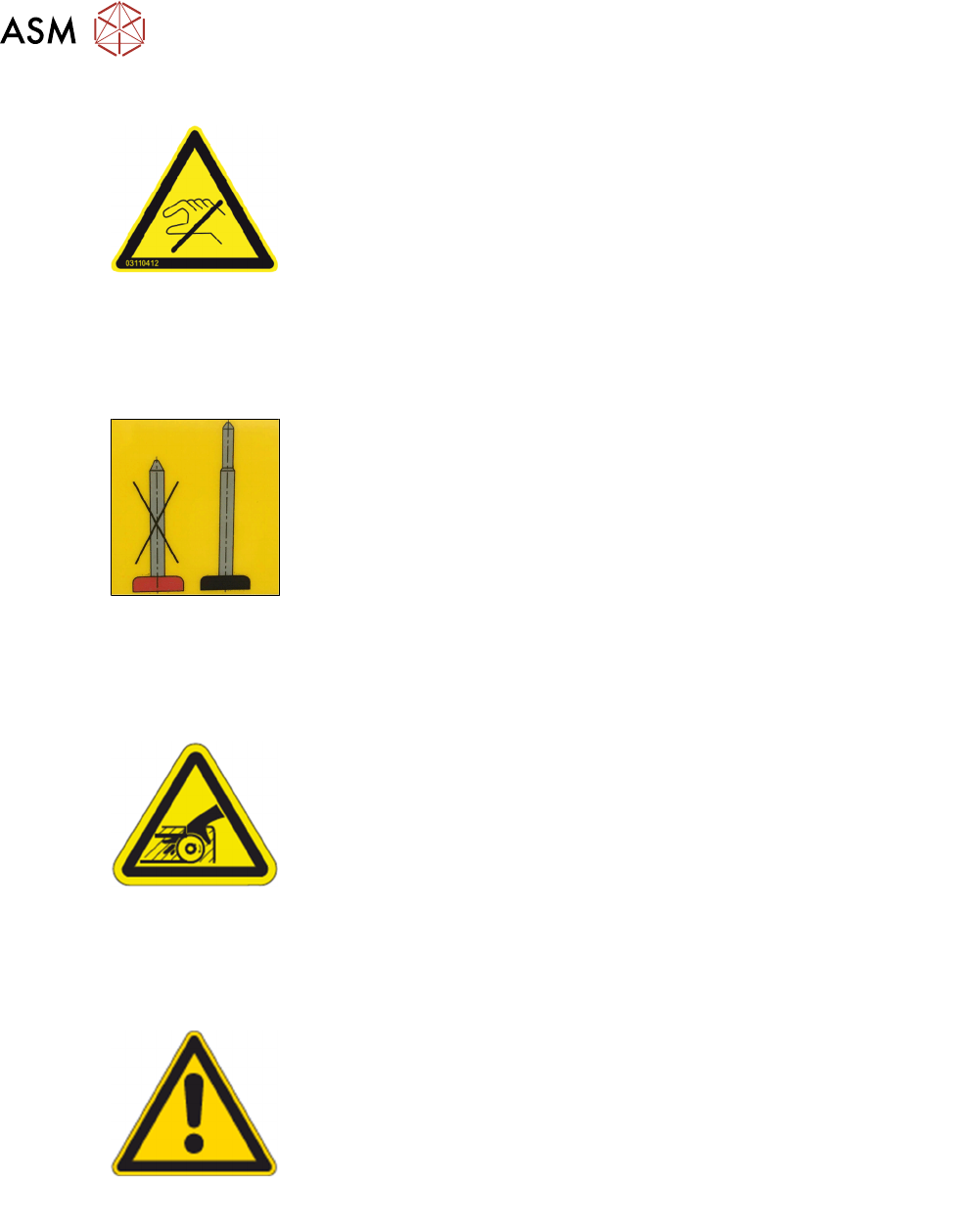

2.2.4.13 Warning label - Sensitive conveyor side
Fig.24: Warning label - Sensitive conveyor side
[03110412-xx] (quantity per machine: 2)
Sensitive conveyor side
The conveyor sides are highly sensitive and
may not be moved unless the brakes have been
released.
Moving the sides without releasing the brakes
can cause irreparable damage to the conveyor
sides.
See fig. "Warning labels – dual conveyor" [}25]
2.2.4.14 Warning label - Support pins 94 mm
Fig.25: Warning label - Support pins 94 mm
[00368570-xx] (quantity per machine: 2)
Support pins 94 mm
Risk of damage to PCBs if wrong support pins
are used.
See fig. "Warning labels – dual conveyor" [}25]
2.2.4.15 Warning label - Entanglement hazard
Fig.26: Warning labels - Entanglement hazard
[03136855-xx] (quantity per machine: 5)
Moving belt hazard
Reaching into the machine can lead to injuries
to the arms and hands from skin and clothing
contact.
► Do not reach into the machine while it is
running.
See fig. "Warning labels – dual conveyor" [}25]
2.2.4.16 Warning label - General warning/attention
Fig.27: Warning label - General warning/attention
[03079298-xx] (quantity per machine: 1)
General warning/attention
Risk of part damage if cover is removed!
See 2.2.3 "Warning lables on the conveyor" [}25]
2 Safety
2.3 Safety instructions for transporting the machine
Instruction manual ASM ProcessLens 03/2021 31
2.2.5 Other Labels
2.2.5.1 Label - External grounding point
External grounding point
Please observe chapter 2.8 ESD guidelines.
Label - General warning/attention [00359574-xx] (quantity per machine: 1)
See fig. "Warning labels front view" [}20]
2.2.5.2 Label – Ground
Ground
All ground termination points must be connec-
ted.
Label - Ground on various locations
2.3 Safety instructions for transporting the machine
Use a forklift truck with the following specification to carry the machine:
Fork length: min. 1800 mm
Carrying power: min. 6000 kg
Clear width between forks: min. 350 mm
WARNING
Risk of tipping
If the required specification cannot be applied to the forklift, there is a risk that the forklift
will tip over when carrying the machine.
Transportation of the machine is described in section 4.1 "Transport and delivery configura-
tion" [}57].
2 Safety
2.4 Safety instructions for operating the machine
32 Instruction manual ASM ProcessLens 03/2021
2.4 Safety instructions for operating the machine
2.4.1 Safety instructions for closing the protective covers
CAUTION
Risk of crushing hands, if the protective covers are not closed correctly.
To avoid risk of injury when closing the protective covers on the machine, the operator must
instruct the personnel.
► Follow the instructions below when handling the protective covers.
Fig.28: Safety instructions for closing the protective cover
1 Handle 2 Monitor
► To open or close the protective cover, always take hold of these by the handle (1).
► When closing, do not reach into the gap between the protective cover and the machine panel.
► When closing the protective cover, make sure that the area in which it is swiveled is free of
obstruction and that no other people are at risk of injury.
► Pay attention to the monitor (2) and make sure it is not in the way of the closing door which
could result in irreversible damage.
