2 Safety 2.4 Safety instructions for operating the machine 32 Instruction manual ASM ProcessLens 03/2021 2.4 Safety instructions for operating the machine 2.4.1 Safety instructions for closing the protective covers CAUTI…
2 Safety
2.3 Safety instructions for transporting the machine
Instruction manual ASM ProcessLens 03/2021 31
2.2.5 Other Labels

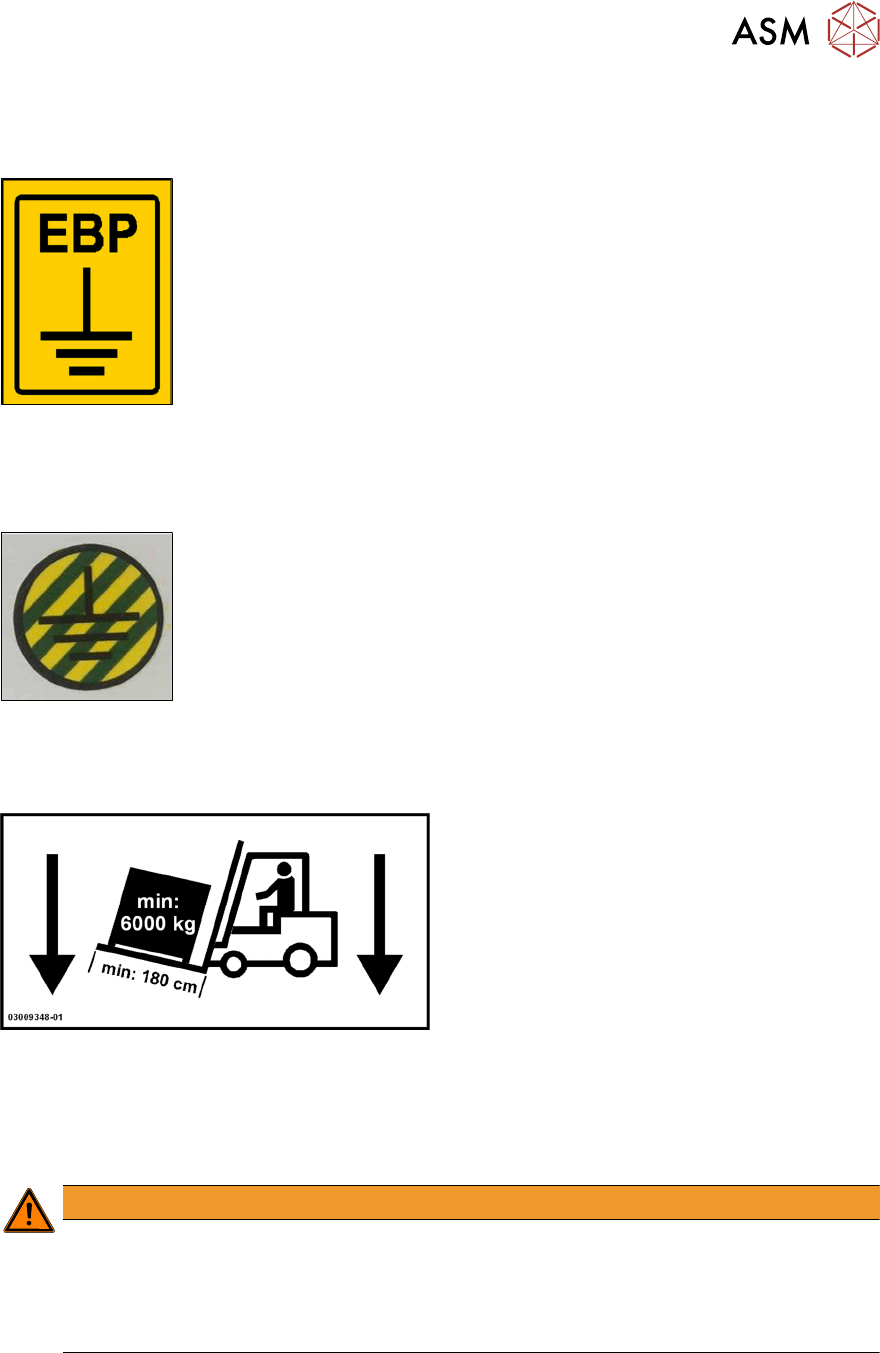

2.2.5.1 Label - External grounding point
External grounding point
Please observe chapter 2.8 ESD guidelines.
Label - General warning/attention [00359574-xx] (quantity per machine: 1)
See fig. "Warning labels front view" [}20]
2.2.5.2 Label – Ground
Ground
All ground termination points must be connec-
ted.
Label - Ground on various locations
2.3 Safety instructions for transporting the machine
Use a forklift truck with the following specification to carry the machine:
Fork length: min. 1800 mm
Carrying power: min. 6000 kg
Clear width between forks: min. 350 mm
WARNING
Risk of tipping
If the required specification cannot be applied to the forklift, there is a risk that the forklift
will tip over when carrying the machine.
Transportation of the machine is described in section 4.1 "Transport and delivery configura-
tion" [}57].
2 Safety
2.4 Safety instructions for operating the machine
32 Instruction manual ASM ProcessLens 03/2021
2.4 Safety instructions for operating the machine
2.4.1 Safety instructions for closing the protective covers
CAUTION
Risk of crushing hands, if the protective covers are not closed correctly.
To avoid risk of injury when closing the protective covers on the machine, the operator must
instruct the personnel.
► Follow the instructions below when handling the protective covers.

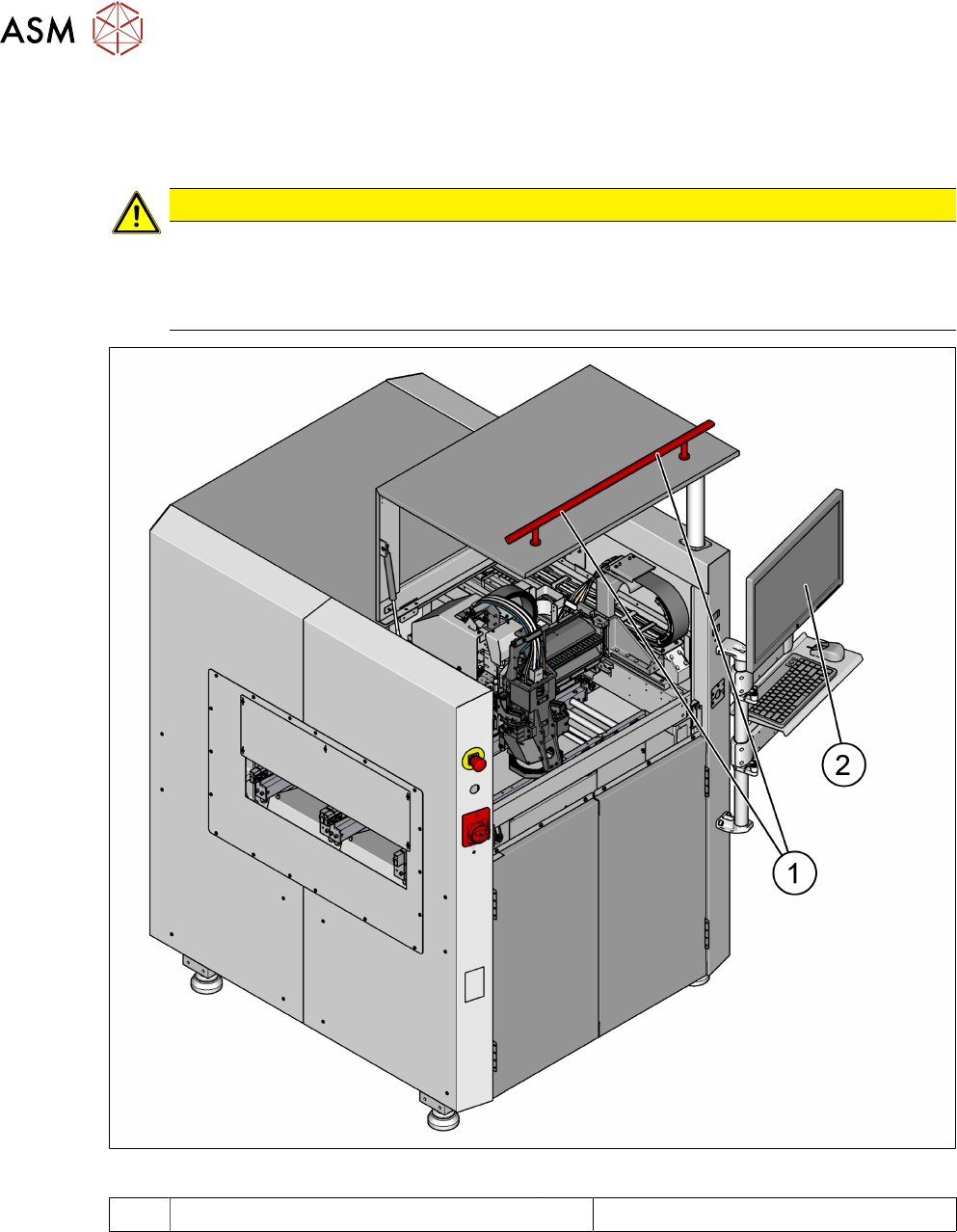

Fig.28: Safety instructions for closing the protective cover
1 Handle 2 Monitor
► To open or close the protective cover, always take hold of these by the handle (1).
► When closing, do not reach into the gap between the protective cover and the machine panel.
► When closing the protective cover, make sure that the area in which it is swiveled is free of
obstruction and that no other people are at risk of injury.
► Pay attention to the monitor (2) and make sure it is not in the way of the closing door which
could result in irreversible damage.
2 Safety
2.4 Safety instructions for operating the machine
Instruction manual ASM ProcessLens 03/2021 33
2.4.2 Insertion of board into the input and output conveyor
WARNING
Risk of injuries to hands when inserting a board into the input conveyor
When manually inserting the board into the input conveyor, hands could be caught by the
gantry and injured due to unprohibited access to the hazard area of the gantry.
The operating company is responsible for ensuring that the input and output conveyors are
covered to prevent anyone reaching into these areas with hands or arms.
All upstream and downstream modules (printer, placement machine, conveyors, etc.) must
take these same precautions.
2.4.3 ESD safety of machine
Please note chapter 2.8 "ESD guidelines" [}44].
