3 Machine description 3.1 Overview of the modules 52 Instruction manual ASM ProcessLens 03/2021 1 Front board edge 2 Max. 2.5 mm 3 Conveyor rail 4 PCB transport direction 5 Max. 2.5 mm 6 Max. 3 mm 3.1.5.2 Maximum PCB war…
3 Machine description
3.1 Overview of the modules
Instruction manual ASM ProcessLens 03/2021 51
1 Fixed clamped edge 2 Printed circuit board
3 Movable clamping device 4 Conveyor rail
5 +/- 4.5 mm
PCB warpage in the direction of transport + PCB thickness < 5.5 mm. Bending up of board edge
max. 2.5 mm.
1 Fixed clamped edge 2 Front board edge
3 Max. 2.5 mm 4 Conveyor belt
5 PCB transport direction 6 5.5 mm
3 Machine description
3.1 Overview of the modules
52 Instruction manual ASM ProcessLens 03/2021

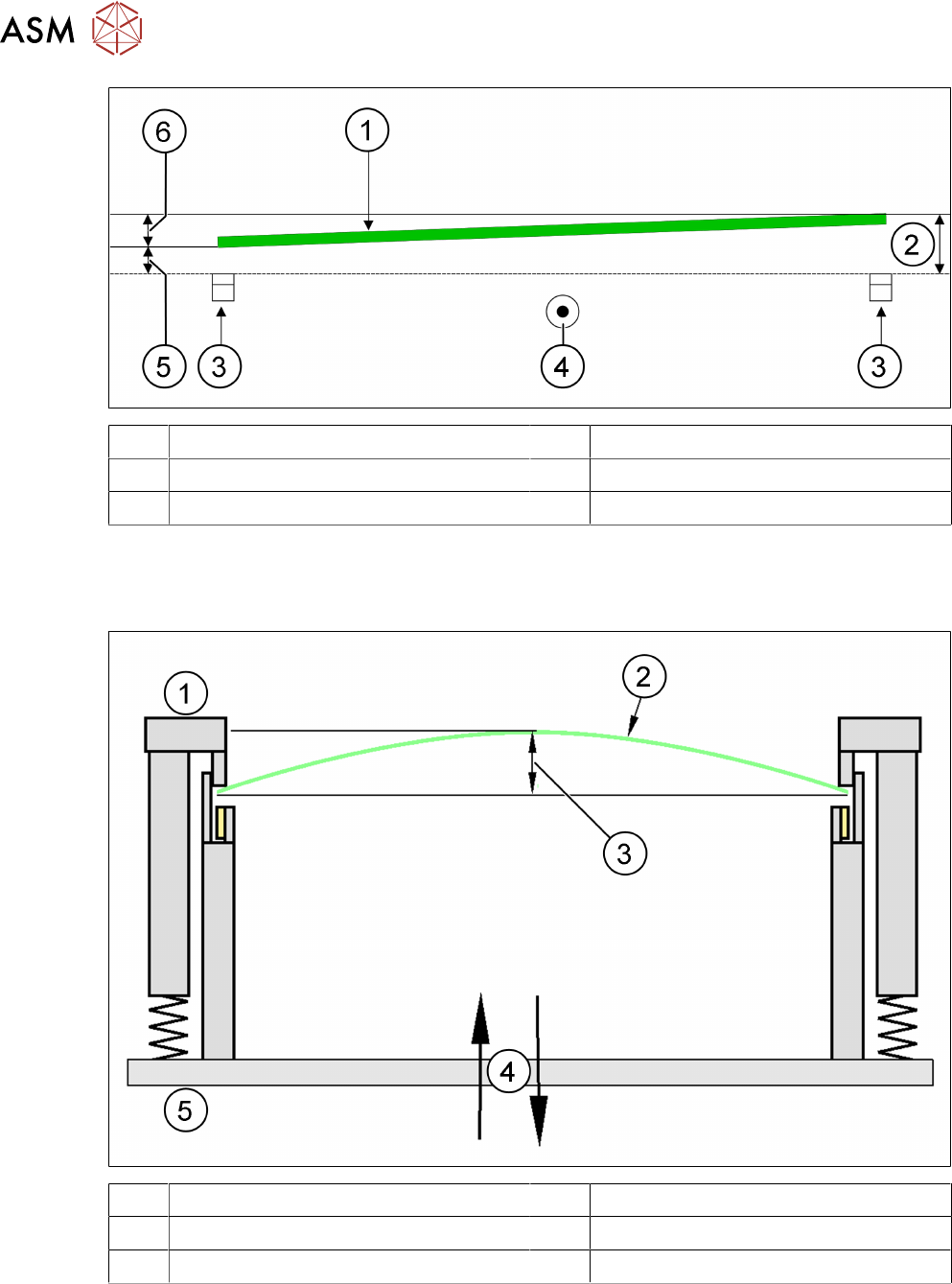

1 Front board edge 2 Max. 2.5 mm
3 Conveyor rail 4 PCB transport direction
5 Max. 2.5 mm 6 Max. 3 mm
3.1.5.2 Maximum PCB warpage allowed during processing of the board
There is active PCB warpage measurement and tracking during the inspection so that images re-
main in sharp focus, ensuring best height measurement accuracy on the market.
1 Fixed clamped edge 2 Printed circuit board
3 ≤ 2 mm 4 Movable clamping device
5 Conveyor rail
PCB warpage down, max. 4.5 mm
3 Machine description
3.2 Technical data
Instruction manual ASM ProcessLens 03/2021 53

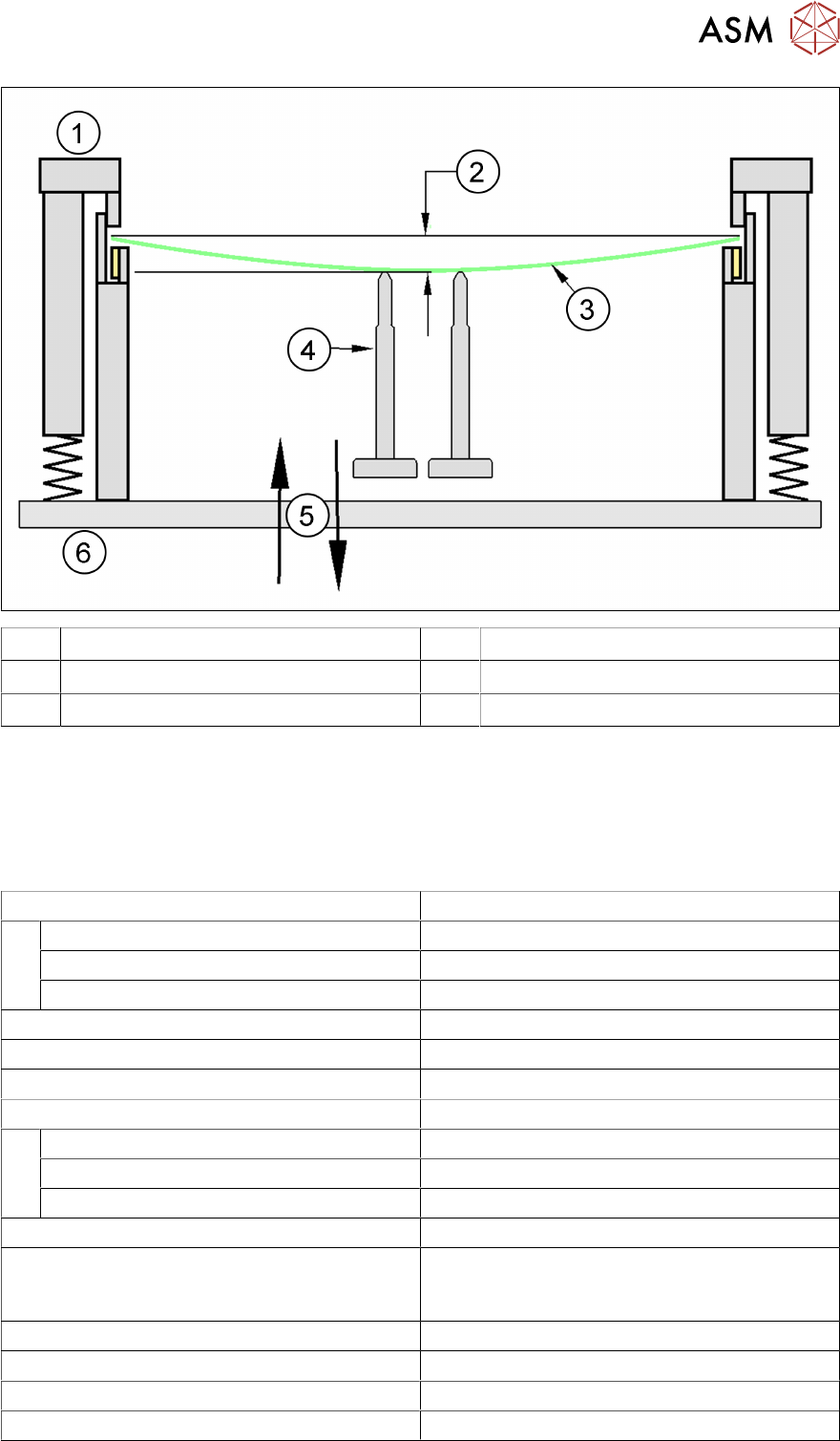

1 Fixed clamped edge 2 0.5 mm
3 Printed circuit board 4 Magnetic pin support
5 Movable clamping device 6 Conveyor rail
► Use magnetic pin supports to achieve this value.
3.2 Technical data
3.2.1 Dimensions and ambient conditions for machine operation
Machine dimension
Length along PCB transport direction 1130 mm
Width 1300 mm
Height at a conveyor height of 950 mm 1600 mm
Machine weight 780 kg
Adjustable monitor and keyboard height range 880 - 1140 mm
Floor load 5 kN/m²
Machine ground clearance
(for PCB conveyor height 900 mm) machine height is 1831 mm ± 15 mm
(for PCB conveyor height 930 mm) machine height is 1861 mm ± 15 mm
(for PCB conveyor height 950 mm) machine height is 1881 mm ± 15 mm
Room temperature Between 15°C and 35°C
Atmospheric humidity 30% to 75% (no higher than 45% on average to
prevent any possibility of condensation in the
machine)
Operating temperature range Between 0°C and 50°C
Operating humidity max. 50% at 40°C
Operating altitude max. up to 1000m sea level
Max. noise emissions 78 dB (A)
