3 Machine description
3.2 Technical data
Instruction manual ASM ProcessLens 03/2021 55
3.2.5 Conveyor specifications
Single conveyor Flexible dual con-
veyor
Dual conveyor in
"single conveyor"
mode
Minimum PCB size L x W 50 mm x 50 mm 50 mm x 45 mm 50 mm x 45 mm
Maximum PCB size L x W 610 mm x 560 mm 375 mm x 260 mm 375 mm x 460 mm
PCB thickness range 0.5 mm to 4.5 mm
PCB warpage See PCB warpage
Maximum PCB weight Max. 3.0 kg Max. 3.0 kg
Underside PCB clearance:
Along the stopper bar
Outside the stopper bar
25 mm
25 mm
PCB conveyor height:
Option
Standard
Option SMEMA
900 mm
930 mm
950 mm
Type of interface SMEMA or IPC-HERMES-9852
Conveyor communication
interface
Left to right
Right to left
Outer / outer
Right / right
Left / left
3.2.6 Inspection capabilities
Pixel size (camera resolution) 15 μm x 15 μm
PCB Warpage compensation range ±6.5 mm (incl. Z-axis travel range)
FoV size 30 mm x 30 mm
Inspection speed Up to 30 cm
2
/s
Height resolution 0.37 μm
Height accuracy on calibration target ≤ 1 μm
X/Y gantry accuracy ±12.5 µm at 3 σ
3.2.7 Solder paste inspection capabilities
Measurement Shadow-free
Paste measurement functions Volume, area, height, X-and Y-offset, shape,
bridging, coplanarity
Maximum paste height 1000 μm
Minimum paste size 90 μm x 130 μm
Minimum paste pitch 75 μm
Height repeatability on solder paste ≤ 1 μm at ± 3 σ
Volume repeatability on solder paste ≤ 3 % at ± 3 σ
Area repeatability on solder paste ≤ 3 % at ± 3 σ
Gage Repeatability and Reproducibility (GRR) ≤ 10 %
3.2.8 Program generation specifications
Program generation < 10 min.
Offline programming available
Supported Gerber formats RS-274X
3 Machine description
3.2 Technical data
56 Instruction manual ASM ProcessLens 03/2021
4 Setting up and commissioning
4.1 Transport and delivery configuration
Instruction manual ASM ProcessLens 03/2021 57
4 Setting up and commissioning
4.1 Transport and delivery configuration
4.1.1 Shipping packaging
The ASM ProcessLens machine will be shipped on a wooden pallet, packaged in plastic film, or in
a wooden crate.
4.1.1.1 Transporting environment condition
Temperature max. 70°C
Humility 60%
4.1.1.2 Shipping packaging dimensions
The dimensions of the pallets and wooden crates are listed in the following table:
Machine (L x W x H)
Wooden pallet 1850mm x 1500mm
Wooden crate 1850mm x 1500mm x 1850mm

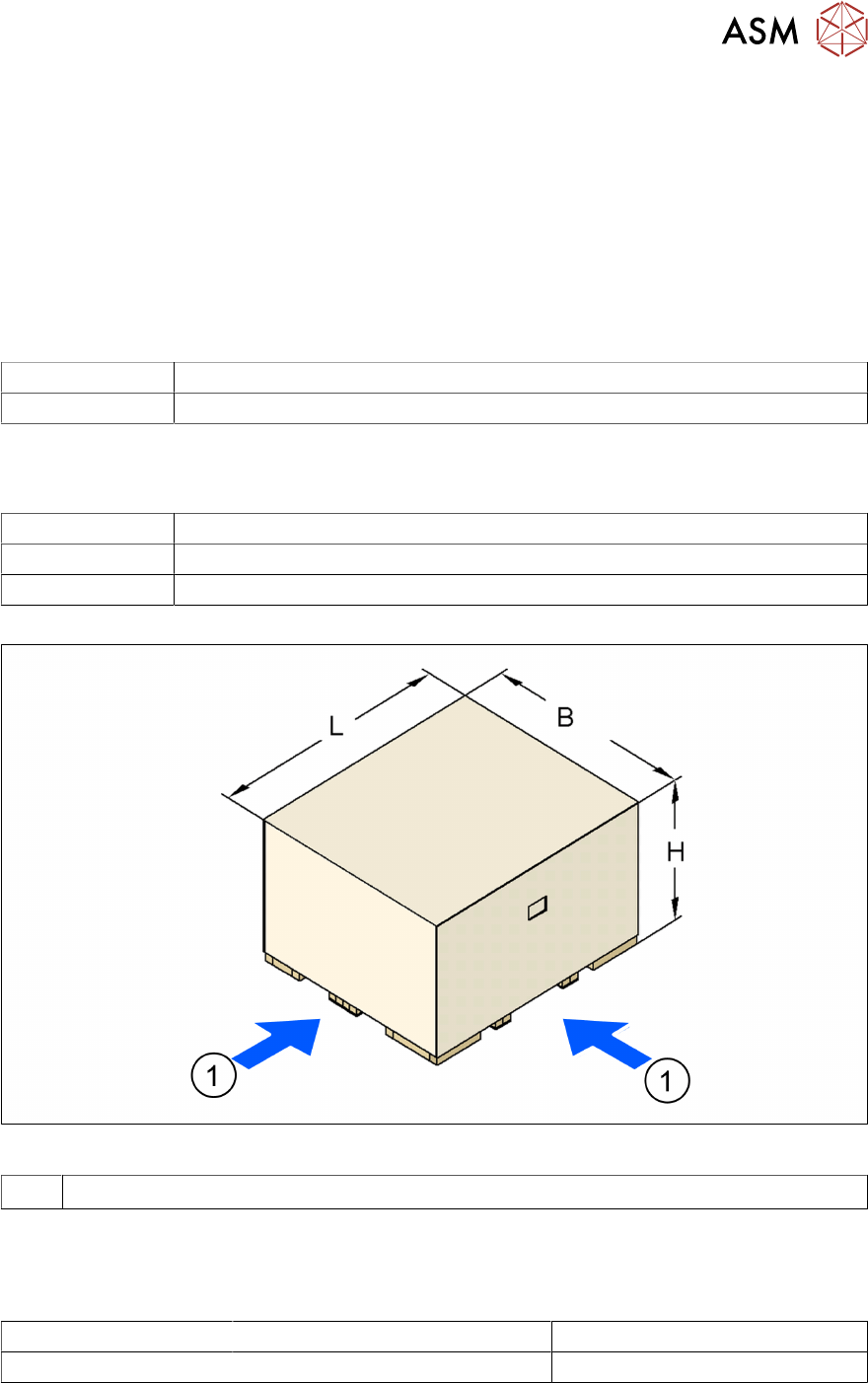

Fig.38: Transport crate - dimensions in millimeters
1 Forklift attachment points
4.1.1.3 Weight of machine when ready for dispatch
The following table contains the weights of the machines prepared for dispatch, including pack-
aging.
Machine Dispatch on wooden pallet Dispatch on wooden crate
ASM ProcessLens 840 kg 940 kg
