4 Setting up and commissioning 4.1 Transport and delivery configuration Instruction manual ASM ProcessLens 03/2021 57 4 Setting up and commissioning 4.1 Transport and delivery configuration 4.1.1 Shipping packaging The A…

100%1 / 94
3 Machine description
3.2 Technical data
56 Instruction manual ASM ProcessLens 03/2021
4 Setting up and commissioning
4.1 Transport and delivery configuration
Instruction manual ASM ProcessLens 03/2021 57
4 Setting up and commissioning
4.1 Transport and delivery configuration
4.1.1 Shipping packaging
The ASM ProcessLens machine will be shipped on a wooden pallet, packaged in plastic film, or in
a wooden crate.
4.1.1.1 Transporting environment condition
Temperature max. 70°C
Humility 60%
4.1.1.2 Shipping packaging dimensions
The dimensions of the pallets and wooden crates are listed in the following table:
Machine (L x W x H)
Wooden pallet 1850mm x 1500mm
Wooden crate 1850mm x 1500mm x 1850mm
Fig.38: Transport crate - dimensions in millimeters
1 Forklift attachment points
4.1.1.3 Weight of machine when ready for dispatch
The following table contains the weights of the machines prepared for dispatch, including pack-
aging.
Machine Dispatch on wooden pallet Dispatch on wooden crate
ASM ProcessLens 840 kg 940 kg
4 Setting up and commissioning
4.1 Transport and delivery configuration
58 Instruction manual ASM ProcessLens 03/2021
4.1.2 Checking a delivery
► Store the machine in the packaging until room temperature has been reached (minimum 4
hours). There is otherwise a risk of condensation occurring.
► Check the delivery for damage.
► Check the shock sensors on the transportation crate.
► Unpack the machine and the accessories and check the delivery for completeness (reference
delivery note).
► Document the results in the installation report /acceptance protocol.
4.1.3 Configuration when delivered
The machine is configured as follows when delivered:
●
The lane of the conveyor is set to a width of 210 mm. This width setting will be important when
fine-tuning the machine.
●
The keyboard is disconnected and dismantled.
●
The monitor is dismantled.
●
The tower lamp is dismantled.
●
All moving axes are fixed with shipping braces.

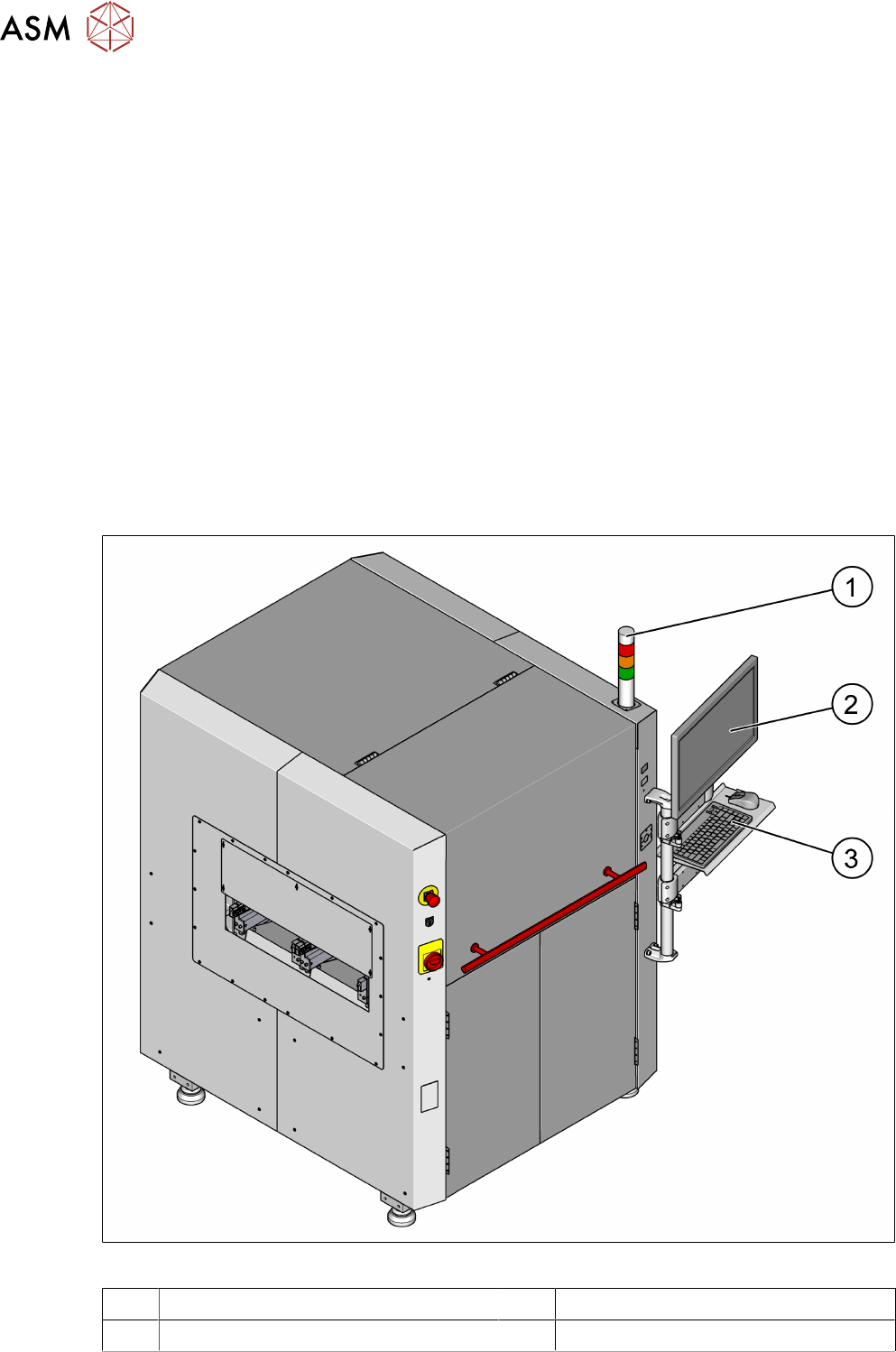

Fig.39: Configuration when delivered
1 Tower lamp (dismantled) 2 Monitor (dismantled)
3 Keyboard (dismantled)
