4 Setting up and commissioning 4.4 Commissioning the machine Instruction manual ASM ProcessLens 03/2021 71 Fig.46: Position of the shipping braces - Front side of the machine (part 1) 1 Shipping braces
4 Setting up and commissioning
4.4 Commissioning the machine
70 Instruction manual ASM ProcessLens 03/2021
4.3.7 Removing the corrosion protection from the guide rails
The machines were given a corrosion protection treatment before they were delivered. Wipe off
from all the axes and bearings with a lint-free cloth.
CAUTION
Corrosion protection
► You should therefore remove the corrosion protection from all the axes and bearings
when you traverse the machine axes for the first time during commissioning.
► Grease all the axes and bearings with the grease described in the maintenance
instructions.
If the corrosion protection agent is mixed with the bearing grease on the axes this can greatly re-
duce the service life of the bearings and guide rails.
CAUTION
Cleaning the guide rails
Do not allow any alcohol to enter the guide carriages when you clean the guide rails and
scale rods. Alcohol will damage the bearing grease in the guide carriages.
4.4 Commissioning the machine
4.4.1 Commissioning the machine at the installation site
► Check all modules for correct seating.
► Store the machine until room temperature has been reached (minimum 4 hours). There is oth-
erwise a risk of condensation occurring.
ð Open all covers and doors.
ð Open the front lower cover plate.
ð Open the upper and lower rear cover.
ð Remove the desiccation bag.
► Wipe off the linear guide rails with a lint-free cloth before removing the shipping braces.
CAUTION
Do not use any solvents
► Please see section Removing the corrosion protection from the guide rails.
4.4.2 Removing the shipping braces
► Remove all the shipping braces (see next three figures).
► If the ASM ProcessLens machine needs to be transported, always fit the shipping braces.
CAUTION
Always fit the shipping braces
Do not get rid of the shipping braces.
► Store the shipping braces for future use if ASM ProcessLens needs to be moved to
another location.
► If the ASM ProcessLens machine needs to be transported, always fit the shipping
braces.
4 Setting up and commissioning
4.4 Commissioning the machine
Instruction manual ASM ProcessLens 03/2021 71

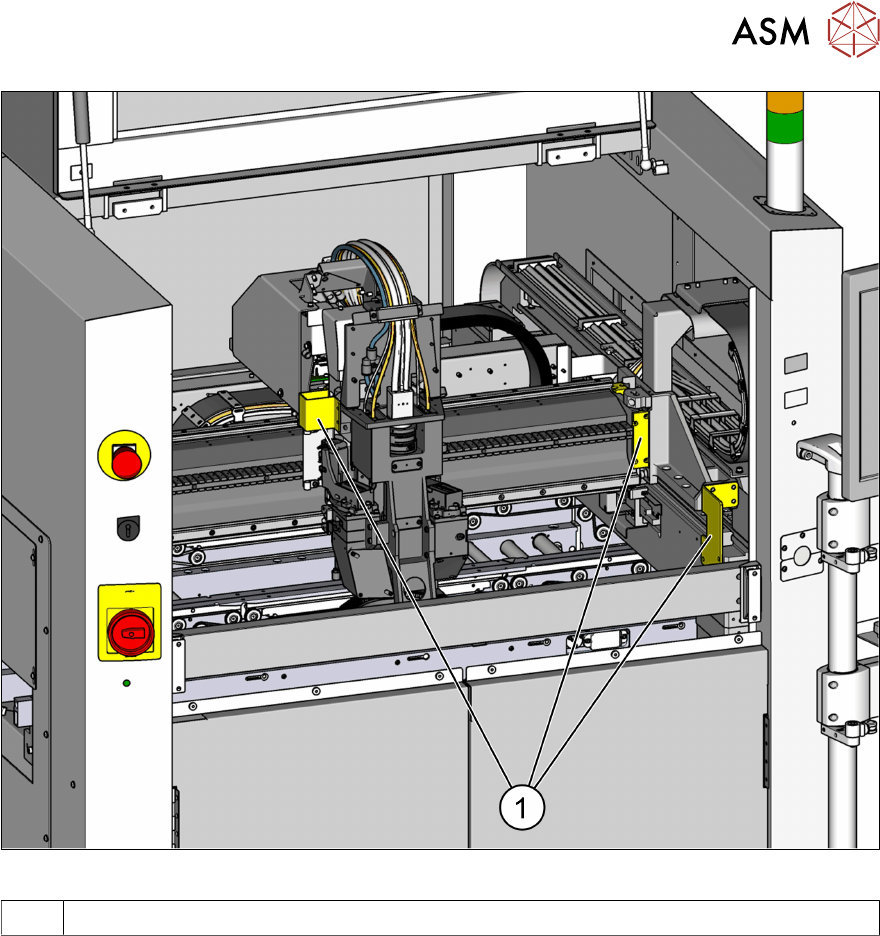

Fig.46: Position of the shipping braces - Front side of the machine (part 1)
1 Shipping braces
4 Setting up and commissioning
4.4 Commissioning the machine
72 Instruction manual ASM ProcessLens 03/2021
Fig.47: Position of the shipping braces - Front side of the machine (part 2)
1 Shipping braces
