5 Working with the machine
5.1 Controls and displays
76 Instruction manual ASM ProcessLens 03/2021
5.1 Controls and displays
5.1.1 Overview

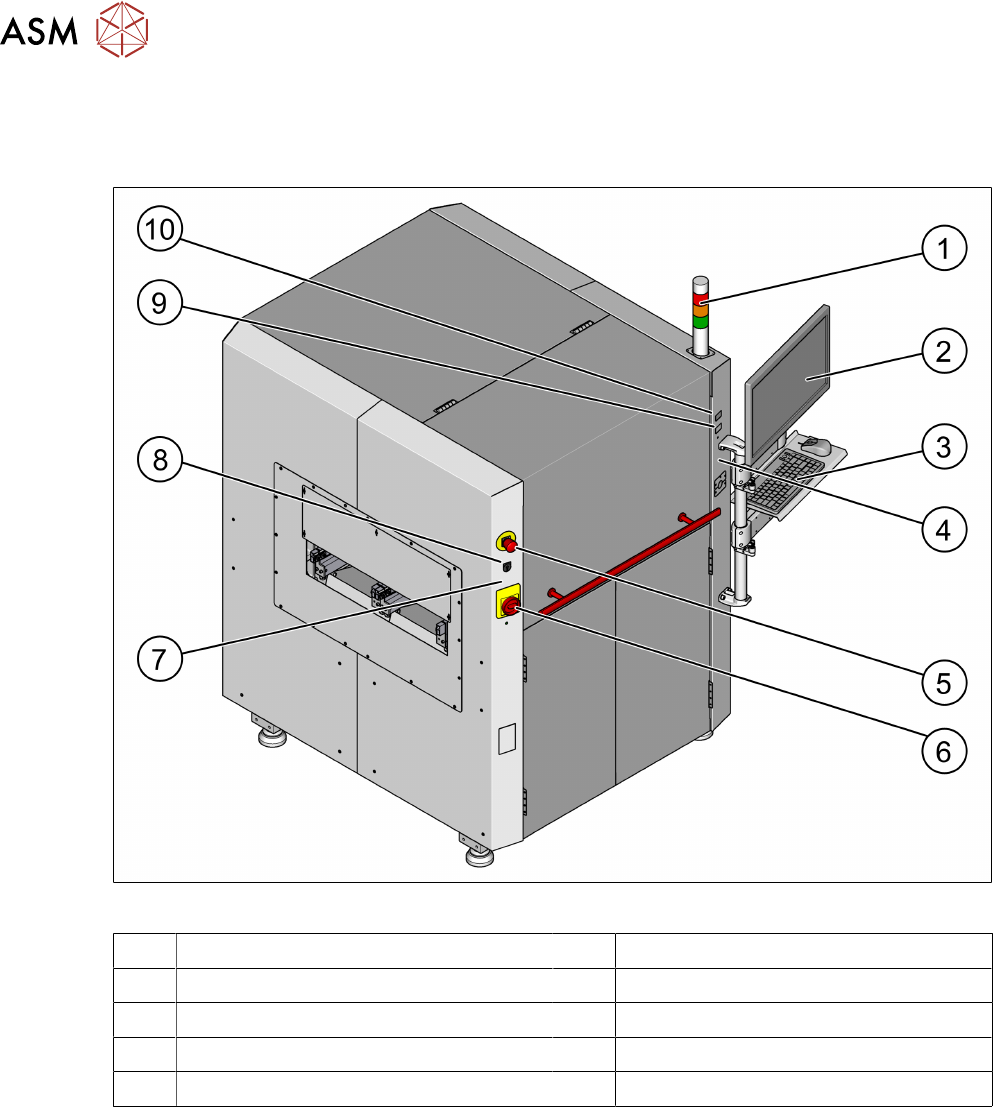

Fig.50: Controls and displays
1 Tower lamp with buzzer 2 LCD monitor
3 Keyboard and mouse 4 External grounding point
5 EMERGENCY STOP button 6 Main switch
7 Power ON lamp 8 Key switch
9 Start button (green) 10 Stop button (black)
5.1.2 Description
All the controls can be reached by a 1.40 m tall person.
Programmable tower lamp with buzzer
(see fig. "Controls and displays" [}76])
The programmable tower lamp is used to signal operating statuses and malfunctions of the
machine. The buzzer indicates when an alert has occurred. The sequence of colors of the tower
lamps is red - amber - green.
The programmable tower lamp functionality allows the operator to assign a combination of the fol-
lowing states of machine events:
5 Working with the machine
5.1 Controls and displays
Instruction manual ASM ProcessLens 03/2021 77
Condition Possible states Frequency of flashes
Green On
Off
Pulse
Pulse Frequency (ms)
Amber On
Off
Pulse
Pulse Frequency (ms)
Red On
Off
Pulse
Pulse Frequency (ms)
Buzzer On
Off
Pulse Frequency (ms)
LCD monitor
(see fig. "Controls and displays" [}76])
There is a flat LCD monitor at the front side of the ASM ProcessLens machine. A LCD monitor with
a touch-sensitive surface (touchscreen) as an option is available.
Keyboard
(see fig. "Controls and displays" [}76])
The keyboard and mouse are located beneath the monitor.
CAUTION
Risk of collision of personnel with monitor and keyboard holder
Risk of collision of the front hood with the arm where the monitor, keyboard and mouse are
mounted.
Key switch ON/OFF
(see fig. "Controls and displays" [}76])
Turn on the control power manually and switch the conveyor into pass through mode when the PC
is down.
► Close the GUI program.
► Switch off the machine by the main switch.
► Wait for 30 sec and then switch on the machine at the main switch.
► Turn the key switch to the left and release to turn on the control power.
► Turn the key switch to the right.
The conveyor set to pass through running mode.
Main power switch in ON position
(see fig. "Controls and displays" [}76])
After switching on the main power switch, 24 V DC and 240 V AC are present.
Main power switch in OFF position
(see fig. "Controls and displays" [}76])
The main power switch disconnects the single phase from the power supply.
