1 Introduction

1.1 Machine overview

Instruction manual ASM ProcessLens 03/2021 7

1 Introduction

This instruction manual contains basic information that must be observed when setting up, operat-

ing and maintaining the ASM ProcessLens® solder paste inspection machine (Single-lane and

Dual-lane). This instruction manual contains notes that must be observed to guarantee your per-

sonal safety and to avoid damage to equipment.

NOTICE

The ASM ProcessLens® solder paste inspection machines are of largely identical design.

Any differences will be mentioned specifically.

The diagrams in this instruction manual show the ASM ProcessLens Dual-lane. These dia-

grams also apply in principle to the ASM ProcessLens Single-lane. Additional diagrams will

be shown for any deviations.

This document is the original instruction manual.

1.1 Machine overview

Fig.1: ASM ProcessLens solder paste inspection machine

1 Introduction

1.1 Machine overview

8 Instruction manual ASM ProcessLens 03/2021

1.1.1 Machine description

ASM ProcessLens: 5D SPM

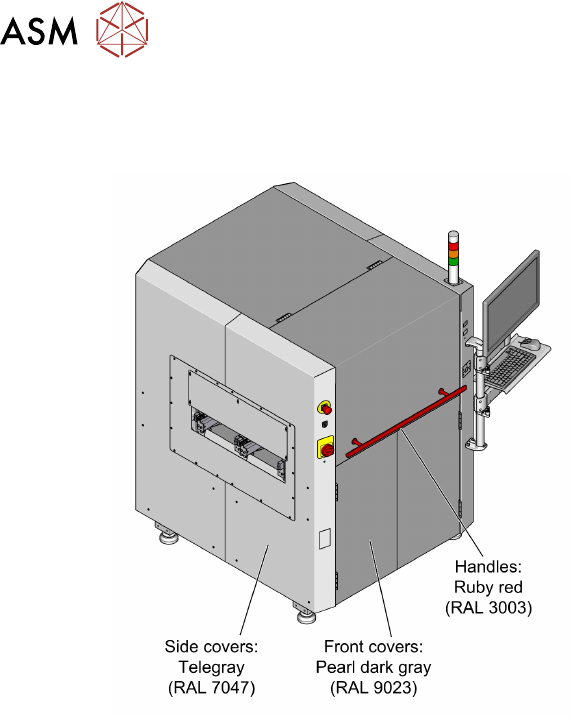

Fig.2: ASM ProcessLens - colors

ASM ProcessLens is a highly accurate and

extremely flexible 5D inline Solder Paste

Measurement (SPM) system. Developed

primarily for ASM ProcessExpert, it com-

bines optical 2D and 3D measurement tech-

nologies for outstanding measurement reli-

ability.

As a modern high-end 3D SPM system,

ASM ProcessLens measures the properties

of solder deposits using the Moiré fringe pro-

jection method, but with significant improve-

ments:

It projects the light with a special chip hold-

ing 8 million electronically controlled micro-

mirrors. The Digital Light Projector (DLP)

system adapted by ASM operates error-free

and with much more precision, flexibility and

speed than traditional 3D SPI systems with

piezo elements.

In short, ASM ProcessLens sets new bench-

marks in accuracy, flexibility, measurement

reliability, and speed.

The ASM ProcessLens solder paste inspec-

tion machines are available in two different

variants:

●

ASM ProcessLens Single-lane

●

ASM ProcessLens Dual-lane

The ASM ProcessLens is an inline solder paste inspection machine which visually measures 100%

of paste deposits on any given product in 3D and 2D and compares them to their expected volume,

X and Y position, area, mean height and shape.

It also checks for bridging between adjacent pads and coplanarity failures for a group of pads be-

longing to the same component.

This visual control is based on the stencil's Gerber data which contains all the apertures, their

shape, size, orientation and position, the fiducials, as well as the user-defined stencil thickness.

ASM ProcessLens measures and dynamically compensates the warpage within each PCB during

the inspection to keep the images in optimum focus by adjusting the height of the Z-axis accord-

ingly. The evolution and history of the printing process can be visualized through the SPC (Statist-

ical Process Control) package delivered with the machine.

ASM ProcessLens Single-lane machines have a one-stage single conveyor.

ASM ProcessLens Dual-lane machines have a three-stage dual conveyor. Synchronous inspection

can be performed with two boards loaded at the same time.

ASM ProcessLens together with ASM ProcessEngine pre-placement is a product called ASM

ProcessExpert which is a process tool to analyze stencil layouts and automatically stabilize, char-

acterize, proactively control and improve the printing process.

1 Introduction

1.1 Machine overview

Instruction manual ASM ProcessLens 03/2021 9

1.1.2 Serial number of the machine

The serial number of the machine can be found on the backside of the machine.

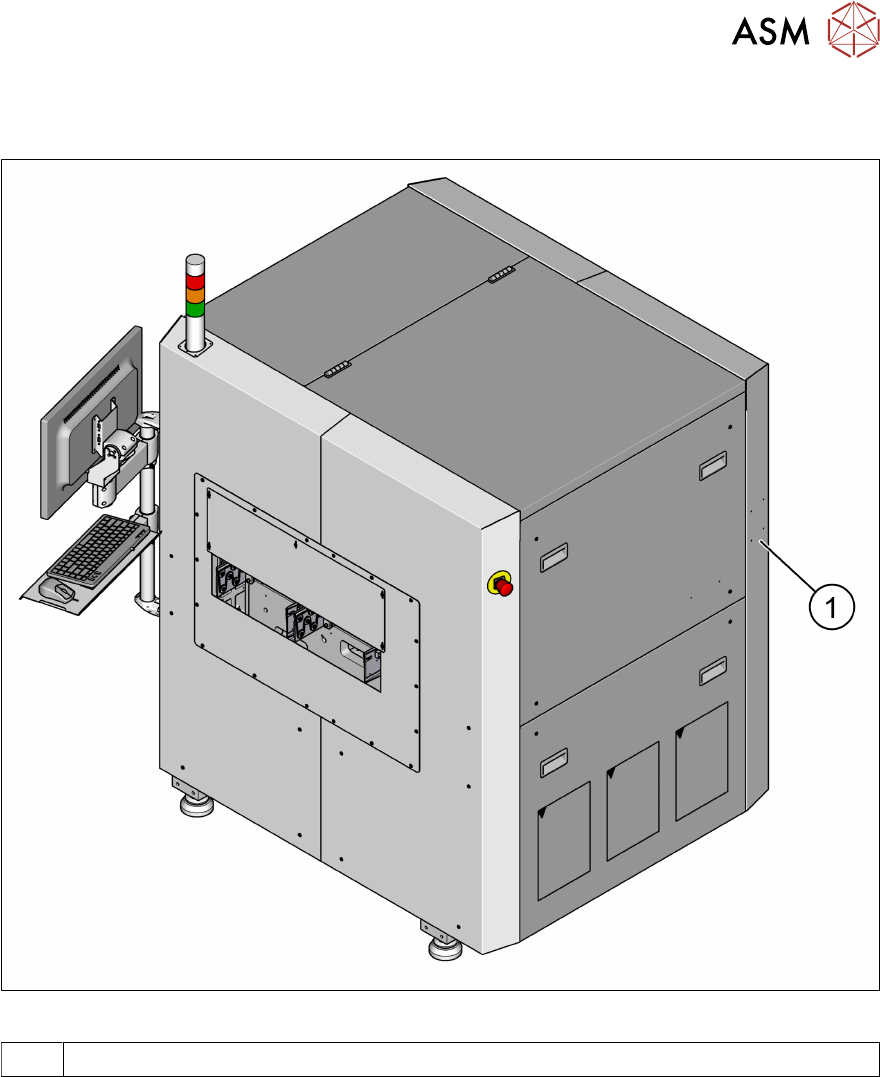

Fig.3: Position of type plate with serial number

1 Type plate

1.1.3 EU Declaration of Conformity

The product described in this manual is in accordance with the regulations and standards of the re-

spective EC Declaration of Conformity.

See also 8.1 "EU Declaration of conformity" [}87].

1.1.4 Use as prescribed

The product may only be used for the areas of application specified in the catalogues and technical

descriptions i.e. for solder paste and glue inspection of PCBs and may only be used together with

the third party devices and components recommended or approved by ASM Assembly Systems

Singapore Pte ltd. Use for a different or extended purpose is not prescribed.

In the case of incorrect usage, ASM Assembly Systems Singapore Pte ltd. will not assume liability

for any damage which occurs and will not guarantee the correct and proper function of machine

components.

Use as prescribed also includes compliance with all the instructions in the Instruction Manual.
