Service Work C&P12 Placement Head 4.5.8 Replaci ng th e Valve Positioning Drive for t he Placement Circuit [00368075- 152 Service Manual SIPLACE D4/D4i Overview of adjustment valve plunger Removal C&P6/12 adjustm…
Service Work
4.5.8 Replacing the Valve Positioning Drive for the Placement Circuit [00368075-xx] C&P12 Placement Head
Service Manual SIPLACE D4/D4i 151
Removal/installation
4.5.8
4.5.8 Replacing the Valve Positioning Drive for the Placement Circuit [00368075-xx]
Replacing the Valve Positioning Drive for the Placement Circuit [00368075-xx]
Tools and equipment
▪ Standard tool
▪ Distance gauge 0.2 mm [00325445-01] – used up to version 2:
▪ Adjustment valve plunger for placement circuit [03068816-xx]
These are needed for the DLM2, DLM3 and DLM4.
Belt tensioning device for turning station DLM
Tools and equipment
▪ Standard tool
▪ Belt tensioning device for turning station DLM
[03063649-01]
▪ Lubricant Isoflex Topas NCA52
▪ Spare part: Synchroflex toothed belt 2.5 T2/90
[00320041-01]
► Remove the turning station as described in the previ-
ous chapter.
NOTICE!
To loosen or tighten the fastening screw on the rocker,
hold the DP station between your thumb and index finger
so that the swivel-in rocker (1) can be moved to the left
and right.
► Remove the defective toothed belt.
► Loosen the two fastening screws (3) with a size 0
screwdriver. Do not fully remove the screws (leave
them in the unit).
► Grease the new toothed belt slightly with Isoflex
Topas NCA52.
► Fit the new toothed belt onto the toothed wheels.
► Fit the adjustment aid (2) between the motor drive
toothed wheel (4) and the sleeve drive wheel (5). The
tension of the steel spring in the tool sets the belt to
the correct tension.
► Now tighten the two screws fastening (3) the rocker
with a size 0 screwdriver.
► Check the axis dynamics according to the setting in-
structions for the machine and relevant placement
head.
► Refit the turning station as described in the previous
chapter.
Service Work
C&P12 Placement Head 4.5.8 Replacing the Valve Positioning Drive for the Placement Circuit [00368075-
152 Service Manual SIPLACE D4/D4i

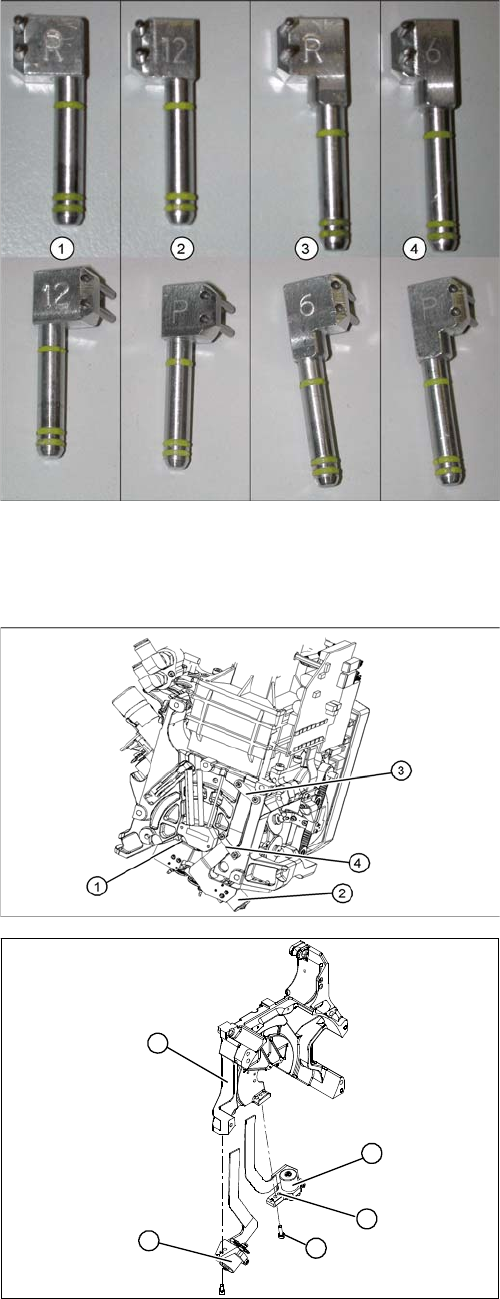

Overview of adjustment valve plunger
Removal
C&P6/12 adjustment valve plunger
Available from positioning unit version 3
Use the 0.2 mm setting gauge with DLM1.
1. Adjustment valve plunger for reject circuit C&P12
[03064290-xx] (DLM2, DLM3)
2. Adjustment valve plunger for placement circuit
C&P12 [03068816-xx] (DLM2, DLM3, DLM4)
3. Adjustment valve plunger for reject circuit C&P6
[03068854-xx] (DLM2, DLM3)
The C&P6 is not used in the DX series.
4. Adjustment valve plunger for placement circuit C&P6
[03065628-xx] (DLM2, DLM3)
The C&P6 is not used in the DX series.
The labeling on the plungers has the following meaning:
▪ 6 = C&P6
▪ 12 = C&P12
▪ P = placement circuit
▪ R = reject circuit
1. Valve positioning drive for placement circuit
[00368075-xx]
(DLM2, DLM3, DLM4)
2. Valve positioning drive for reject circuit [00367768-
xx]
(DLM2, DLM3, not DLM4)
3. Flat ribbon cable clamp
4. Flat ribbon cable clamp
► Dismantle the C&P head.
► Loosen the two M2x6 Phillips screws on the flat rib-
bon cable clamp (3) and (4).
1. Valve positioning drive for placement circuit
[00368075-xx]
(DLM2, DLM3, DLM4)
2. Valve positioning drive for reject circuit [00367768-
xx]
(DLM2, DLM3, not DLM4)
► Loosen the fastening screw (4).
► Carefully remove the valve positioning drive (1).
5
1
4
3
2
Service Work
4.5.8 Replacing the Valve Positioning Drive for the Placement Circuit [00368075-xx] C&P12 Placement Head
Service Manual SIPLACE D4/D4i 153
Installation
See also
6.3.1 Calibrating the C&P Head and Cameras [ ➙ 206]
► Insert the valve positioning drive. Make sure that it is
seated correctly on the parallel pins (5).
► Loosely screw in the hexagon socket-head screw (4)
► Use the cable clamps to fix the ribbon cable in posi-
tion. Make sure that the ribbon cables are not
pinched.
CAUTION! Check how the cables are run!
Check that the ribbon cables are laid correctly (1).
The flat ribbon cable for the two valve positioning units
must be run outside the holes (2). otherwise it will be
damaged when the C&P head is fitted onto the head
plate.
5
1
4
3
2
1
2
