Settings Conveyor 6.5.2 Setting the fixed conveyor side (single and dual conveyor) 226 Service Manual SIPLACE D4/D4i 6.5.1.1 6 . 5 . 1 . 1 M e a s u r in g P o in t s a n d B e lt T e n s io n s f o r D 4 C o n v e y o r…
Settings
6.5.1 Adjusting the Tension of the Conveyor Toothed Belt Conveyor
Service Manual SIPLACE D4/D4i 225

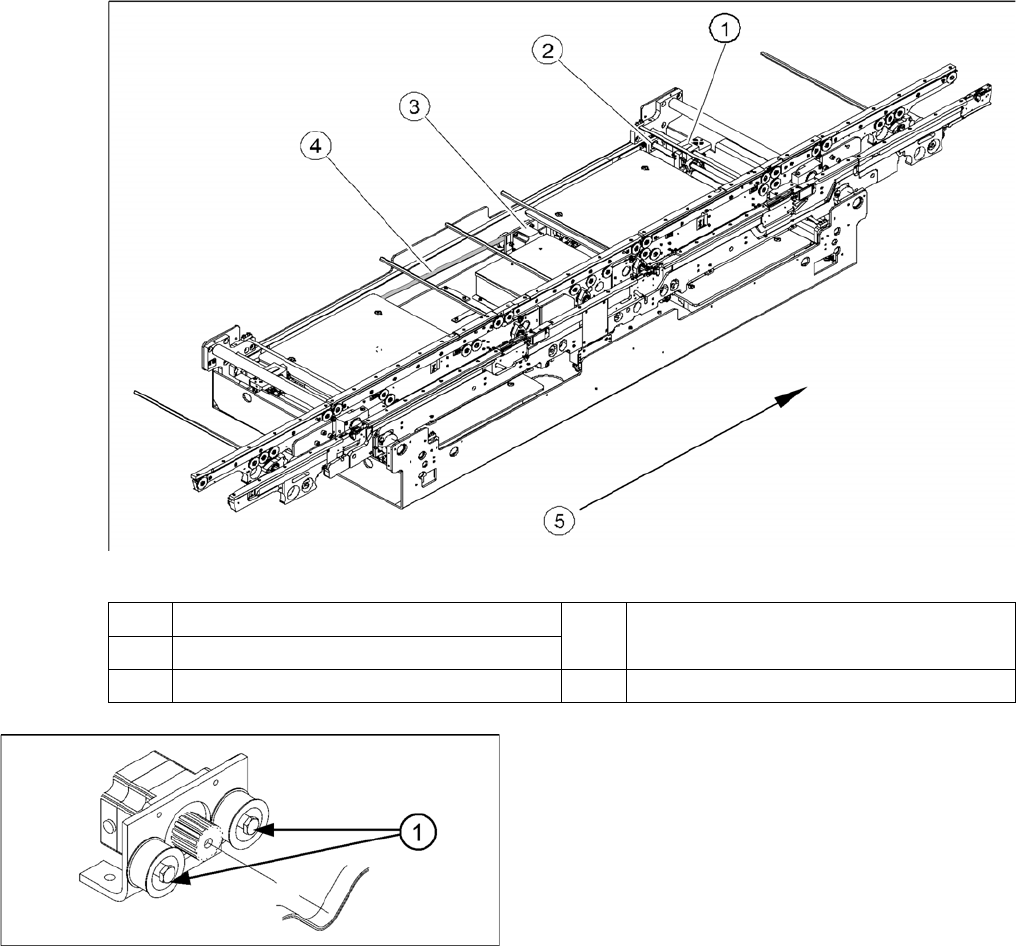

Measuring and setting the belt tension for the width adjustment
1 Adjustment unit 4 Toothed drive belt for adjusting the width /
measuring the belt tension
2 Spindle with toothed wheel
3 Width adjustment stepping motor 5 Transport direction
Width adjustment motor
The belt is tensioned by means of cams on the idler pul-
leys. The idler pulleys are located on the left and right of
the motor.
1. Loosen the cam shaft on the idler pulley and set the
belt tension.
Settings
Conveyor 6.5.2 Setting the fixed conveyor side (single and dual conveyor)
226 Service Manual SIPLACE D4/D4i
6.5.1.1
6.5.1.1 Measuring Points and Belt Tensions for D4 Conveyor
Measuring Points and Belt Tensions for D4 Conveyor
6.5.2
6.5.2 Setting the fixed conveyor side (single and dual conveyor)
Setting the fixed conveyor side (single and dual conveyor)
6.5.2.1
6.5.2.1 General Notes
General Notes
▪ The fixed conveyor edge can be set in SITEST if required.
▪ If the position taught for the fixed conveyor edge is saved, these values will be used for the function
Move all conveyor edges to standard position.
The default values will be overwritten and will need to be retaught.
Legend
Measuring points (arrows) and measuring values for con-
veyor belt tensions:
Single conveyor or dual conveyor lane 1
1. Input conveyor: 90 +/- 9 Hz
2. Processing area 1: 72 +/- 7 Hz
3. Intermediate conveyor: 144 +/- 14 Hz
4. Processing area 2: 90 +/- 9 Hz
5. Output conveyor: 90 +/- 9 Hz
Dual conveyor lane 2
1. Input conveyor: 90 +/- 9 Hz
2. Processing area 1: 72 +/- 7 Hz
3. Intermediate conveyor: 115 +/- 12 Hz
4. Processing area 2: 90 +/- 9 Hz
5. Output conveyor: 90 +/- 9 Hz
Width adjustment
▪ Width adjustment Limit switch, 24 +/- 2 Hz
NOTICE
Widened or extra wide conveyor mode
If you want to change the conveyor mode from "widened" to "extra wide" (or vice versa), you
need to first move the conveyor into standard mode.
SITEST "Set fixed conveyor edge"
NOTICE!
This menu is protected with the SIPLACE service pass-
word.
Settings
6.5.2 Setting the fixed conveyor side (single and dual conveyor) Conveyor
Service Manual SIPLACE D4/D4i 227
▪ If these dimensions are incorrectly set on the single or dual conveyor, the PCB reference corner may
be moved, leading to fiducial errors during placement.
Two requirements for changing the fixed conveyor sides:
▪ Extra wide conveyor – moves the fixed conveyor side 34 mm outwards.
▪ Widened conveyor – moves the sides of the 2nd conveyor to the limit switch.
Single conveyor control mode (D-series up to 380 mm/HF, X lines up to 450 mm)
6.5.2.2
6.5.2.2 Widening the Conveyor (Flexible Dual Conveyor for Single Conveyor Mode)
Widening the Conveyor (Flexible Dual Conveyor for Single Conveyor Mode)
► In the SITEST conveyor menu Options and Configurations select the menu Change Widening of
Conveyor to widen the conveyor.
► The conveyor sides of the 2nd conveyor lane (right side fixed (lane 1 left side fixed)) are moved to
the limits.
► The SITEST SW will ask you to connect the lifting tables.
Widening the board conveyor (from its standard width) allows you to use boards up to 380 mm wide.
Widening the board conveyor from the mode "Widened" to the mode "excess width" allows you to place
boards up to a width of 430 mm.
Setting the "fixed conveyor side" in SIPLACE D series
NOTICE
SITEST
In the SR/MC station SW, the fixed conveyor edge of all lanes can be adjusted in the conveyor
firmware (flexible). However, this may only be set with the SITEST software.
NOTICE
D series
In the D series machines, you need to remove the clamping rings on the fixed conveyor edge
in advance.
NOTICE
The fixed conveyor side should be adjusted only with the SITEST software and the width ad-
justment devices. This ensures that the conveyor runs straight.
