Settings 6.5.2 Setting the fixed conveyor side (single and dual conveyor ) Conveyor Service Manual SIPLACE D4/D4i 227 ▪ If these dimensions are incorrectly set on the single or dual convey or, the PCB re ference cor ner …

100%1 / 248
Settings
Conveyor 6.5.2 Setting the fixed conveyor side (single and dual conveyor)
226 Service Manual SIPLACE D4/D4i
6.5.1.1
6.5.1.1 Measuring Points and Belt Tensions for D4 Conveyor
Measuring Points and Belt Tensions for D4 Conveyor
6.5.2
6.5.2 Setting the fixed conveyor side (single and dual conveyor)
Setting the fixed conveyor side (single and dual conveyor)
6.5.2.1
6.5.2.1 General Notes
General Notes
▪ The fixed conveyor edge can be set in SITEST if required.
▪ If the position taught for the fixed conveyor edge is saved, these values will be used for the function
Move all conveyor edges to standard position.
The default values will be overwritten and will need to be retaught.
Legend
Measuring points (arrows) and measuring values for con-
veyor belt tensions:
Single conveyor or dual conveyor lane 1
1. Input conveyor: 90 +/- 9 Hz
2. Processing area 1: 72 +/- 7 Hz
3. Intermediate conveyor: 144 +/- 14 Hz
4. Processing area 2: 90 +/- 9 Hz
5. Output conveyor: 90 +/- 9 Hz
Dual conveyor lane 2
1. Input conveyor: 90 +/- 9 Hz
2. Processing area 1: 72 +/- 7 Hz
3. Intermediate conveyor: 115 +/- 12 Hz
4. Processing area 2: 90 +/- 9 Hz
5. Output conveyor: 90 +/- 9 Hz
Width adjustment
▪ Width adjustment Limit switch, 24 +/- 2 Hz
NOTICE
Widened or extra wide conveyor mode
If you want to change the conveyor mode from "widened" to "extra wide" (or vice versa), you
need to first move the conveyor into standard mode.
SITEST "Set fixed conveyor edge"
NOTICE!
This menu is protected with the SIPLACE service pass-
word.
Settings
6.5.2 Setting the fixed conveyor side (single and dual conveyor) Conveyor
Service Manual SIPLACE D4/D4i 227
▪ If these dimensions are incorrectly set on the single or dual conveyor, the PCB reference corner may
be moved, leading to fiducial errors during placement.
Two requirements for changing the fixed conveyor sides:
▪ Extra wide conveyor – moves the fixed conveyor side 34 mm outwards.
▪ Widened conveyor – moves the sides of the 2nd conveyor to the limit switch.
Single conveyor control mode (D-series up to 380 mm/HF, X lines up to 450 mm)
6.5.2.2
6.5.2.2 Widening the Conveyor (Flexible Dual Conveyor for Single Conveyor Mode)
Widening the Conveyor (Flexible Dual Conveyor for Single Conveyor Mode)
► In the SITEST conveyor menu Options and Configurations select the menu Change Widening of
Conveyor to widen the conveyor.
► The conveyor sides of the 2nd conveyor lane (right side fixed (lane 1 left side fixed)) are moved to
the limits.
► The SITEST SW will ask you to connect the lifting tables.
Widening the board conveyor (from its standard width) allows you to use boards up to 380 mm wide.
Widening the board conveyor from the mode "Widened" to the mode "excess width" allows you to place
boards up to a width of 430 mm.

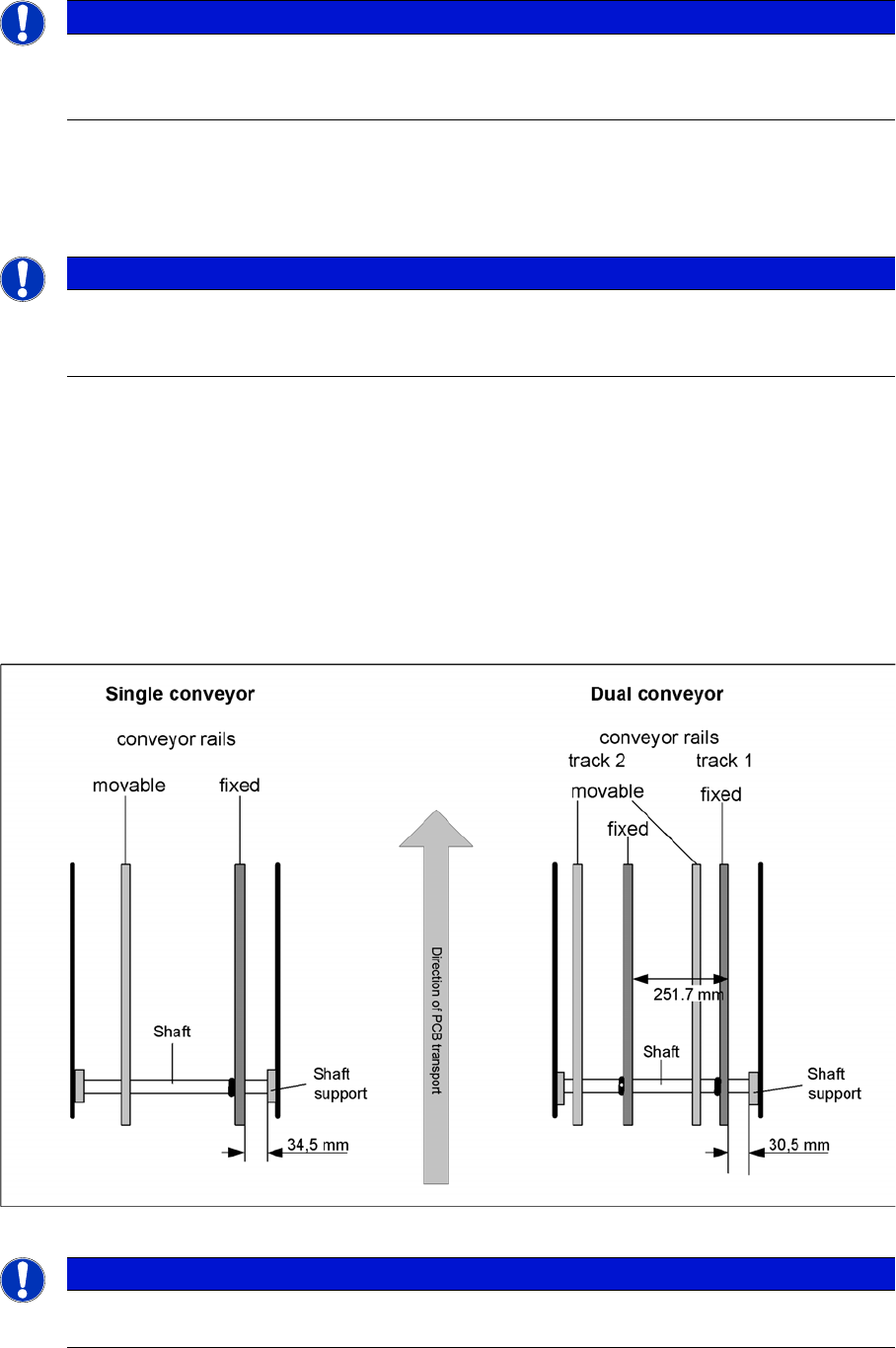

Setting the "fixed conveyor side" in SIPLACE D series
NOTICE
SITEST
In the SR/MC station SW, the fixed conveyor edge of all lanes can be adjusted in the conveyor
firmware (flexible). However, this may only be set with the SITEST software.
NOTICE
D series
In the D series machines, you need to remove the clamping rings on the fixed conveyor edge
in advance.
NOTICE
The fixed conveyor side should be adjusted only with the SITEST software and the width ad-
justment devices. This ensures that the conveyor runs straight.
Settings
Conveyor 6.5.3 Moving the Fixed Conveyor Edge for ’Extra Wide Conveyor’
228 Service Manual SIPLACE D4/D4i
6.5.2.3
6.5.2.3 Connecting the Dual Conveyor Lifting Tables
Connecting the Dual Conveyor Lifting Tables
► Remove the lifting table plate on conveyor lane 2 in PA1 and on lane 1 in PA2.
► Loosen the lockscrew(s) (4) and use a screwdriver to push the hexagonal circlip over the shaft on
lifting table 1.
► Perform lifting table connection for all placement areas (arrangement rotated by 180°.)
► Configure the new conveyor mode in SIPLACE Pro
6.5.2.4
6.5.2.4 Converting the Single Conveyor Mode Back to Flexible Dual Conveyor Mode
Converting the Single Conveyor Mode Back to Flexible Dual Conveyor Mode
► In the SITEST conveyor menu Options and Configurations, select the menu Change Widening of
Conveyor to set the default conveyor mode.
► The moveable conveyor side of conveyor 1 (right side fixed (track 1 left side fix)) is moved to a small
conveyor width (default).
► The SITEST SW will ask you to disconnect the lifting tables. Do so.
► The SITEST SW will now use the conveyor control SW to move the fixed side of conveyor 2 (right
side is fixed (lane 1 left side fixed)) back to its standard position. Check the distances between the
two fixed conveyor lanes. (see "6.5.2.2 Widening the Conveyor (Flexible Dual Conveyor for Single
Conveyor Mode)" [ ➙ 227])
► Now adjust the conveyor width of both tracks to the required values.
6.5.3
6.5.3 Moving the Fixed Conveyor Edge for ’Extra Wide Conveyor’
Moving the Fixed Conveyor Edge for ’Extra Wide Conveyor’
The standard positions of the fixed conveyor sides are preset.
► In the SITEST conveyor menu Options and Configurations and select the menu Conveyor Excess
Width, to set the conveyor mode "Extra wide".
NOTICE
This option is only a mechanical necessity when you use the dual conveyor as a single convey-
or. The two lifting tables move parallel when they are connected.
Connecting lifting tables (e.g. PA1 conveyor lane 2)
▪ The drive shaft (1) is connected to the piston rod of
the pneumatic cylinder. This shaft is connected to the
shaft of the lifting table for conveyor lane 1. The lifting
table drive shaft has an additional rod with a hexagon
circlip. This rod is pushed over the shaft of lifting table
1.
▪ Direction of transport (2).
▪ Direction (3) in which the hollow shaft from lifting ta-
ble 2 (1 in PA 2) is to be moved to lifting table 1 (2 in
PA 2).
▪ Lock screws (4).
NOTICE
When converting the dual conveyor to a single conveyor (flexible dual conveyor), connect the
lifting tables when requested to do so by SITEST (we recommend doing this without the com-
pressed air supply to the lifting table).
This function is supported by SIPLACE Pro .
NOTICE
This operating mode is possible for D machines with single or dual conveyors.
