Overview 3.2.3 Distributors in Sectors 1-4 Electrical System Service Manual SIPLACE D4/D4i 27 3.2.3 3 . 2 . 3 D is t r ib u t o r s in S e c t o r s 1 - 4 Distributors in Sectors 1-4 3.2.3.1 3 . 2 . 3 . 1 D is t r ib u t…

Overview

Electrical System 3.2.2 Power Supply Unit

26 Service Manual SIPLACE D4/D4i

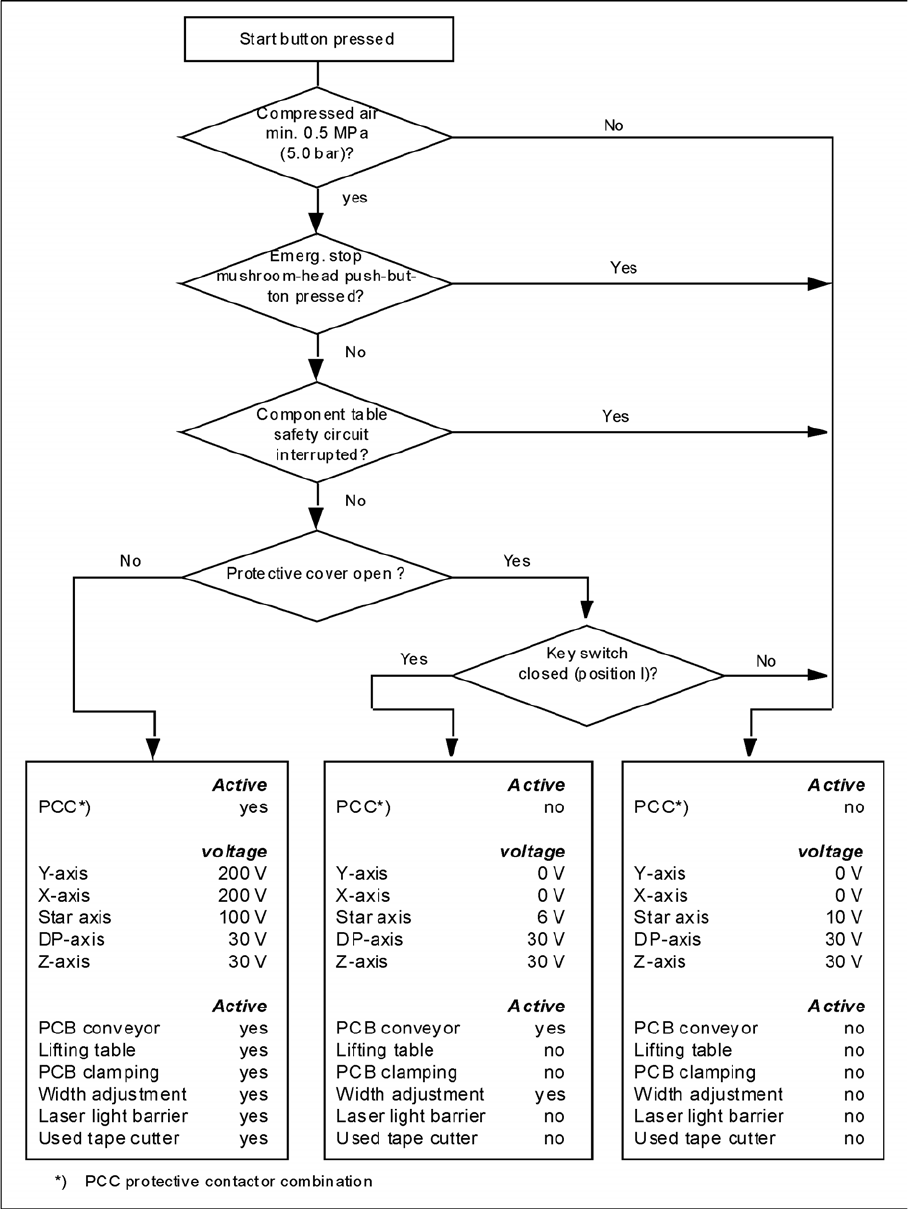

EMERGENCY STOP loops

Overview

3.2.3 Distributors in Sectors 1-4 Electrical System

Service Manual SIPLACE D4/D4i 27

3.2.3

3.2.3 Distributors in Sectors 1-4

Distributors in Sectors 1-4

3.2.3.1

3.2.3.1 Distributors in Sector 1

Distributors in Sector 1

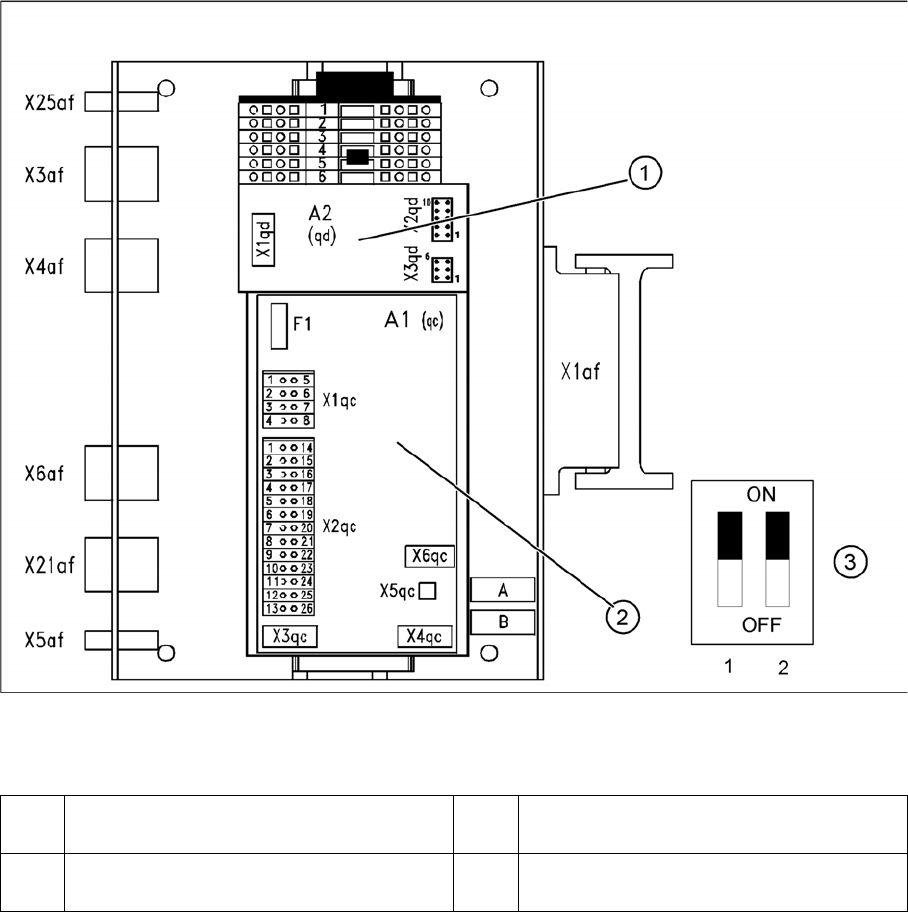

Overview - distributors in sector 1

Legend

1 Vision DC/DC converter [03002280-xx] 3 DIP switch for CAN Bus terminator for CO

table in Sector 1

2 CAN Bus Terminator Board for Changeo-

ver Table [03046863-xx]

Overview

Electrical System 3.2.3 Distributors in Sectors 1-4

28 Service Manual SIPLACE D4/D4i

3.2.3.2

3.2.3.2 Distributors in Sector 2

Distributors in Sector 2

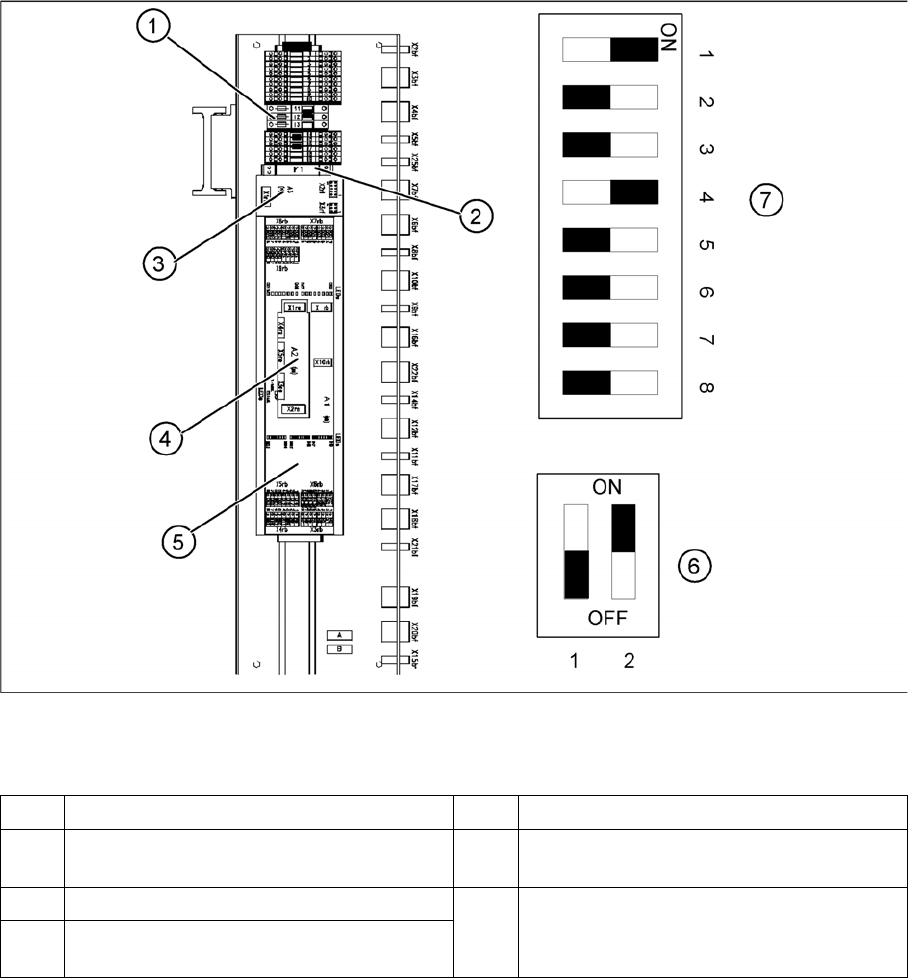

Overview - distributors in sector 2

Legend

1 Fine fuse 5x20 MT 3.15 A [00302999-xx] 5 CAN I/O module [00355051-xx]

2 Relay RS30 24 V [00309645-01] 6 DIP switch for CAN Bus terminator for CO

table in Sector 2

3 CAN interface [03032364-xx] 7 DIP switch for configuration of CAN I/O

module in sector 2

4 CAN Bus Terminator Board for Changeo-

ver Table [03046863-xx]
