1-41
System Messages of the MMI and Solutions
1.3. Measures against a vision recognition related error
1.3.1. Classification of Error Codes
Error code Details Note
a401 ~ a423 General errors (timeout, out of margin, unregistered part,
etc.)
a500 ~ a504 HEMT related error
a5a0 ~ a5d4 Split recognition related error
a610 ~ a682 LLSL related error
a715~ a765 CONN related error
a805 ~ a869 ODD related error
a910 ~ a931 BGA related error
aa00 ~ aa2b MELF related error
ab00 ~ ab2b TR related error
ac00 ~ ac14 VC related error
ad01 ~ ad30 Auto teaching related error
ae03 ~ ae16 Fiducial related error
af02 ~ af07 Pocket teaching related error
af51 ~ af56 Flip chip related error
af81 ~ af85 Lens distortion calibration related error
af90 ~ af95 Board recognition mark error
1-42
Next Generation, Multi-Functional Placer DECAN S1 Troubleshooting Guide
1.3.2. General errors[a401 ~ a423]

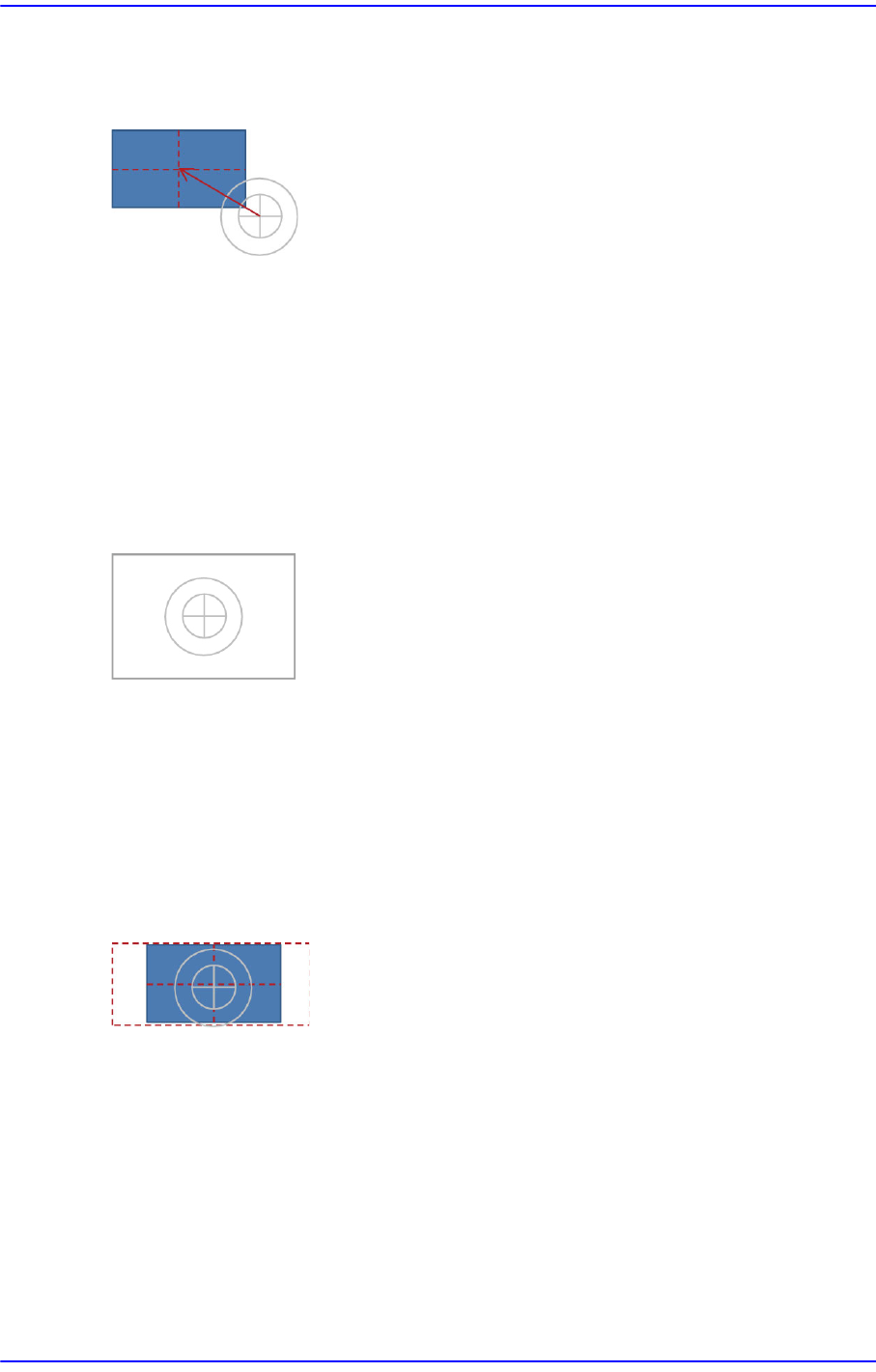

$a421 A part moved out of the area margin.
[Cause]
The X or Y offset of the center of the inspected part exceeded the set area margin.
[Measures]
Check the part pickup position of the feeder.
1.3.3. MELF related error[aa00 ~ aa2b]
$aa04 Cannot find a part.
[Cause]
A part is not picked up properly.
The part is not seen since the illumination is too dark.
[Measures]
Check whether the part is picked up properly.
$aa07 The X size of the part is recognized differently.
[Cause]
The X size measurement of the picked part is larger or smaller than the registered size,
exceeding the allowable range.
[Measures]
Check whether the registered part information corresponds to the picked part and
check the allowable error.
1-43
System Messages of the MMI and Solutions

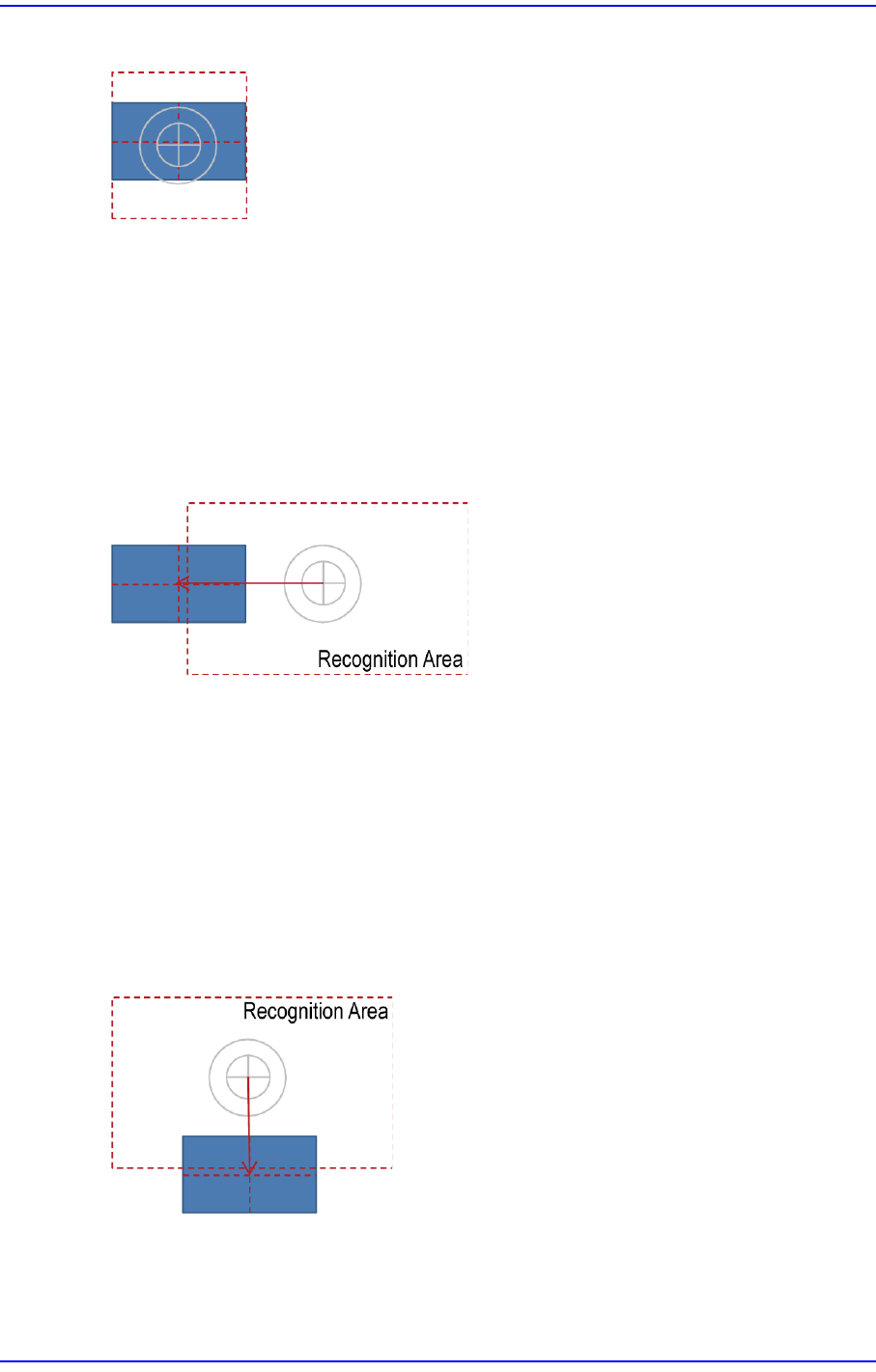

$aa08 The Y size of the part is recognized differently.
[Cause]
The Y size measurement of the picked part is larger or smaller than the registered size,
exceeding the allowable range.
[Measures]
Check whether the registered part information corresponds to the picked part and
check the allowable error.
$aa09 The X center of the part deviates too much.
[Cause]
The offset X of the center of the inspected part deviates from the inspection area in the
'+' or '-' direction.
[Measures]
Check the part pickup position of the feeder.
If it is picked up properly, check 'Ignore Center Offset' and perform setup to avoid an
occurrence of the corresponding error.
$aa0a The Y center of the part deviates too much.
[Cause]
The offset Y of the center of the inspected part deviates from the inspection area in the
'+' or '-' direction.
