1-53
System Messages of the MMI and Solutions
The number of leads detected is less than two.
[Measures]
Check whether the part is a correct one. If necessary, adjust the illumination value.
$ab22 Total number of leads is too large.
[Cause]
The sum of upper and lower leads detected exceeds 30.
[Measures]
Check whether the part is a correct one. If necessary, adjust the illumination value.

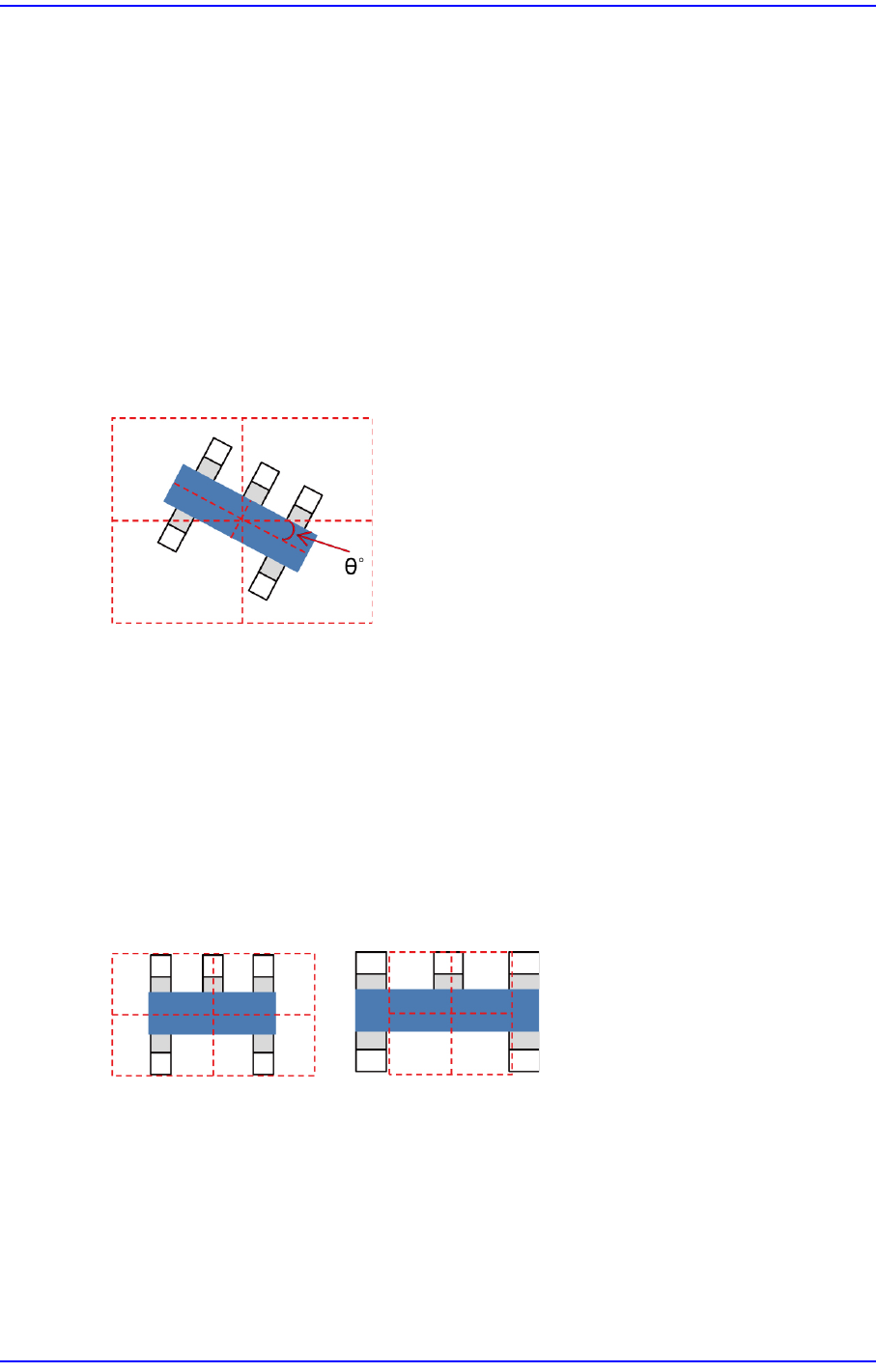

$ab2b The part angle deviates from the reference value.
[Cause]
The angle of the inspected part deviates from that of the reference part by more than
±30°.
[Measures]
After checking the information of the registered part, check the pickup height.
1.3.5. VC related error[ac00 ~ ac14]
$ac07 The part width recognized is different from the reference value.
[Cause]
The part width recognized is greater or lesser than the allowable value.
[Measures]
Check whether the registered part information corresponds to the picked part and
check the allowable error.
1-54
Next Generation, Multi-Functional Placer DECAN S1 Troubleshooting Guide

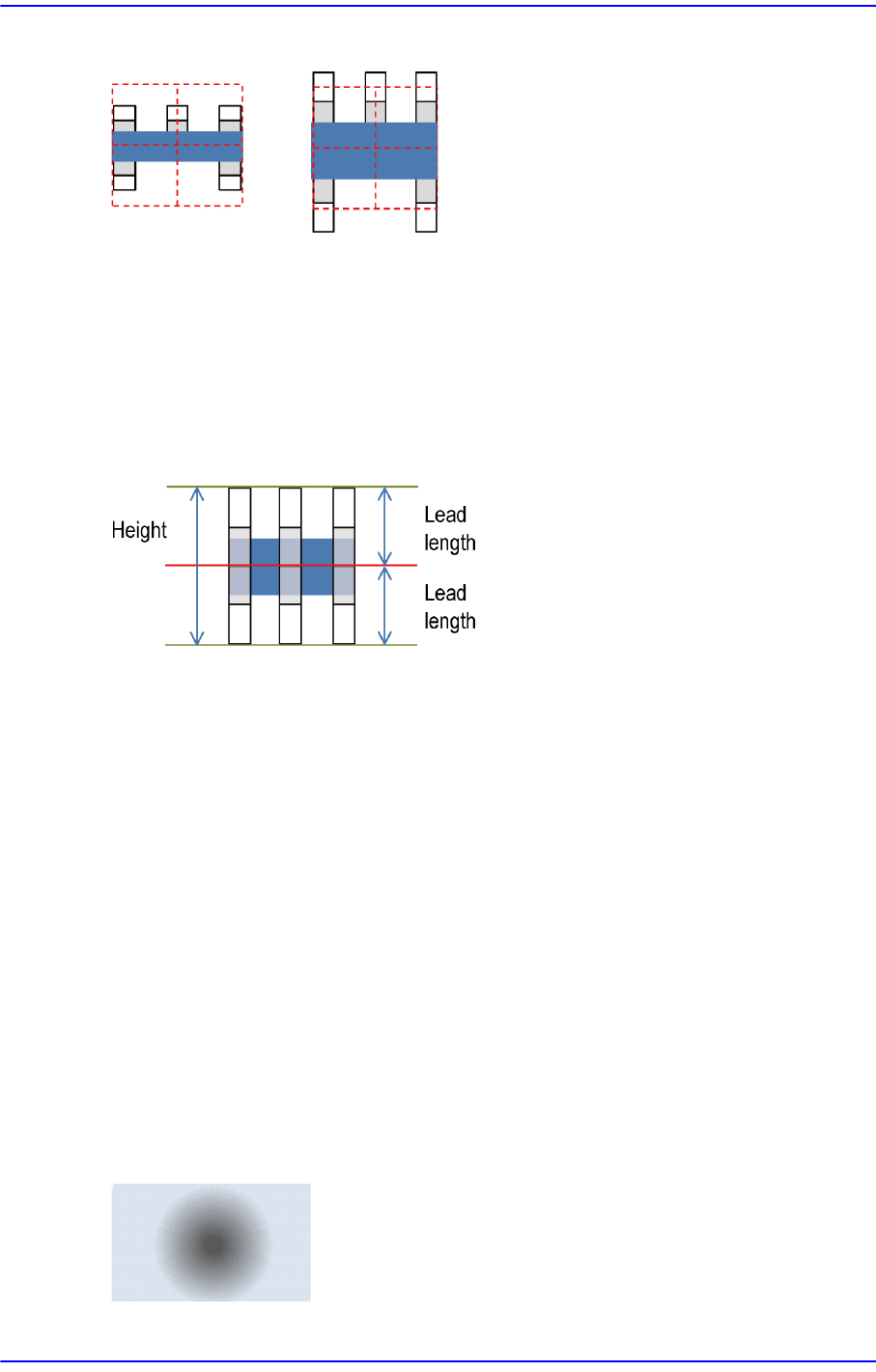

$ac08 The part height recognized is different from the reference value.
[Cause]
The part height recognized is greater or lesser than the allowable value.
[Measures]
Check whether the registered part information corresponds to the picked part and
check the allowable error.
$ac11 The part size is too small and the lead length is set to be too long.
[Cause]
The sum of the upper and lower lead lengths is higher than the entire part height.
[Measures]
Check the registered part information. If necessary, adjust the entire height of the part.
1.3.6. Fiducial related error[ae03 ~ ae16]
$ae04 The score of the fiducial mark to be recognized is less than the input score.
[Cause]
The score of the measured fiducial mark is less than the reference score.
[Measures]
Check the state of the fiducial mark. If necessary, adjust the score value or
illumination value.
$ae05 Cannot find the fiducial mark edge.
1-55
System Messages of the MMI and Solutions
[Cause]
The image is dim or blurred due to incorrect focus.
No difference in brightness between the fiducial mark and its surrounding.
[Measures]
Check the state of the fiducial mark.
Adjust the threshold value or illumination value.

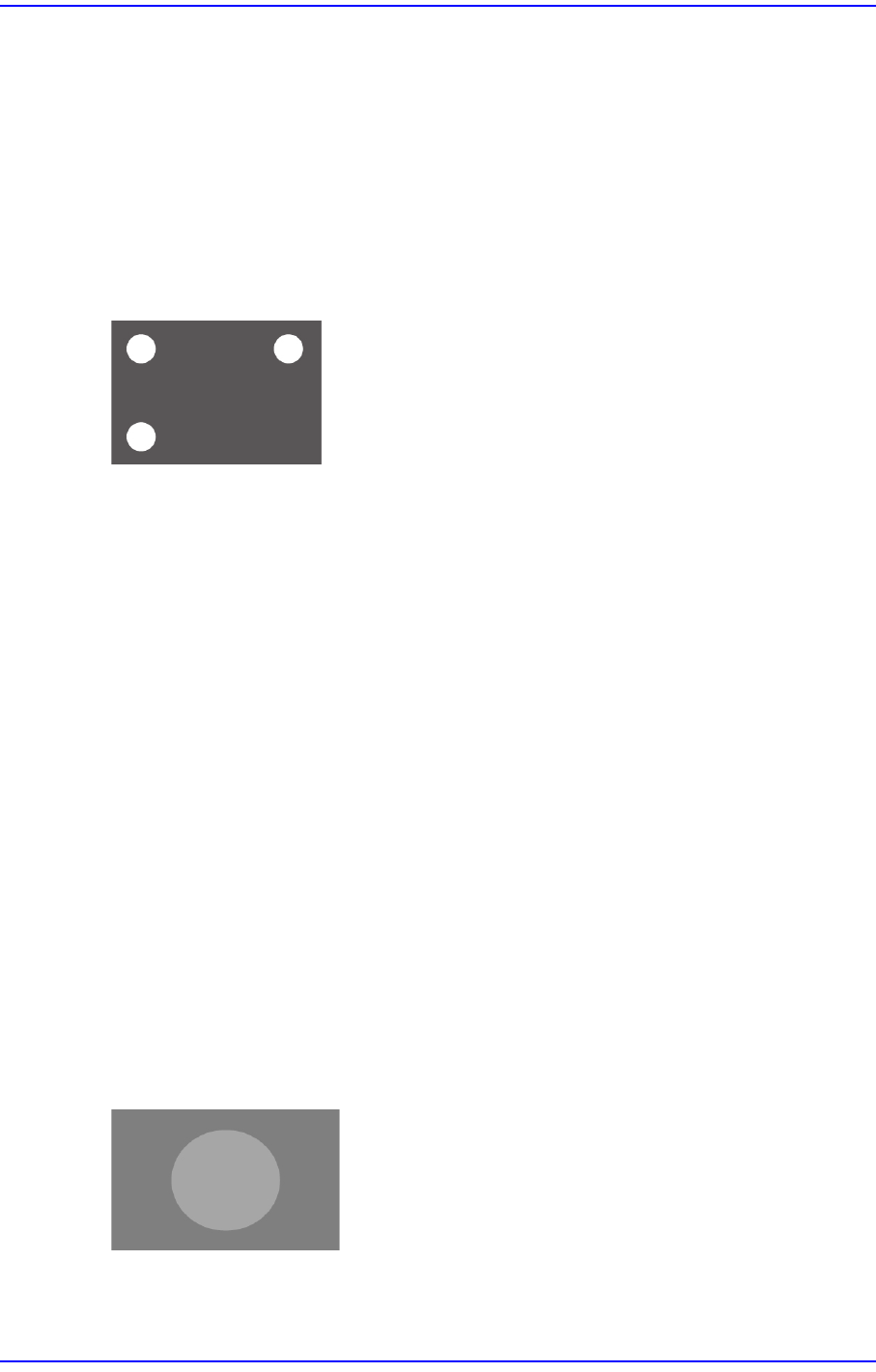

$ae06 Too many fiducial mark candidates
[Cause]
Several fiducial marks exist in one screen.
[Measures]
Adjust the fiducial mark inspection area.
$ae09 Failed to train since the size of the input fiducial is small
[Cause]
The fiducial mark size is less than 100µm.
[Measures]
Set the fiducial mark larger than 100µm.
$ae10 Failed to train since the size of the input fiducial is very large
[Cause]
The fiducial mark size is greater than 6 mm.
[Measures]
Set the fiducial mark less than 6 mm.
$ae12 The fiducial center was found. However, it has failed to check the final contrast.
[Cause]
