Samsung SM-Series Pneumatic Tape Feeder Users' Manual

 Handle the joint with care

Handle the joint of the tape feeder with care in order to secure the performance and

function of the feeder. If the feeder is dismantled carelessly, the performance and

function of the feeder may not be guaranteed.

 Handle the cover with care

Handle the cover for the electronic circuit board and wiring with care. If the cover is

dismantled carelessly, the performance and function of the feeder may not be

guaranteed.

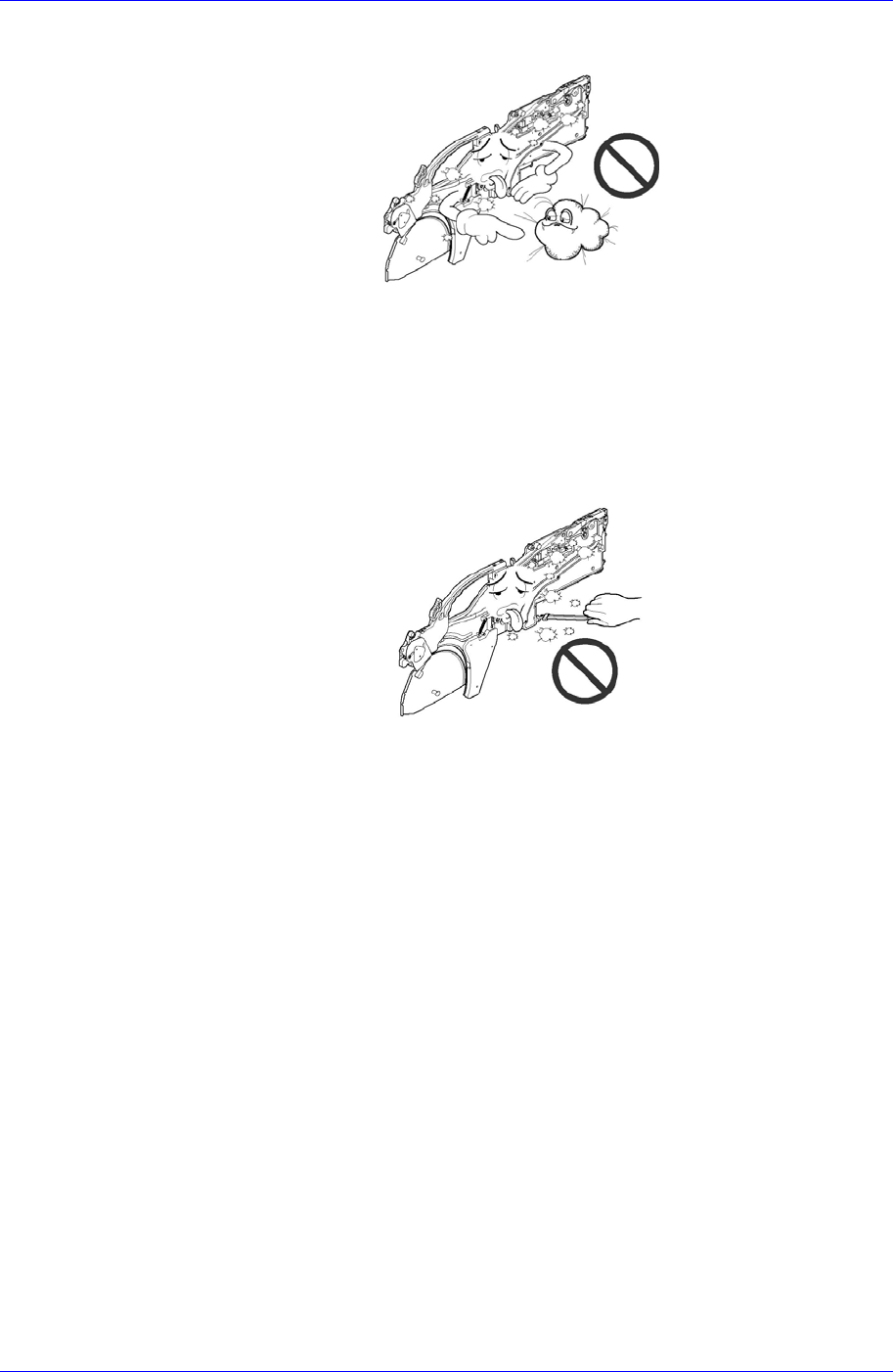

 Cautions to be taken when supplying air

If air contaminated by dust, oil particles, moisture, etc. is supplied to the feeder or

Handle with care while moving

Handle the joint with care

Handle the cover with care

Preface

vii

feeder related parts, it may seriously impact the feeder quality.

 Handle the terminals with care

If terminals are damaged or smeared with foreign matter, the feeder may not operate

properly. Moreover, if a different power supply is connected, the feeder may be

damaged.

 Handle the serial number plate with care

If the serial number plate is damaged or lost due to carelessness during handling, after

sales service of the feeder may be difficult to obtain. Handle it with care.

Cautions to be taken when supplying air

Handle the terminals with care

Samsung SM-Series Pneumatic Tape Feeder Users' Manual

viii

 Cautions when handling reel plate

When the reel plate is bent by force with the feeder being installed in the feeder base,

it cannot return to the original state, causing a problem when feeding a part and

replacing a feeder. Therefore, do not bend the reel plate by force with the feeder

being installed in the feeder base.

Cautions when handling reel plate
