Samsung SM-Series Pneumatic Tape Feeder Users' Manual
viii

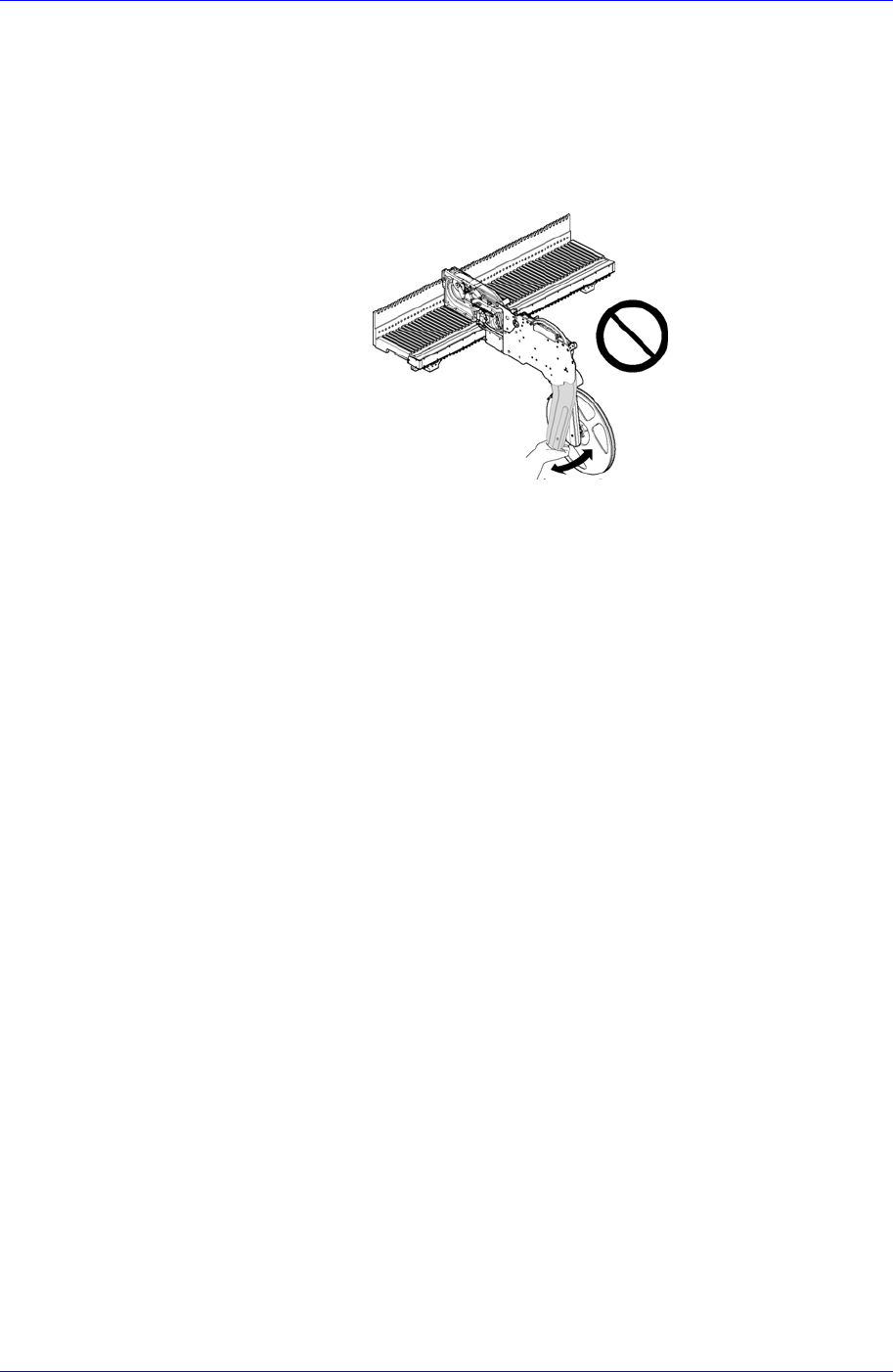

Cautions when handling reel plate
When the reel plate is bent by force with the feeder being installed in the feeder base,
it cannot return to the original state, causing a problem when feeding a part and
replacing a feeder. Therefore, do not bend the reel plate by force with the feeder
being installed in the feeder base.
Cautions when handling reel plate
Overview
1-1
Chapter 1. Overview
1.1. Configuration and name of feeder
1.1.1. SM 8mm Tape Feeder
(1) Clamping Lever (2) Drain Section (3) Manual Feeding Lever
(4) Control Section (5) Tape Guide (6) Reel Holding Section
(7) Indexing Section (8) Shutter (9) Clamping Section
(10) Dump Box
Figure 1-1. Configuration of the SM 8mm tape feeder
(7)
(2)
(5)
(10)
(8)
(9)
(3)
(1)
(4)
(6)
Samsung SM-Series Pneumatic Tape Feeder Users' Manual
1-2
1.1.2. SM 12mm/16mm Tape Feeder
(1) Clamping Lever (2) Drain Section (3) Manual Feeding Lever
(4) Control Section (5) Tape Guide (6) Reel Holding Section
(7) Indexing Section (8) Shutter (9) Clamping Section
(10) Pitch Control Section
Figure 1-2. Configuration of the SM 12mm/16mm tape feeder
(4)
(3)
(9)
(6)
(8)
(2)
(7)
(10)
(1)
(5)
