Overview 1-3 1.1.3. SM 24~88mm T ape Feeder (1) Clamping Lever (2) Status Indicating Section (3) Vinyl Box Section (4) Drain Section (5) Manual Feeding Lever (6) Control Section (7) Tape Guide (8) Reel Holding Section (9…
Samsung SM-Series Pneumatic Tape Feeder Users' Manual
1-2
1.1.2. SM 12mm/16mm Tape Feeder
(1) Clamping Lever (2) Drain Section (3) Manual Feeding Lever
(4) Control Section (5) Tape Guide (6) Reel Holding Section
(7) Indexing Section (8) Shutter (9) Clamping Section
(10) Pitch Control Section
Figure 1-2. Configuration of the SM 12mm/16mm tape feeder
(4)
(3)
(9)
(6)
(8)
(2)
(7)
(10)
(1)
(5)
Overview
1-3
1.1.3. SM 24~88mm Tape Feeder
(1) Clamping Lever (2) Status Indicating Section (3) Vinyl Box Section
(4) Drain Section (5) Manual Feeding Lever (6) Control Section
(7) Tape Guide (8) Reel Holding Section (9) Indexing Section
(10) Vinyl Removal Position
Control Section
(11) Clamping Section (12) Pitch Control Section
Figure 1-3. Configuration of the SM 24~88mm tape feeder
(7)
(4)
(6)
(2)
(
11
)
(10)
(3)
(1)
(8)
(5)
(9)
(12)
Samsung SM-Series Pneumatic Tape Feeder Users' Manual
1-4
1.1.4. Feeder Base
Feeder base boards are attached on the left side and right side under the front of the feeder
base, supplies power to the SM feeder and receives input and output signals from the
feeder. Pressurized air is supplied from the air couplers with the same number of slots
under the feeder base board.

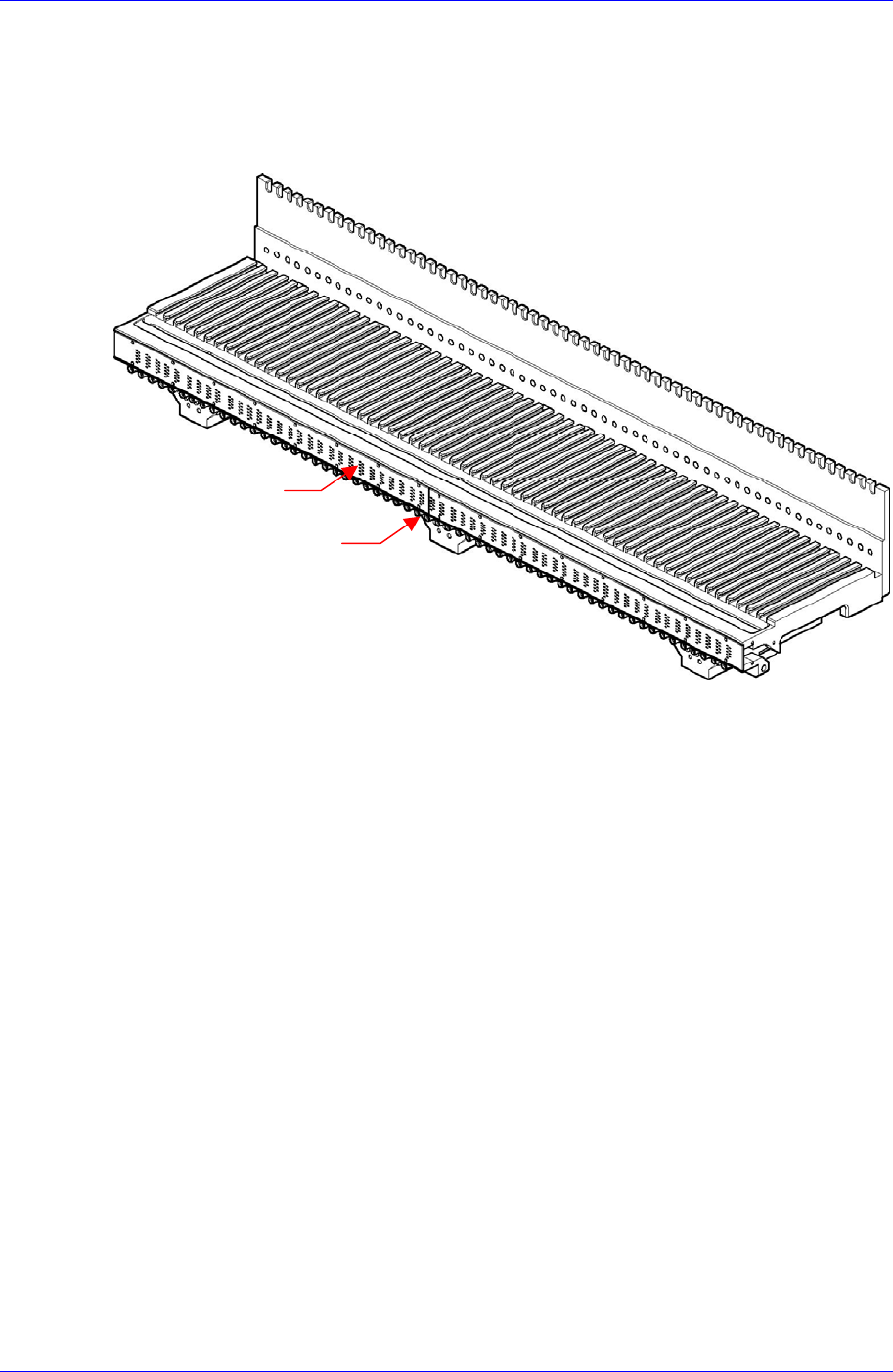

Figure 1-4. Configuration of the Feeder Base
Feeder Control Board
Air Couple
r
