2.1.5. Fixing the Upper Cover Tape
8mm Tape Feeder
Fix the upper cover tape guide protruding from the tape separation slot. Put the SM
8mm tape feeder between the drain gear and forming gear while loading the upper
cover tape protruding from the tape guide separation slot on rollers A and B.
At this time, tightly pull the upper cover tape, position it between the afore-
mentioned two gears, and fix the upper cover tape. At this time, turn the drain gear
counterclockwise and pull it tight
Caution
When the upper cover tape passes roller B or passes
between the drain gear and forming gear, make it pass
flatly without folding or jumping over the roller or gear.
Take care as problems like vinyl rolling will transpire if
folding or deviation beyond the drain gear occurs.

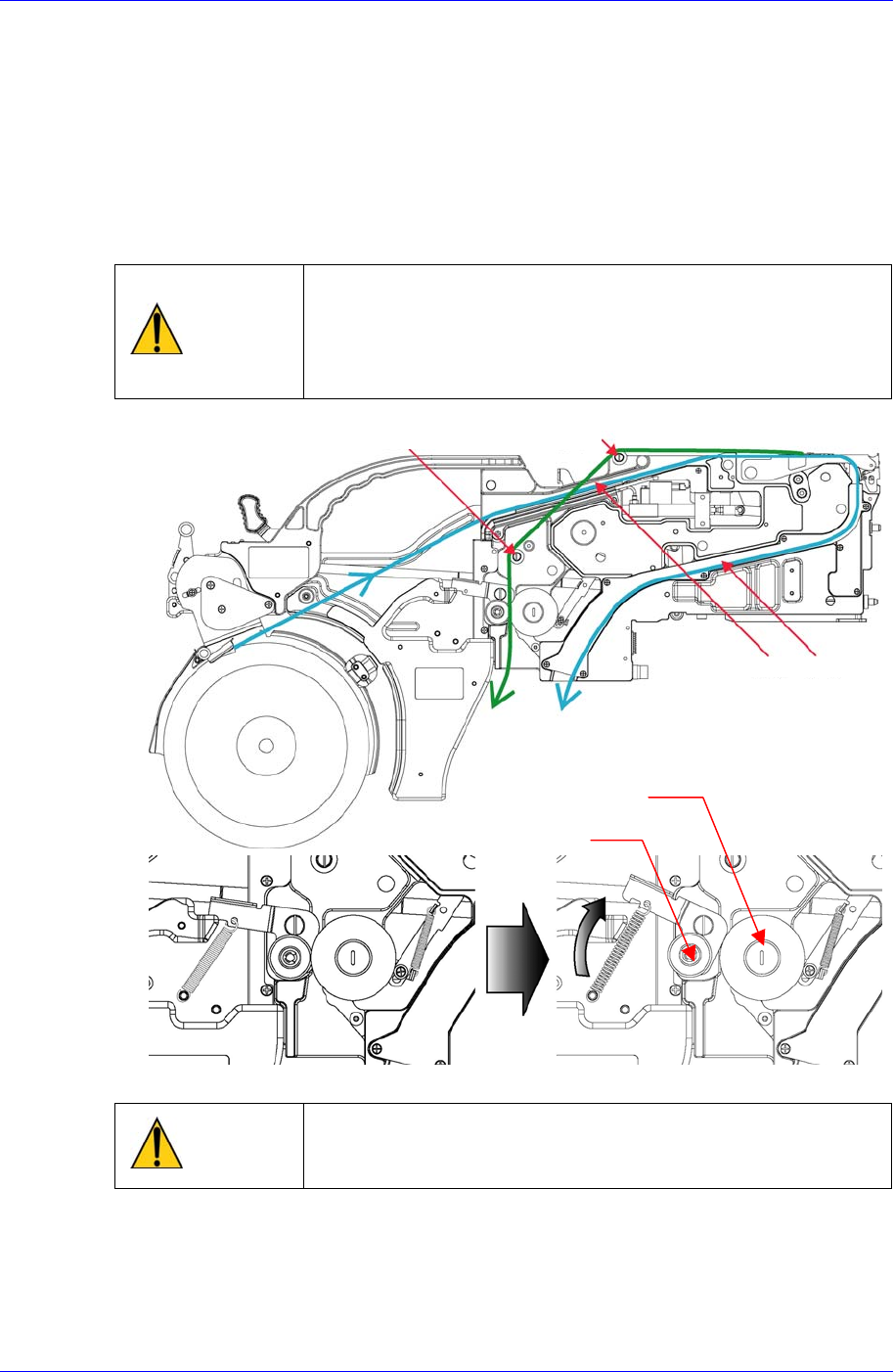

Figure 2-15. Method of fixing upper cover tape in the roller and gear (SM 8mm tape feeder)
Caution
When the cover tape is fixed, be careful so that fingers
don’t get stuck between the forming gear and the drain
gear as the forming gear receives force from the spring.
12~16mm Tap Feeder
When placing the cover tape, be mindful of the direction of the cover tape as shown
in the figure, and ensure that the adhesive surface (surface attached to the
transportation tape) of the cover tape faces the direction of the forming gear.
Forming Gea
r
Drain Gea
r
Roller B
Roller A
Groove A
Groove B
Operation of the Tape Feeder
2-11
Position the SM 12mm~16mm tape feeder between the drain gear and forming gear
while loading the upper cover tape protruding from the tape separation slot on rollers
A and B. The remaining procedure is identical to that of the SM 8mm tape feeder.

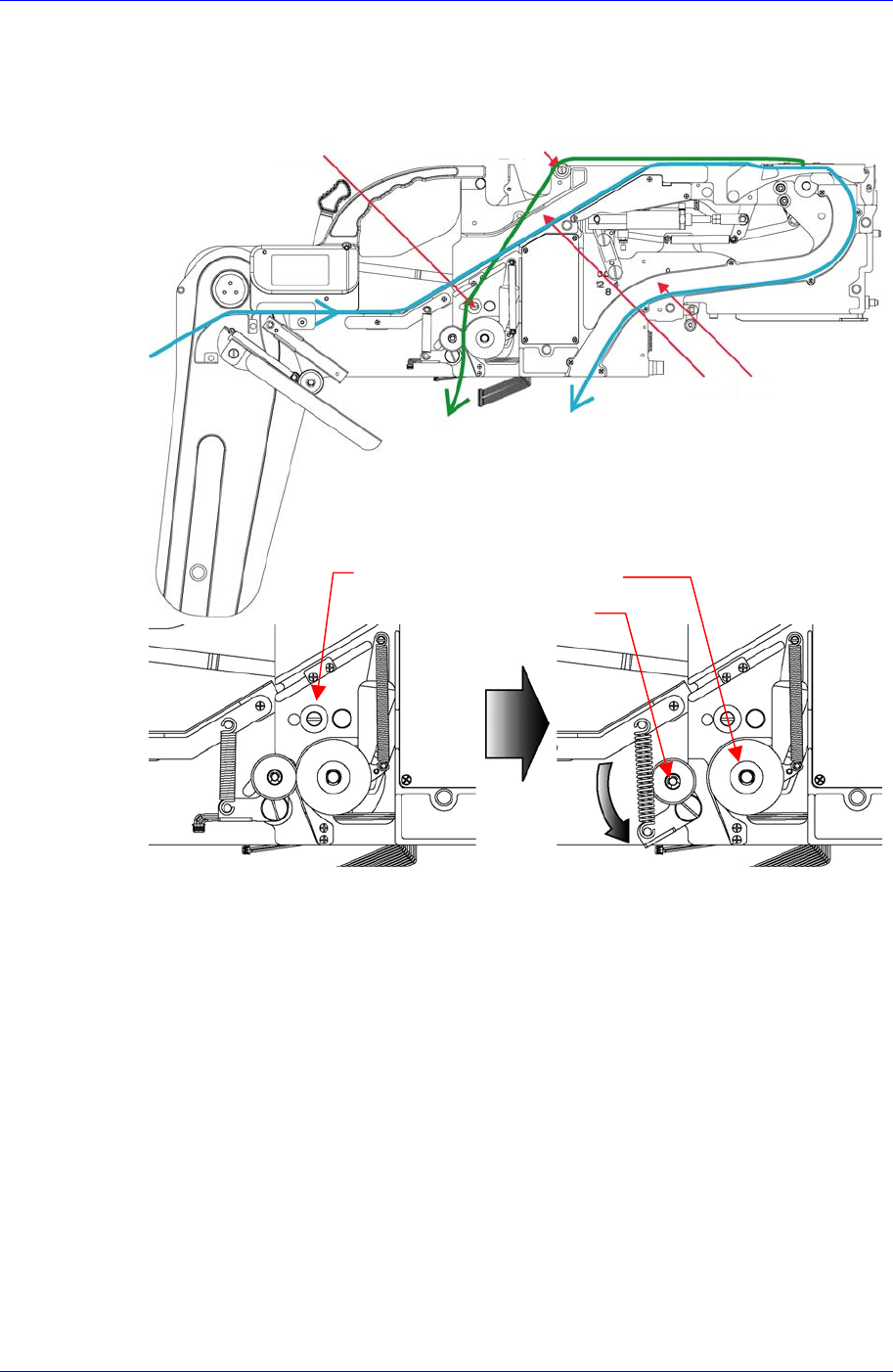

Figure 2-16. Method of fixing upper cover tape in the roller and gear (SM 12mm~16mm tape
feeder)
24~88mm Tape Feeder
When placing the cover tape, be mindful of the direction of the cover tape as shown
in the figure, and ensure that the adhesive surface (surface attached to the
transportation tape) of the cover tape faces the direction of the Pressing gear.
Position the SM 24mm~88mm tape feeder between the drain gear and Pressing gear
while loading the upper cover tape protruding from the tape separation slot on roller
A.
At this time, place the upper cover tape between the above two gears, and secures the
tape, making sure it is pulled tight. Then pull the upper cover tape tight with one hand
and turn the pressing gear clockwise to pull the tape into a taut position.
Roller B
Forming Gea
r
Drain Gear
Roller B
Roller A
Groove A
Groove B
Samsung SM-Series Pneumatic Tape Feeder Users' Manual
2-12
Figure 2-17. Method of fixing upper cover tape in the roller and gear (SM 24mm~88mm tape
feeder)
Pressing Gea
r
Roller A
Groove A
Groove B
