Operation of the T ape Feeder 2-13 If the vinyl box is filled with the upper cove r tape (vinyl tape), the magnet moves up automatically to open the vinyl box cover. Take out the upper cover tape and cut it with the viny…
Samsung SM-Series Pneumatic Tape Feeder Users' Manual
2-12

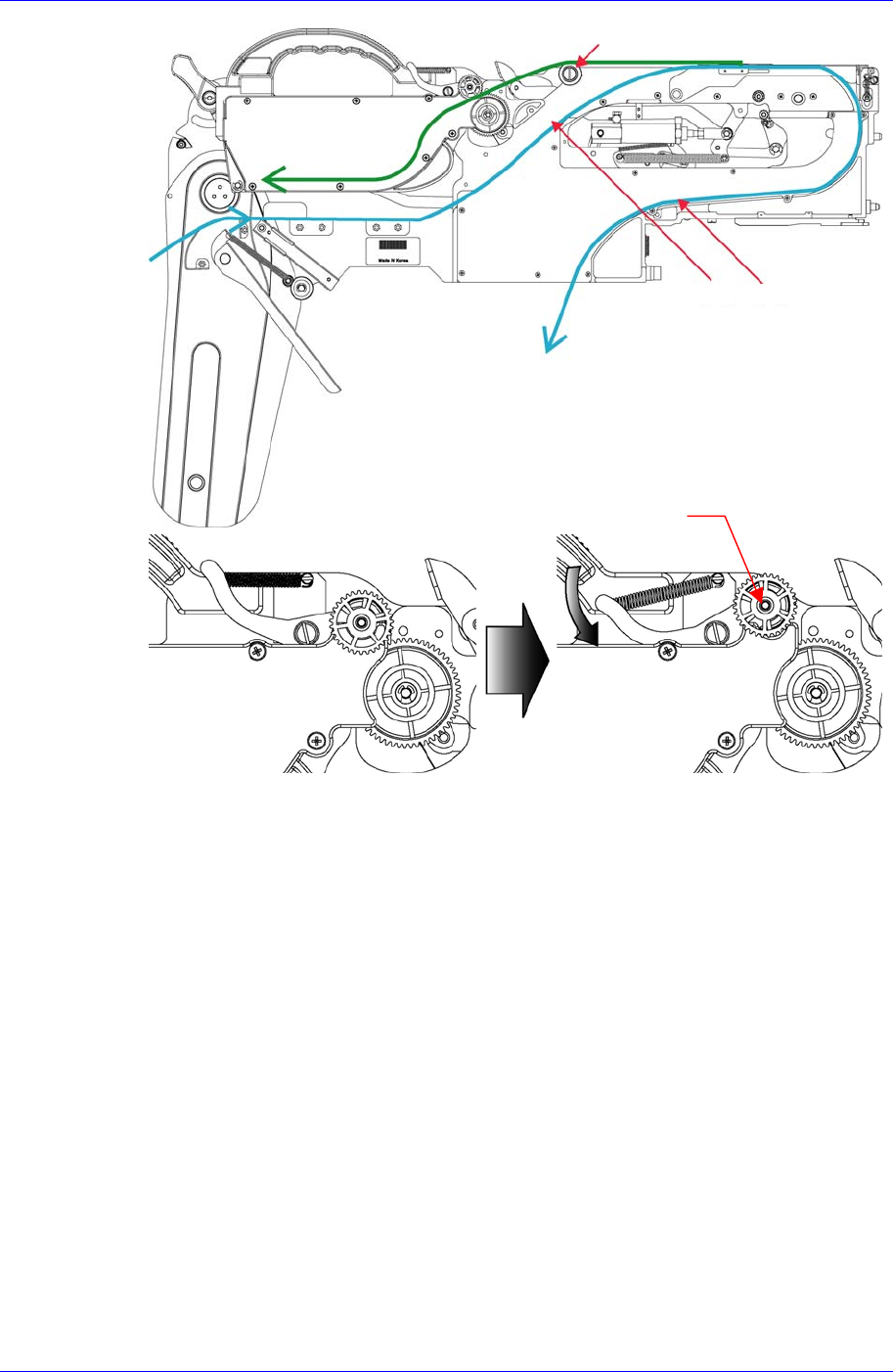

Figure 2-17. Method of fixing upper cover tape in the roller and gear (SM 24mm~88mm tape
feeder)
Pressing Gea
r
Roller A
Groove A
Groove B
Operation of the Tape Feeder
2-13
If the vinyl box is filled with the upper cover tape (vinyl tape), the magnet moves up
automatically to open the vinyl box cover. Take out the upper cover tape and cut it
with the vinyl cutter at the back of the main frame and then close the vinyl box cover.

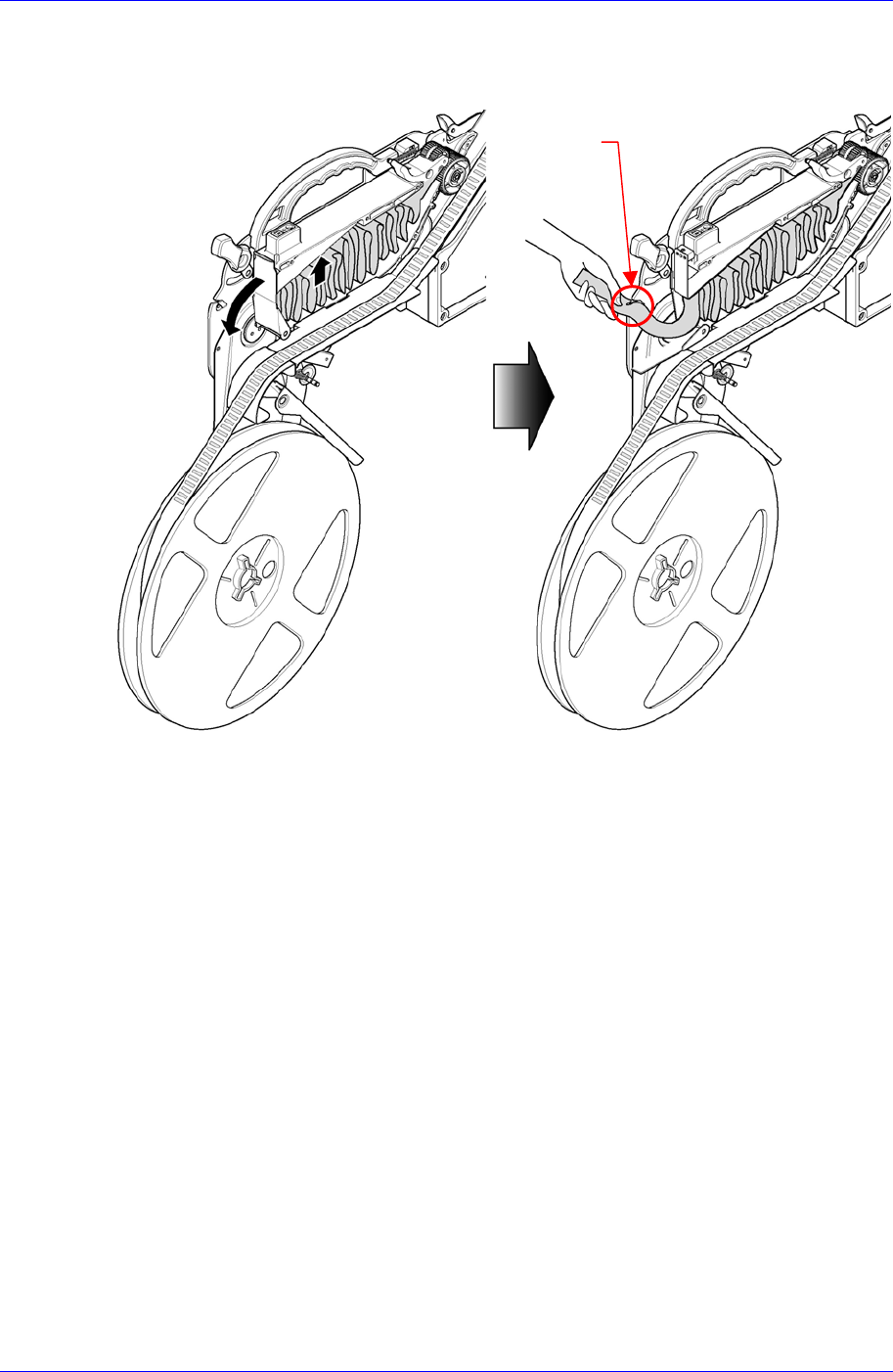

Figure 2-18. How to cut the upper cover tape (SM 24mm~88mm Tape Feeder)
Vinyl Cutte
r
Blade
Samsung SM-Series Pneumatic Tape Feeder Users' Manual
2-14

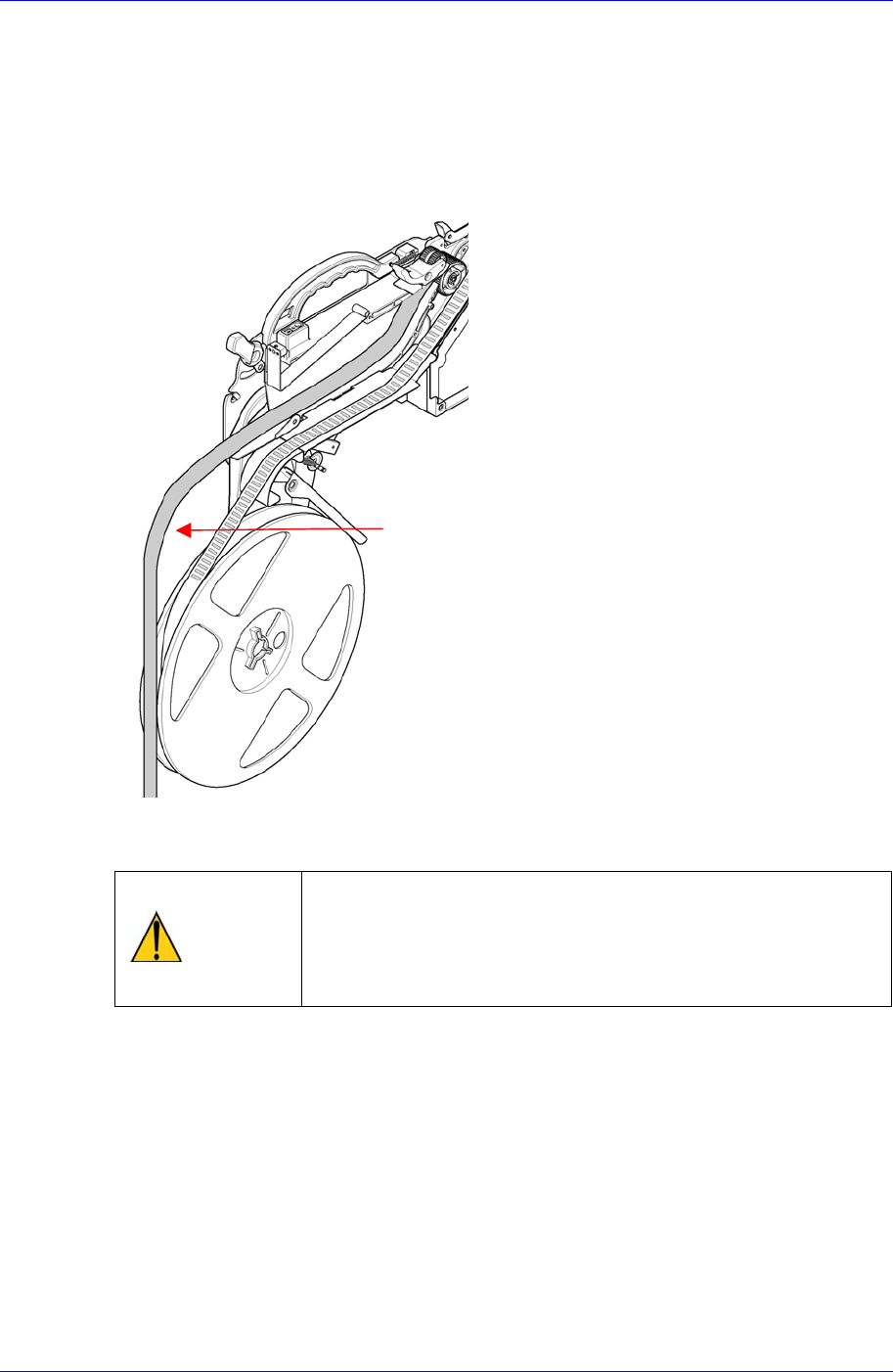

If the upper cover tape is used in the limitless discharge mode, exercise care so that the
tape is not curled up.
When upper cover tape is not discharged smoothly in the vinyl box since the upper cover
tape is highly adhesive, the vinyl is thin, or static electricity occurs, it is recommended to
use the upper cover in the limitless discharge mode. In addition, if the part dump rate
increases abnormally in the 24~88mm feeder, first check if it there is any problem with
applying the discharge method and contact our CS department.
그림
2-1. How to cut the upper cover tape (SM 24mm~88mm Tape Feeder)
Caution
Check if the upper cover tape flows down smoothly passing
between the covers at both sides of the part roller after it comes
out to the rear side of the vinyl box. Particularly, if the cover tape
is highly adhesive, it may be stuck to the inner side of the vinyl
box or curled up being stuck on the roll. Therefore, exercise care.
Upper Cover Tape
