Operation of the Tape Feeder

2-19

and part length may be helpful for the stable part supply. When there is a job change, the

part loss is minimized because the number of parts whose vinyl cover is removed in the

feeder is reduced. When adjusting the shutter position, unscrew the bolts (2 sets) at one

side of the feeder slightly as shown in the following figure and adjust the shutter position

by hand. Then secure the bolt again.

Secure the shutter by maintaining appropriate distance between the part and shutter so

that a part is not caught by vinyl tape during part pickup considering the pitch and part

size as shown in the following figure.

폐비닐

(1) For Part with 8mm Pitch

(2) For Part with 32mm Pitch

Shutter Fixing Bolt

Waste Vinyl

Samsung SM-Series Pneumatic Tape Feeder Users' Manual

2-20

2.3. Installing the tape feeder on the feeder base

Contact the feeder at the desired slot of the feeder base, and insert the feeder keeping the

installation guide accurately inserted in the feeder base slot. At this time, when the feeder

location pin located at the lower front of the feeder and vertical plate of the feeder base is

contacted, fix to the feeder base inserting grip.

Warning

When installing the feeder on the feeder base of the

machine, not checking whether the machine is in idle

status could cause severe injury. Be sure to check to see

if the machine operation mode is idle before installing the

feeder.

Caution

Since a large feeder is relatively heavy, special care is

required when transporting, installing, and removing it.

When installing the feeder in the feeder base or removing

it from the feeder base, use both hands. When

transporting and moving the feeder, exercise care to avoid

colliding with any object or person.

The method of installing SM 8mm~16mm feeder at the feeder base is as follows.

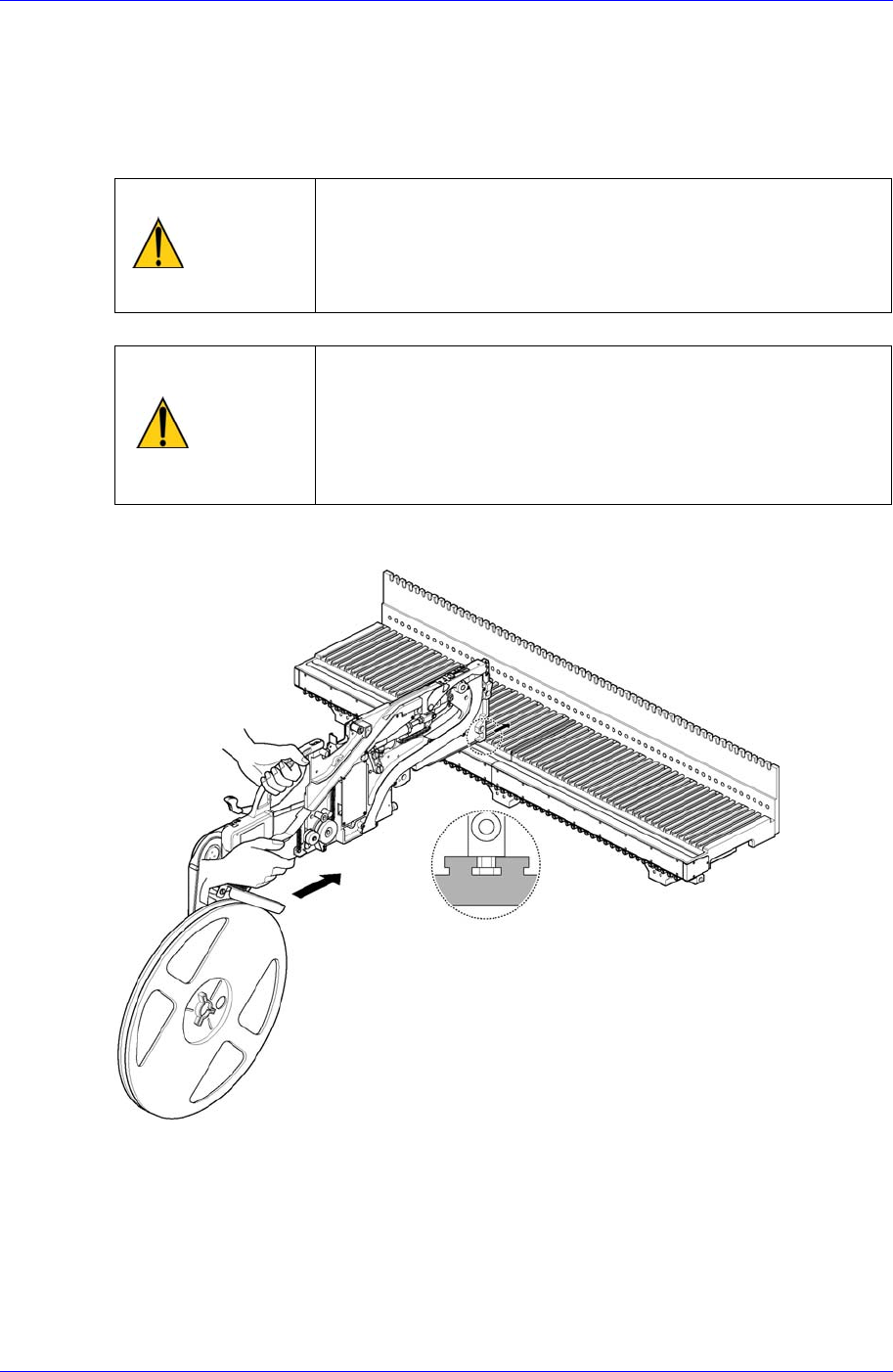

Figure 2-24. Inserting on the feeder base of the 8mm~16mm tape feeders

Each slot of the feeder base has its own slot number. After confirming the slot number of

the required feeder base, insert the SM feeder into the slot, and push the feeder with

adequate force until the location pin at the lower front of the feeder and vertical plate of

the feeder base contact each other..

When inserting the SM feeder into the feeder base, hold the rear part of the handle and

push the SM feeder as shown in the above figure.

Operation of the Tape Feeder

2-21

Figure 2-25. Locking on the feeder base of the 8mm,12mm,16mm SM feeders

Pushing the grip forward, fix the feeder to the feeder base. At this time, confirm if the

feeder is firmly fixed to the feeder base.

In the case of 12mm and 16mm tape, pay attention to the slot number while inserting the

feeder into the feeder base as the feeder location pin is at the left side when viewed from

above the feeder.
