World Class 3D Solder Paste Inspection
New Generation
Pattern Recognition &
Ma c h in e I n t e ll i g en ce

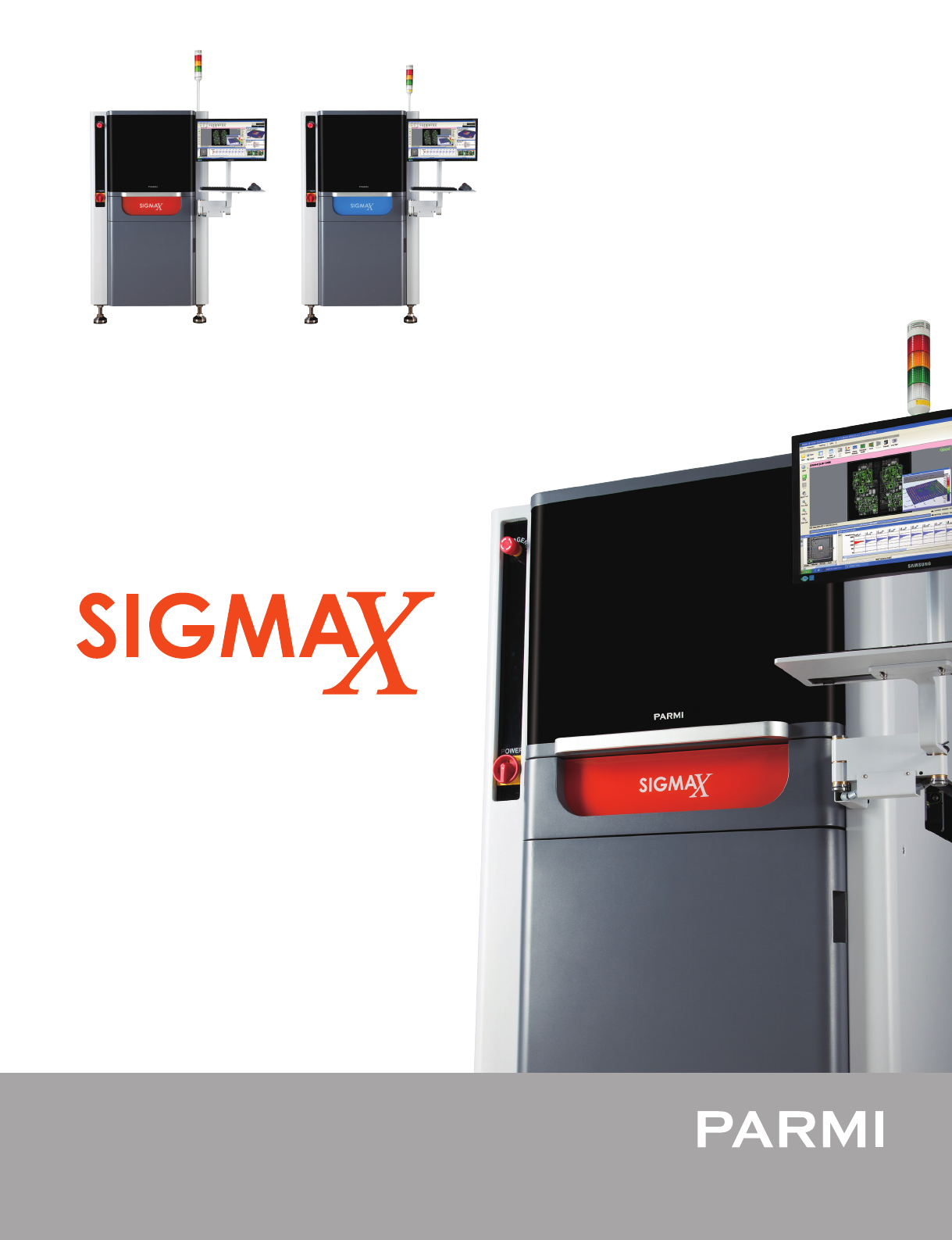

SIGMA XSIGMA X
New Generation
World Class 3D Solder Paste Inspection
• PARMI’s inspection technology is unaffected
by varying materials, surface conditions or
colors. The system profiles the board to
generate accurate 3D shapes far superior to
other brands and technologies.
• Conveyor speeds up to 1000mm/sec
• Loading /Unloading time minimization
• 3 ~ 4 sec improvement compared with
HS60 using the same board inspection
Unit : Second
222 x 274 mm 189 x 173 mm
RSC 6
25~30%
UP
RSC 7
• Fastest Inspection speed and Highest
Measurement reliability
• Inspection speed increased by 25 ~ 30% over
RSC 6
*
SIGMA X Orange : 100cm
2
/sec @ 10x10µm
*
SIGMA X Blue : 60cm
2
/sec @ 10x10µm
RSC 7 Sensor
Real 3D Image
Improve Board Transfer Sequence
Warpage Tracking in Real Time
• The system identifies total board warpage up
to 10mm(±5mm) and the exclusive Z Axis
motion control system maintains optimal
depth of focus while measuring Warpage.
Z axis tracking in real time
• Managed by comparing the board image and Gerber Data,
fiducial coordinates and printed material offsets are
identified and communicated to upstream and downstream
processes supporting closed loop control.
• Innovative whole board scanning uniquely delivers precise
measurement of both the board surface and solder deposits.
• Steel castings and linear glass encoders dampen vibration,
address temperature fluctuation and provide high accuracy
and repeatability.
• Dual laser projection eliminates all
shadowing and produces the highest
level of measurement accuracy.
Using a high frame CMOS camera the
system realizes the 3D shape of the
entire board scanning area.

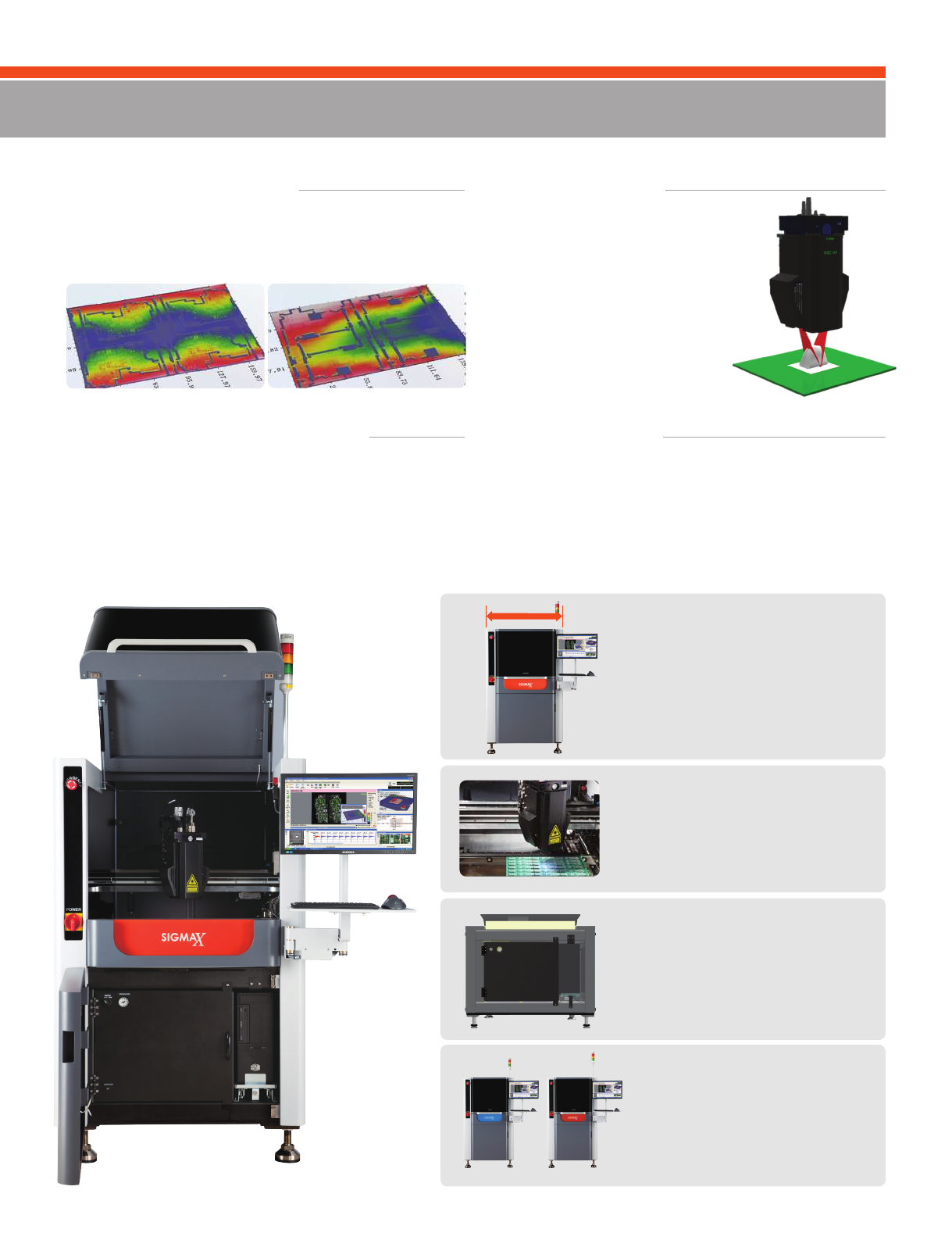

The Most Stable Platform
• Strong X/Y Stage and base frame
• Lightweight moving parts
• Most stable and fastest, vibration free
motion delivers high accuracy and
repeatability.
Electronic Components
Repositioned for Easier Access.
• Designed for front machine access
providing quick and easy access to the
operating system.
• Slide rail for PC makes you access to
back-side of machine easily.
All New Cover Design
• Refined and luxurious exterior
• Simple monitor console.
• Most external switches are eliminated.
Ultra-SLIM Footprint
• Efficient use of the inside space of the
machine.
• RSC 7 size reduced.
• Effectively increasing the inspection
area and reducing the machine
dimensions simultaneously.
0.85m
PCB Stretch and Shrink Management
PCB Warpage Measurement
Highest Quality Parts
Dual Laser Projection
