PTS-XPFL-03JE - 第292页
DETAIL A11 XPF-L XPF-S XPF-L XPF-S XPF-L XPF-S XPF-L XPF-S ADEPJ8163 GAUGE MASTER Vision processing color test jig ADNPJ8103 BOX Nozzle Box ADEPJ8303 AGGPJ8100 BOX BOX Single Nozzle Box A1 A2 A3 A4 A5 A9 A6 A7 A8 A10 A1 …
Transport bracket for MTU-A
MTU-A 搬送固定用部品 AGGWZ9080
No. Drg.No. & Code No. QTY Description Rating Materials Remarks
番号 図番 & ｺｰﾄﾞ番号 個数 品名 規格 材質 備考
1 GGWZ0040 4 BKT ＢＫＴ FE
2 H5384A 8 BOLT, HEX SOCKET ボルト 六角穴 M12X025 FE
3 W1027A 8 WASHER, LOCK ワッシャ スプリング 12M/M FE
4 GGWZ0050 1 BKT ＢＫＴ FE
5 H5384A 2 BOLT, HEX SOCKET ボルト 六角穴 M12X025 FE
6 W1027A 2 WASHER, LOCK ワッシャ スプリング 12M/M FE
7 W1048A 2 WASHER, FLAT ワッシャ 平 4W-12 FE
8 GGWZ0060 1 BKT ＢＫＴ FE
9 H5384A 2 BOLT, HEX SOCKET ボルト 六角穴 M12X025 FE
10 W1027A 2 WASHER, LOCK ワッシャ スプリング 12M/M FE
11 W1048A 2 WASHER, FLAT ワッシャ 平 4W-12 FE
12 H5384A 2 BOLT, HEX SOCKET ボルト 六角穴 M12X025 FE
13 W1027A 2 WASHER, LOCK ワッシャ スプリング 12M/M FE
14 W1048A 2 WASHER, FLAT ワッシャ 平 4W-12 FE
291
PTS-XPFL-03JE
DETAIL A11
XPF-L
XPF-S
XPF-L
XPF-S
XPF-L
XPF-S
XPF-L
XPF-S
ADEPJ8163GAUGE MASTER
Vision processing color test jig
ADNPJ8103BOX
Nozzle Box
ADEPJ8303 AGGPJ8100BOX BOX
Single Nozzle Box
A1 A2 A3 A4
A5
A9
A6 A7 A8
A10 A11
A12
DEPJ0113
DEPJ0062
H3046E
AGGPJ8110
GGPJ0431
XPF-L
XPF-S
ADNPJ8030GAUGE MASTER
Vision processing color test jig
ADNPJ8040
DNPJ0380
H3046E
XPF-L
XPF-S
DEAJ1031 AGGTS8190GAUGE
Nozzle center calibration jig
XPF-L
XPF-S
ATTACHMENT
DEAJ1031

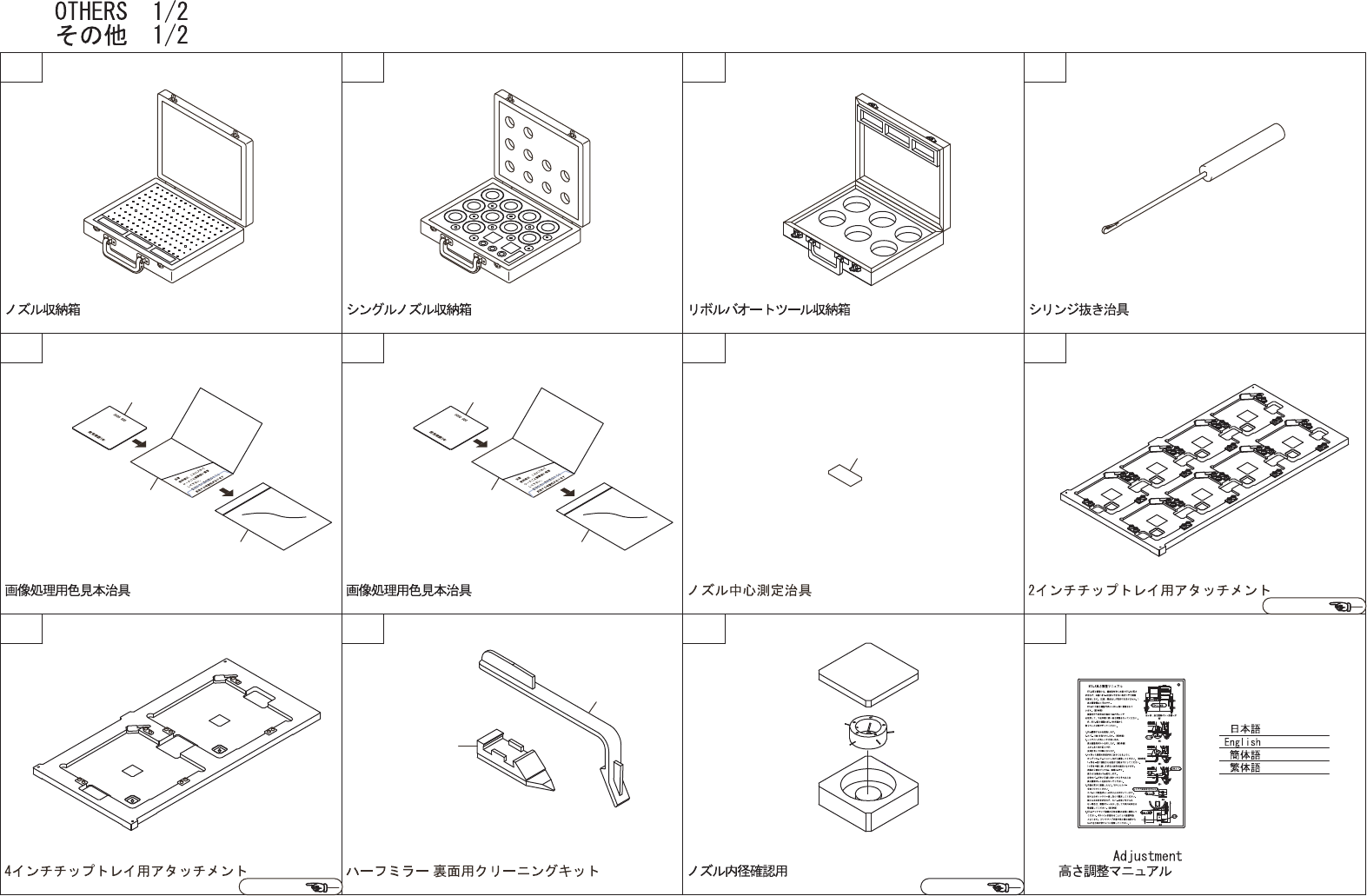

Revolver Auto-Tool Box
XPF-L
XPF-S
NEEDLE
Syringe removal jig
DETAIL A8
AGGTS8200
XPF-L
XPF-S
XPF-L
XPF-S
ATTACHMENT GAUGE
DETAIL A9
AGFPJ8100
Nozzle internal diameter check jig
XPF-L
XPF-S
MANUAL
GGTF7350
GGTF7360
GGTF7350
GGTF7350
MTU
MTU Height
WIPER ADNPJ8120
XPF-L
XPF-S
Half mirror cleaning kit for the back surface
N2150A
Attachment for 2-inch Chip Tray
Attachment for 4-inch Chip Tray
292
PTS-XPFL-03JE
CGPJ1540
PP01870
A13 A15A14 A16
A17 A18 A19 A20
A21 A22 A23 A24
CGPJ1530CUTTER
Splicing cutter
XPF-L
XPF-S
WIPER ADNPJ8010
XPF-L
XPF-S
Half mirror cleaning kit
DNPJ0260
ADNPJ8020
A4565T

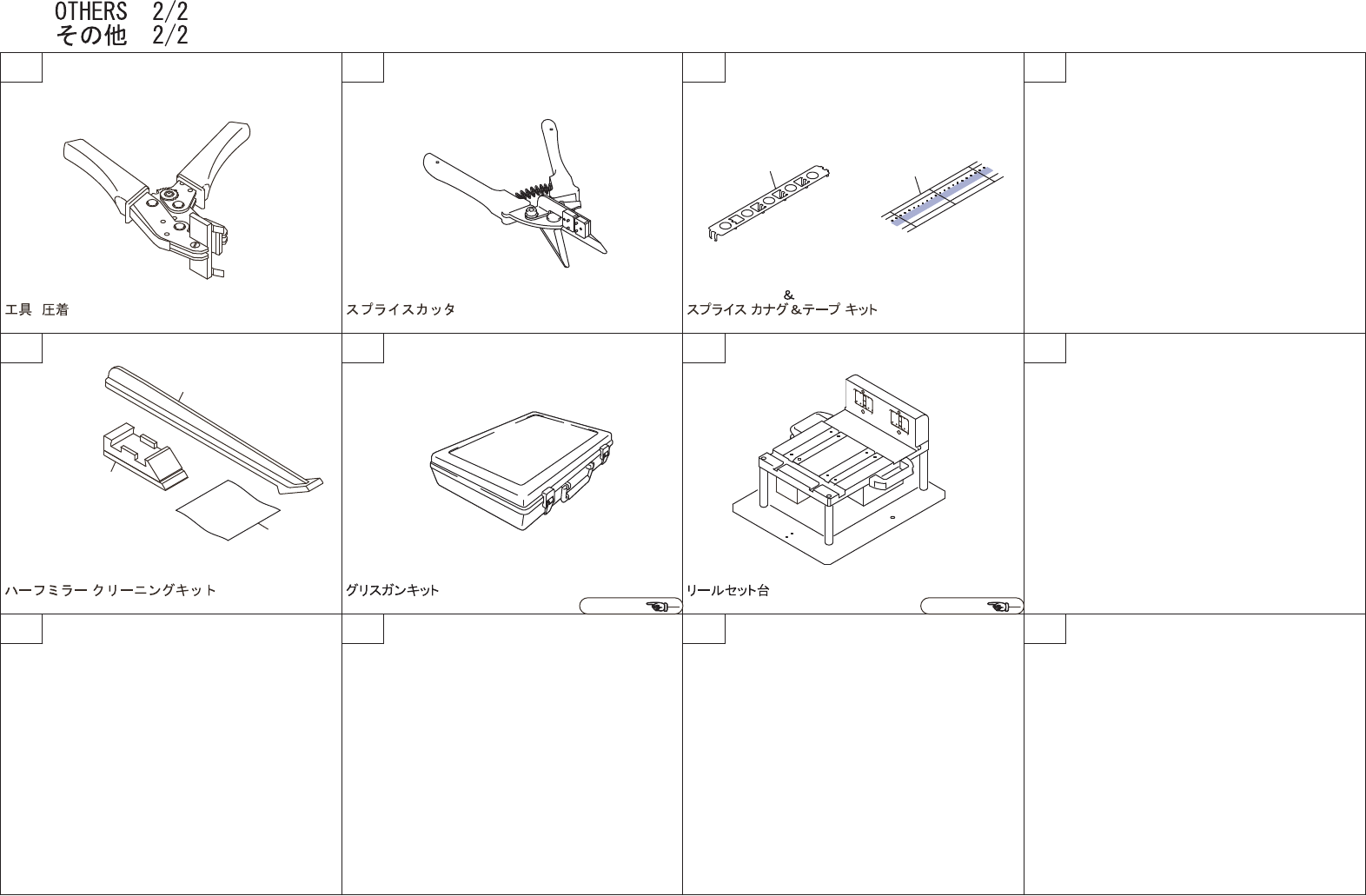

AA41B01TOOL, CRIMPING
Tool, crimping
ACGPJ8520
Splicing fixture
tape kit
JIG
AA87512JIG, INSPECTION
Feeder setting standFUJI grease gun kit
GUN, GREASE
XPF-L
XPF-S
DETAIL A18 DETAIL A19
XPF-L
XPF-S
XPF-L
XPF-S
AWPJ8202
293
PTS-XPFL-03JE
