12 DEK Horizon iX Printer Productivity Opti ons
11
DEK Horizon iX
Printer Productivity Options
Dual Lane Transport System
Specification
Minimum Distance between rails 2 and 3 (A)
DEK Manual Adjustable Dual Lane: 34.5mm #
DEK Manual Adjustable Dual Lane with edge clamp tooling:
100mm #
Available Distance between rails 1 and 3 (B)
251mm= SMEMA #
251.7mm= Siemens
ESD Compatibility
Black transport belts and guides with surface resistivity of
greater than 10
6
ohms.
Substrate Handling Size (minimum)
Single Lane: 50mm (X) x 40.5mm (Y)
Dual Lane: 50mm (X) x 40.5mm (Y)
Substrate Handling Size (maximum)
Single Lane: 620mm (X) x 450mm (Y)
Dual Lane: 620mm (X) x B-A (Y)
Table Top Size
237mm
Conveyor Height
830mm to 980mm
Transport Direction (print lane)
Left to Right
Right to Left
Left to Left
Right to Right
Transport Direction (pass thru lane)
Left to Right (factory configured)
Right to Left (factory configured)
Board Weight (maximum)
1kg
Print Lane Under Clearance
40mm
Board Thickness
0.2mm to 6mm
# See drawing on page 12 for details
12
DEK Horizon iX
Printer Productivity Options
13
DEK Horizon iX

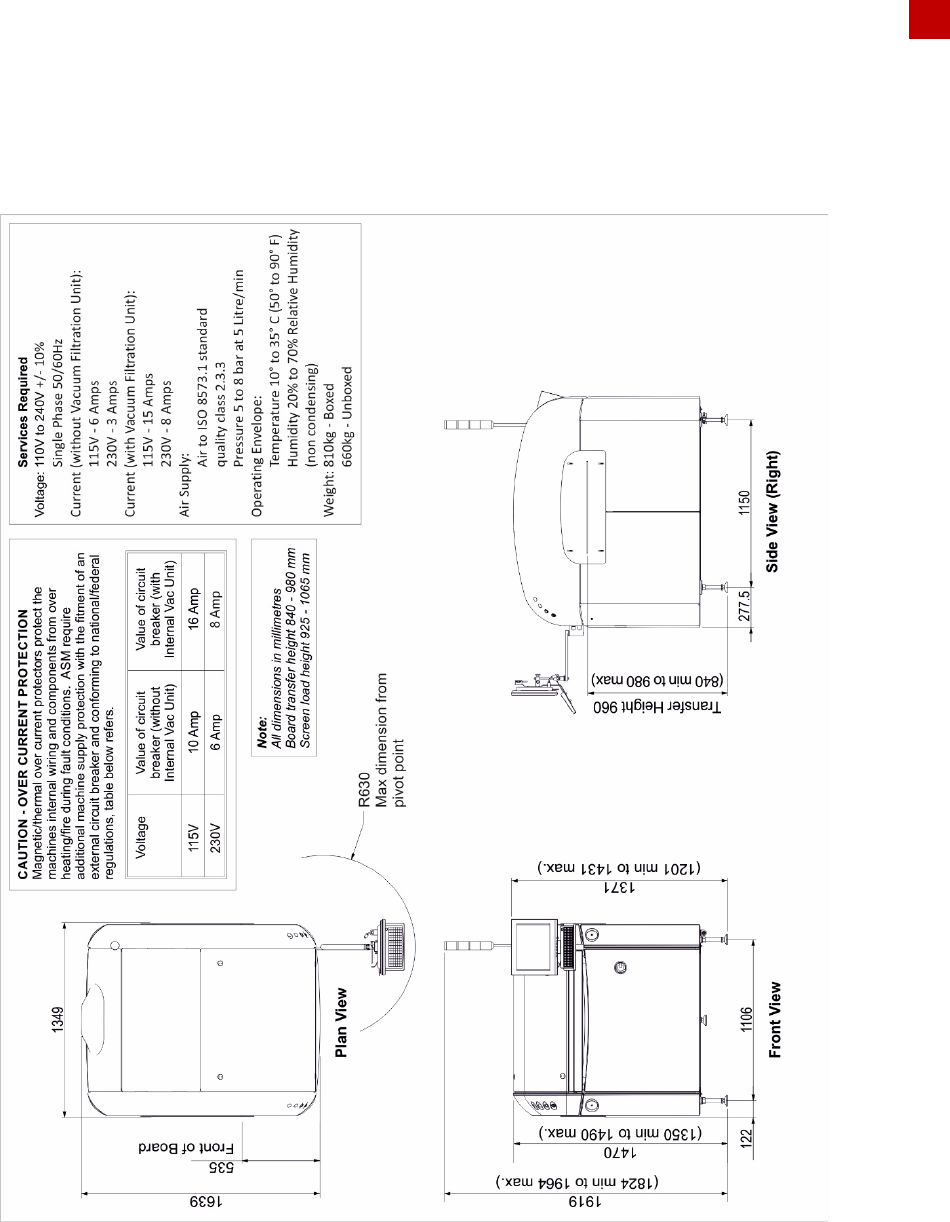

Printer Footprint Without HTC
